Version
40 LEDs
40 LEDs
Pole height
H 6,2 m
H 8,2 m
Dimming
Rated flux at 70%
Rated flux at 100%
Rated flux
6074 lm
8678 lm
Rated power
61 W
89,5 W
Luminaire efficacy
100 lm/W
97 lm/W
Interdistance
27 m
35 m
Street lighting cat.
M4/P3
M4/P3
Version
40 LEDs
16 LEDs
Pole height
H 6,2 m
H 6,2 m
Dimming
Rated flux at 68%
Rated flux at 85%
Rated flux
5901 lm
1615 lm
Rated power
59 W
14,9 W
Luminaire efficacy
100 lm/W
109 lm/W
Interdistance
28 m
28 m
Street lighting cat.
M4
P2/P3
Version
40 LEDs
16 LEDs
Pole height
H 8,2 m
H 6,2 m
Dimming
Rated flux at 100%
Rated flux at 88%
Rated flux
8678 lm
1482 lm
Rated power
89,5 W
13,6 W
Luminaire efficacy
97 lm/W
109 lm/W
Interdistance
35 m
35 m
Street lighting cat.
M4
P2/P3
Street
Two-way street
One-way
Fitting
installation
Before pedestrian crossings with respect to the direction of travel
Version
2 x 40 LEDs
40 LEDs
Pole height
H 6,2 m
H 6,2 m
% Dimming
Rated flux at 100%
Rated flux at 100%
Rated flux
2 x 8678 lm
8678 lm
Rated power
2 x 89,5 W
89,5 W
Luminaire efficacy
97 lm/W
97 lm/W
Street lighting cat.
EV2 30lux M3 and M4
EV2 30lux M3 and M4

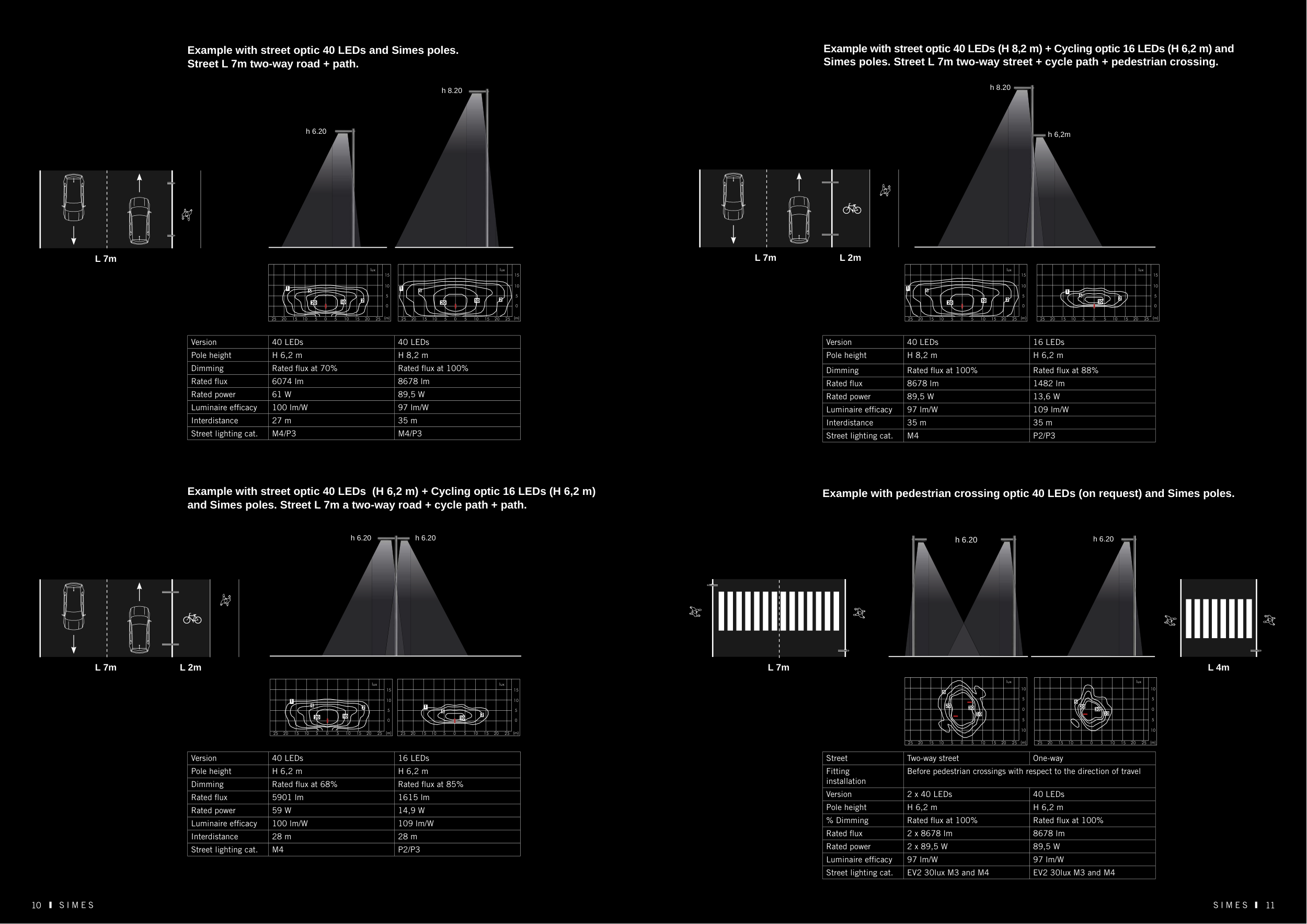

Example with street optic 40 LEDs and Simes poles.
Street L 7m two-way road + path.
Example with street optic 40 LEDs (H 8,2 m) + Cycling optic 16 LEDs (H 6,2 m) and
Simes poles. Street L 7m two-way street + cycle path + pedestrian crossing.
Example with pedestrian crossing optic 40 LEDs (on request) and Simes poles.
Example with street optic 40 LEDs (H 6,2 m) + Cycling optic 16 LEDs (H 6,2 m)
and Simes poles. Street L 7m a two-way road + cycle path + path.
