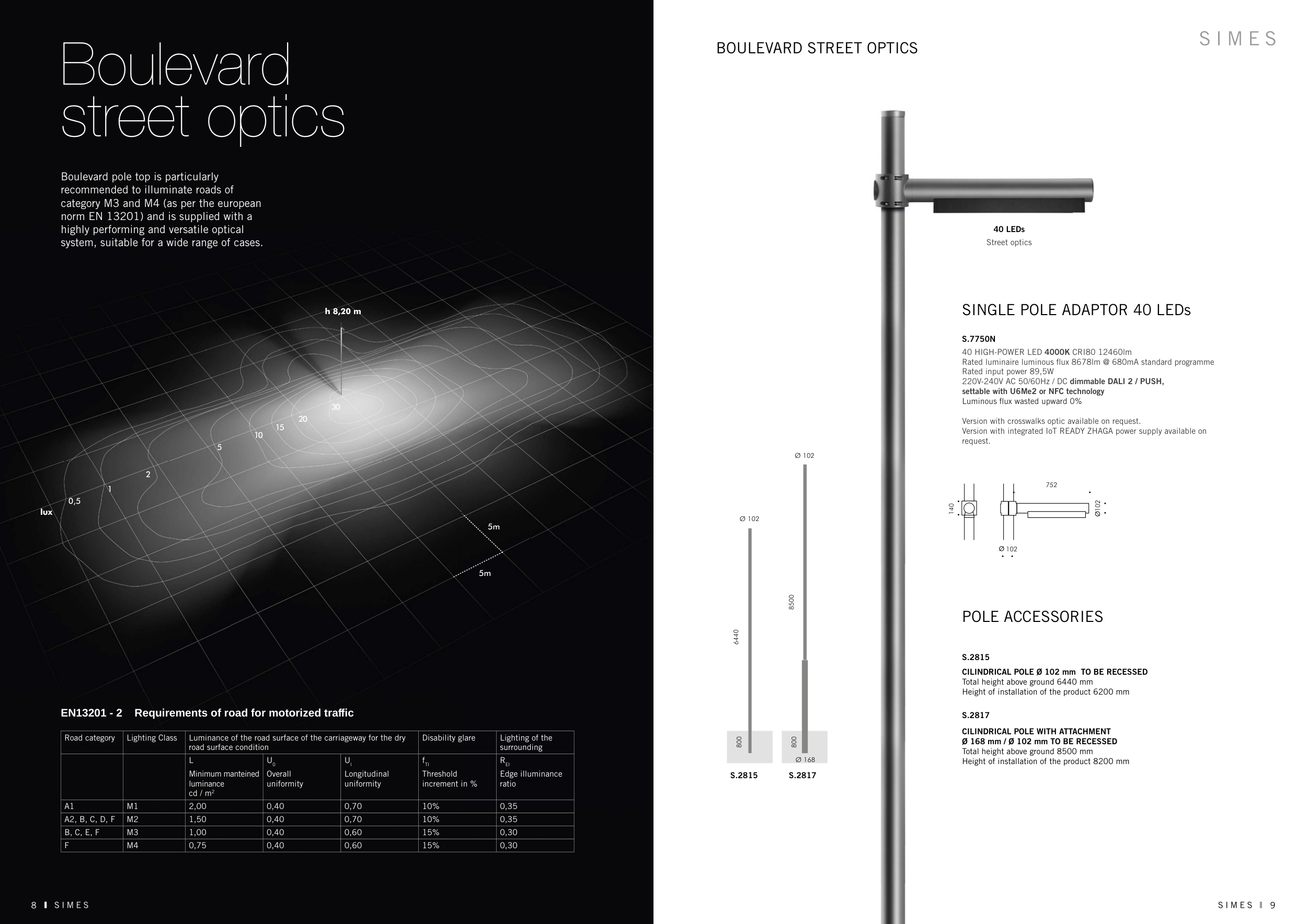

Boulevard pole top is particularly
recommended to illuminate roads of
category M3 and M4 (as per the european
norm EN 13201) and is supplied with a
highly performing and versatile optical
system, suitable for a wide range of cases.
Boulevard
street optics
40 HIGH-POWER LED 4000K CRI80 12460lm
Rated luminaire luminous flux 8678lm @ 680mA standard programme
Rated input power 89,5W
220V-240V AC 50/60Hz / DC dimmable DALI 2 / PUSH,
settable with U6Me2 or NFC technology
Luminous flux wasted upward 0%
Version with crosswalks optic available on request.
Version with integrated IoT READY ZHAGA power supply available on
request.
SINGLE POLE ADAPTOR 40 LEDs
CILINDRICAL POLE Ø 102 mm TO BE RECESSED
Total height above ground 6440 mm
Height of installation of the product 6200 mm
CILINDRICAL POLE WITH ATTACHMENT
Ø 168 mm / Ø 102 mm TO BE RECESSED
Total height above ground 8500 mm
Height of installation of the product 8200 mm
POLE ACCESSORIES
BOULEVARD STREET OPTICS
40 LEDs
Street optics
Road category
Lighting Class
Luminance of the road surface of the carriageway for the dry
road surface condition
Disability glare
Lighting of the
surrounding
L
Minimum manteined
luminance
cd / m2
U0
Overall
uniformity
Ul
Longitudinal
uniformity
fTI
Threshold
increment in %
REI
Edge illuminance
ratio
A1
M1
2,00
0,40
0,70
10%
0,35
A2, B, C, D, F
M2
1,50
0,40
0,70
10%
0,35
B, C, E, F
M3
1,00
0,40
0,60
15%
0,30
F
M4
0,75
0,40
0,60
15%
0,30
EN13201 - 2 Requirements of road for motorized traffic
9
8
S.2815
S.2817
S.2815
S.2817
S.7750N
