h 5.50
h 6.80
0
5
0
10
15
20
25
10
10
15
15
20
20
(m)
25
25
0
5
0
10
15
20
25
10
10
15
15
20
20
(m)
25
25
5
5
5
5
lux
lux
Version
40 LEDs
40 LEDs
Pole height
H 5,5m
H 6,8m
Dimming
Rated flux at 100%
Rated flux at 100%
Rated flux
8678 lm
8678 lm
Rated power
81,6 W
81,6 W
Luminaire efficacy
106 lm/W
106 lm/W
Illuminated area and
lighting category
22 x 15 m (P1)
-
25 x 17 m (P2)
-
-
30 x 20 m (P3)

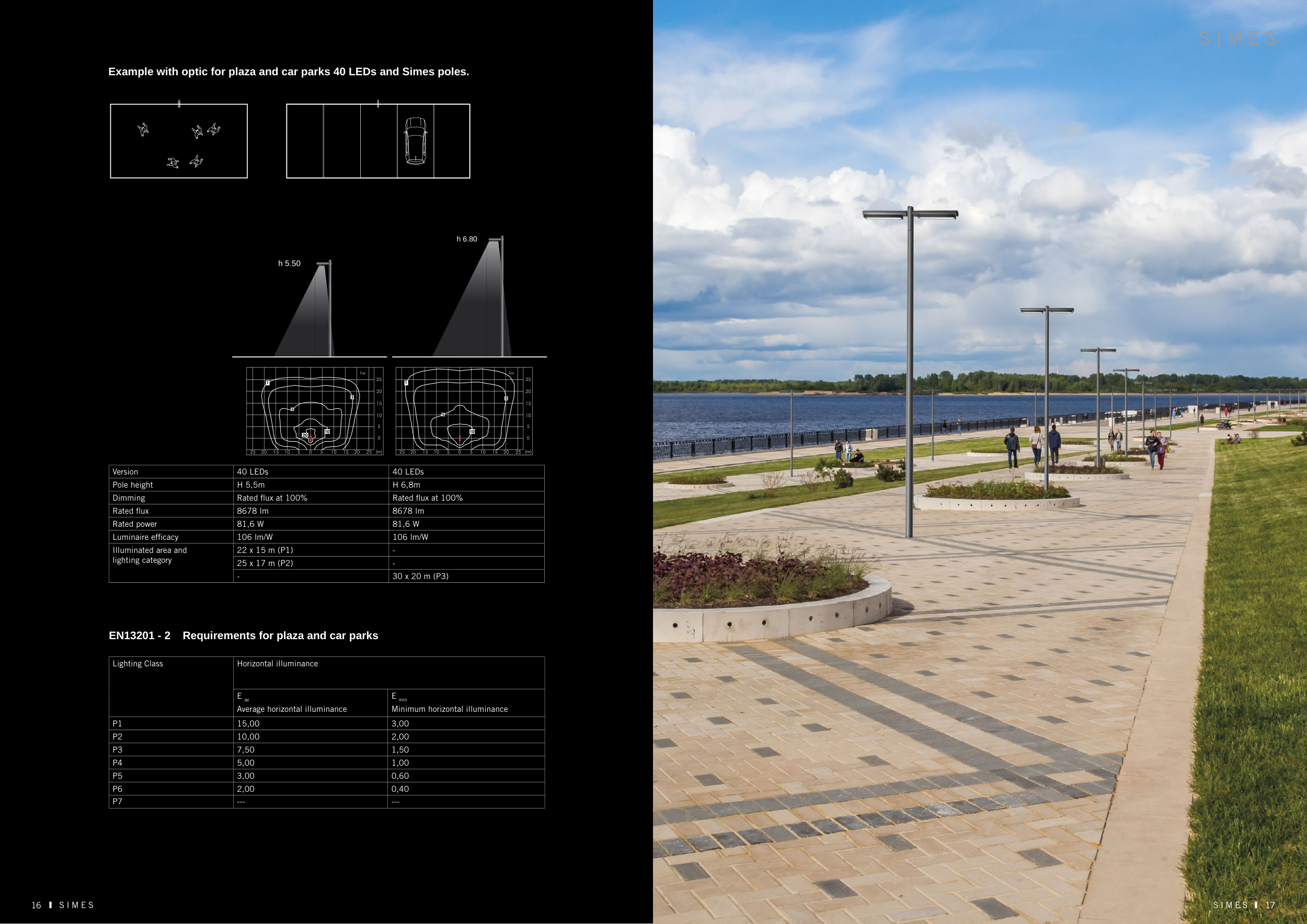

Example with optic for plaza and car parks 40 LEDs and Simes poles.
Lighting Class
Horizontal illuminance
E av
Average horizontal illuminance
E min
Minimum horizontal illuminance
P1
15,00
3,00
P2
10,00
2,00
P3
7,50
1,50
P4
5,00
1,00
P5
3,00
0,60
P6
2,00
0,40
P7
---
---
EN13201 - 2 Requirements for plaza and car parks
