LEGENDA - LEGEND
BEAM
Ampiezza fascio - Beam wide
W
Potenza - Wattage
LM
Lumen (flusso luminoso) - Lumen (luminous flux)
K
Temperatura di colore - Color temperature
V
Voltaggio nominale - Nominal voltage
CRI
Resa cromatica - Color rendering index
KG
Peso - Weight
ALIMENTATORE INTEGRATO
INTEGRATED DRIVER
180°
±355°
Rotazione asse verticale/orizzontale
Vertical/orizontal axis rotation
Info WWW.SIDE.IT

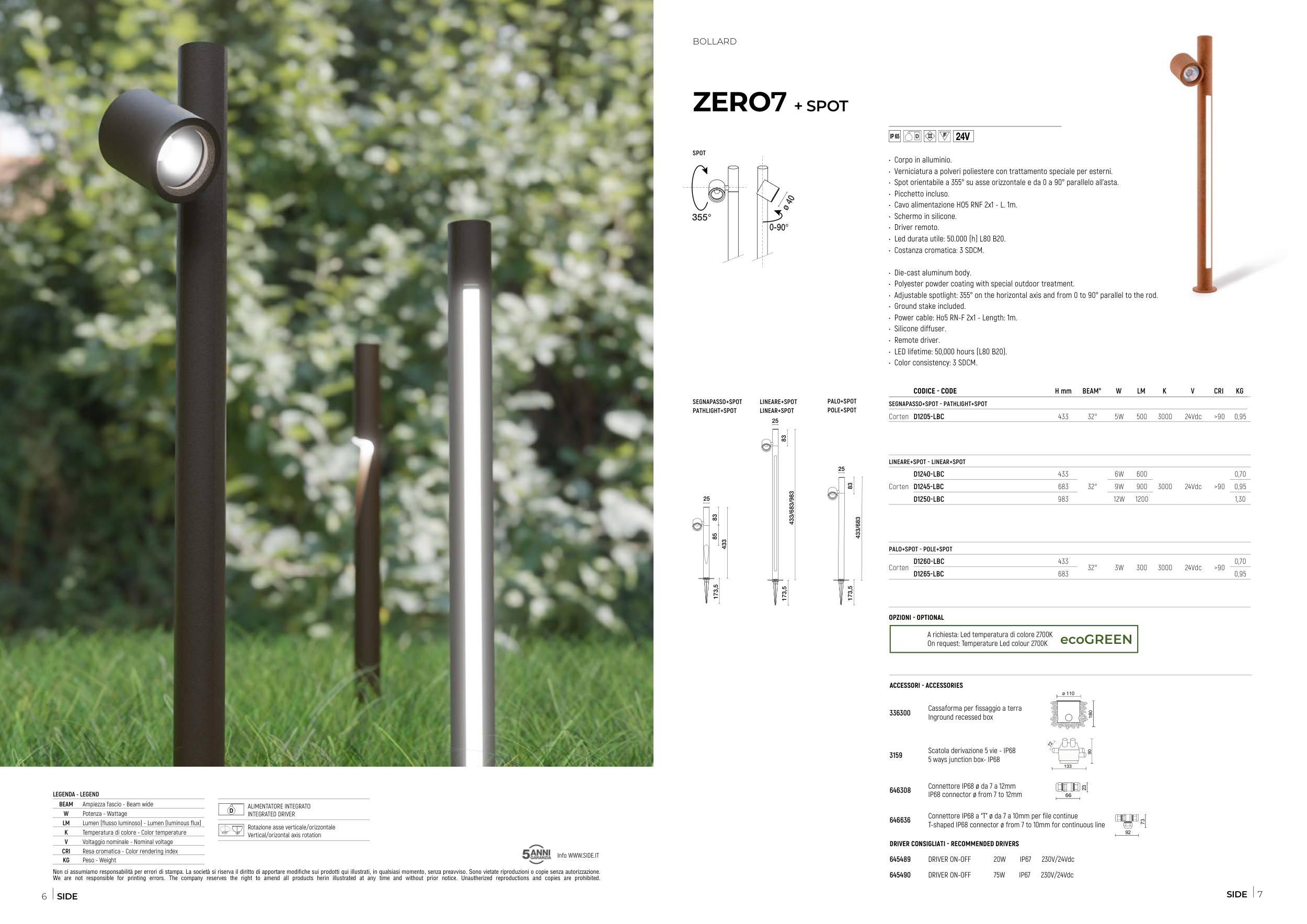

ZERO7 + SPOT
IP 65
24V
CODICE - CODE
H mm
BEAM°
W
LM
K
V
CRI
KG
SEGNAPASSO+SPOT - PATHLIGHT+SPOT
Corten D1205-LBC
433
32°
5W
500
3000
24Vdc
>90
0,95
LINEARE+SPOT - LINEAR+SPOT
Corten
D1240-LBC
433
32°
6W
600
3000
24Vdc
>90
0,70
D1245-LBC
683
9W
900
0,95
D1250-LBC
983
12W
1200
1,30
PALO+SPOT - POLE+SPOT
Corten
D1260-LBC
433
32°
3W
300
3000
24Vdc
>90
0,70
D1265-LBC
683
0,95
83
85
25
433
173,5
355°
0-90°
ø 40
433/683/983
25
83
173,5
83
25
433/683
173,5
SEGNAPASSO+SPOT
PATHLIGHT+SPOT
LINEARE+SPOT
LINEAR+SPOT
PALO+SPOT
POLE+SPOT
SPOT
• Corpo in alluminio.
• Verniciatura a polveri poliestere con trattamento speciale per esterni.
• Spot orientabile a 355° su asse orizzontale e da 0 a 90° parallelo all’asta.
• Picchetto incluso.
• Cavo alimentazione HO5 RNF 2x1 - L. 1m.
• Schermo in silicone.
• Driver remoto.
• Led durata utile: 50.000 (h) L80 B20.
• Costanza cromatica: 3 SDCM.
• Die-cast aluminum body.
• Polyester powder coating with special outdoor treatment.
• Adjustable spotlight: 355° on the horizontal axis and from 0 to 90° parallel to the rod.
• Ground stake included.
• Power cable: Ho5 RN-F 2x1 - Length: 1m.
• Silicone diffuser.
• Remote driver.
• LED lifetime: 50,000 hours (L80 B20).
• Color consistency: 3 SDCM.
BOLLARD
OPZIONI - OPTIONAL
A richiesta: Led temperatura di colore 2700K
On request: Temperature Led colour 2700K
ecoGREEN
ACCESSORI - ACCESSORIES
336300
Cassaforma per fissaggio a terra
Inground recessed box
3159
Scatola derivazione 5 vie - IP68
5 ways junction box- IP68
646308
Connettore IP68 ø da 7 a 12mm
IP68 connector ø from 7 to 12mm
646636
Connettore IP68 a “T” ø da 7 a 10mm per file continue
T-shaped IP68 connector ø from 7 to 10mm for continuous line
DRIVER CONSIGLIATI - RECOMMENDED DRIVERS
645489
DRIVER ON-OFF 20W IP67 230V/24Vdc
645490
DRIVER ON-OFF 75W IP67 230V/24Vdc
66
23
180
ø 110
92
73
133
90
72
