ACCESSORI - ACCESSORIES
896
Pozzetto per fissaggio a terra - Pit for ground fixing
646308
Connettore IP68 ø da 7 a 10mm
IP68 connector ø from 7 to 10mm
646636
Connettore IP68 a “T” ø da 7 a 10mm per file continue
T-shaped IP68 connector to ø from 7 to 10mm for continuous line
• Corpo in pressofusione ed estruso di alluminio.
• Verniciatura in polveri di poliestere con trattamento speciale per esterni.
• Schermo vetro opale stabilizzato ai raggi UV.
• Guarnizioni in gomma siliconica.
• Cavo alimentazione.
• Led durata utile: 50.000 (h) L80 B20.
• Costanza cromatica: 3 SDCM.
• Extruded aluminum body.
• Polyester powder painting with special treatment for outdoor.
• UV-stabilized opal glass screen.
• Silicone rubber seals.
• Power cable.
• LED Life: 50.000 (h) L80 B20.
• Chromatic constancy: 3 SDCM.
BEAM
W
LM
K
V
CRI
MONODIREZIONALE - MONODIRECTIONAL
NE
E6150-LBC
E6155-LBC
E6160-LBC
E6165-LBC
MONO
6W
58
3000
220/240V
24Vdc
>90
GRA E6151-LBC
E6156-LBC
E6161-LBC
E6166-LBC
BW
E6152-LBC
E6157-LBC
E6162-LBC
E6167-LBC
NE
E6150-LBN
E6155-LBN
E6160-LBN
E6165-LBN
66
4000
GRA E6151-LBN
E6156-LBN
E6161-LBN
E6166-LBN
BW
E6152-LBN
E6157-LBN
E6162-LBN
E6167-LBN
BIDIREZIONALE - BI-DIRECTIONAL
NE
E6125-LBC
E6130-LBC
E6135-LBC
E6140-LBC
BI
12W
109
3000
220/240V
24Vdc
>90
GRA E6126-LBC
E6131-LBC
E6136-LBC
E6141-LBC
BW
E6127-LBC
E6132-LBC
E6137-LBC
E6142-LBC
NE
E6125-LBN
E6130-LBN
E6135-LBN
E6140-LBN
125
4000
GRA E6126-LBN
E6131-LBN
E6136-LBN
E6141-LBN
BW
E6127-LBN
E6132-LBN
E6137-LBN
E6142-LBN
OMNIDIREZIONALE - OMNIDIRECTIONAL
NE
E6100-LBC
E6105-LBC
E6110-LBC
E6115-LBC
OMNI
24W
222
3000
220/240V
24Vdc
>90
GRA E6101-LBC
E6106-LBC
E6111-LBC
E6116-LBC
BW
E6102-LBC
E6107-LBC
E6112-LBC
E6117-LBC
NE
E6100-LBN
E6105-LBN
E6110-LBN
E6115-LBN
254
4000
GRA E6101-LBN
E6106-LBN
E6111-LBN
E6116-LBN
BW
E6102-LBN
E6107-LBN
E6112-LBN
E6117-LBN
H
ø 120
ø 160
H 235mm = 2.30 Kg
400mm = 2.80 Kg
700mm = 3.90 Kg
1000mm = 4.90 Kg
H=700mm
H=400mm
H=235mm
95
23
223
ø 190
92
73
H=1000mm
IP 65
IK 10
850° C
RG 0

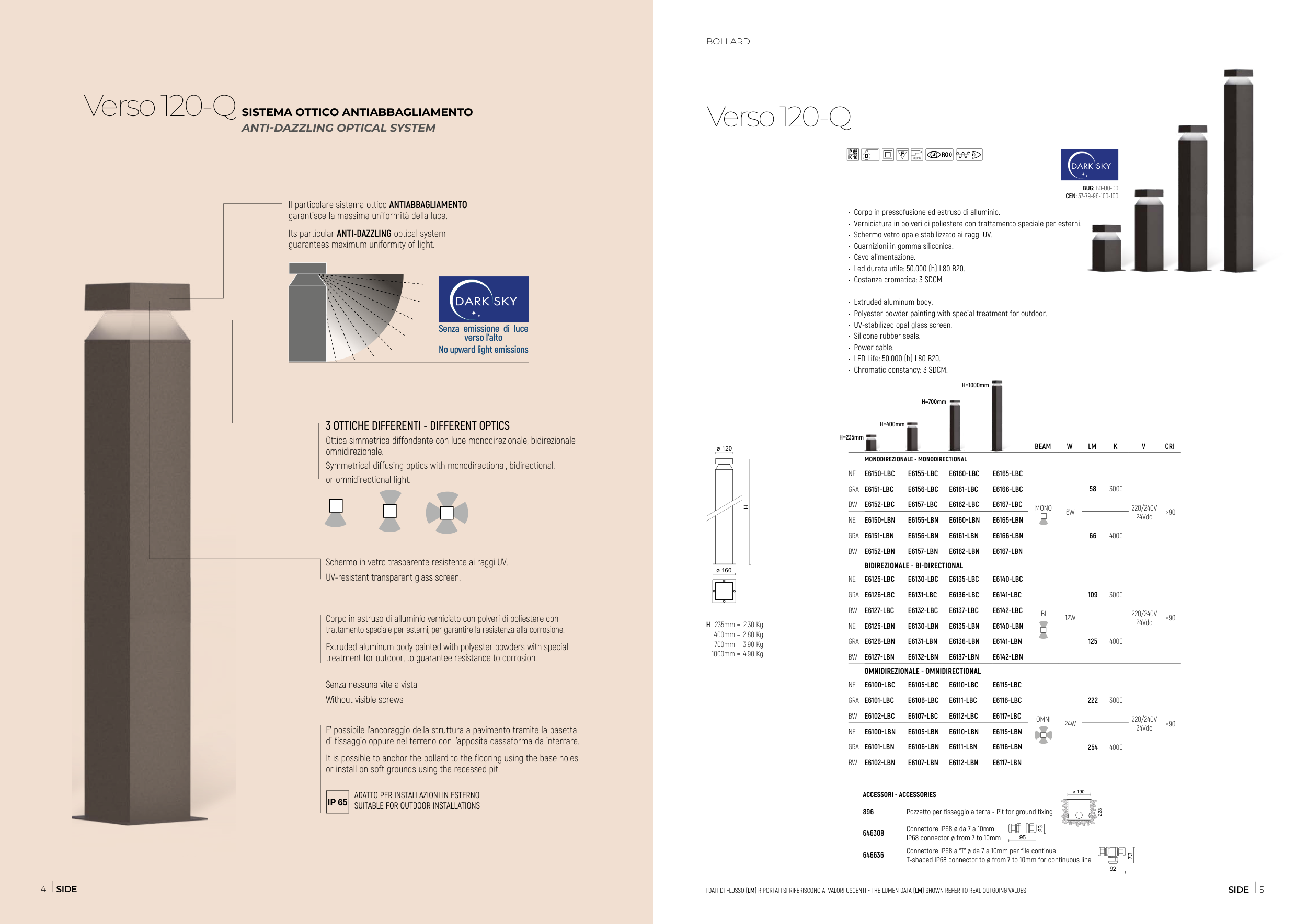

Verso 120-Q
Schermo in vetro trasparente resistente ai raggi UV.
UV-resistant transparent glass screen.
Corpo in estruso di alluminio verniciato con polveri di poliestere con
trattamento speciale per esterni, per garantire la resistenza alla corrosione.
Extruded aluminum body painted with polyester powders with special
treatment for outdoor, to guarantee resistance to corrosion.
Ottica simmetrica diffondente con luce monodirezionale, bidirezionale
omnidirezionale.
Symmetrical diffusing optics with monodirectional, bidirectional,
or omnidirectional light.
Senza nessuna vite a vista
Without visible screws
3 OTTICHE DIFFERENTI - DIFFERENT OPTICS
E’ possibile l’ancoraggio della struttura a pavimento tramite la basetta
di fissaggio oppure nel terreno con l’apposita cassaforma da interrare.
It is possible to anchor the bollard to the flooring using the base holes
or install on soft grounds using the recessed pit.
Verso 120-Q SISTEMA OTTICO ANTIABBAGLIAMENTO
ANTI-DAZZLING OPTICAL SYSTEM
IP 65
ADATTO PER INSTALLAZIONI IN ESTERNO
SUITABLE FOR OUTDOOR INSTALLATIONS
BOLLARD
BUG: B0-U0-G0
CEN: 37-79-96-100-100
ll particolare sistema ottico ANTIABBAGLIAMENTO
garantisce la massima uniformità della luce.
Its particular ANTI-DAZZLING optical system
guarantees maximum uniformity of light.
Senza emissione di luce
verso l’alto
No upward light emissions
I DATI DI FLUSSO (LM) RIPORTATI SI RIFERISCONO AI VALORI USCENTI - THE LUMEN DATA (LM) SHOWN REFER TO REAL OUTGOING VALUES
