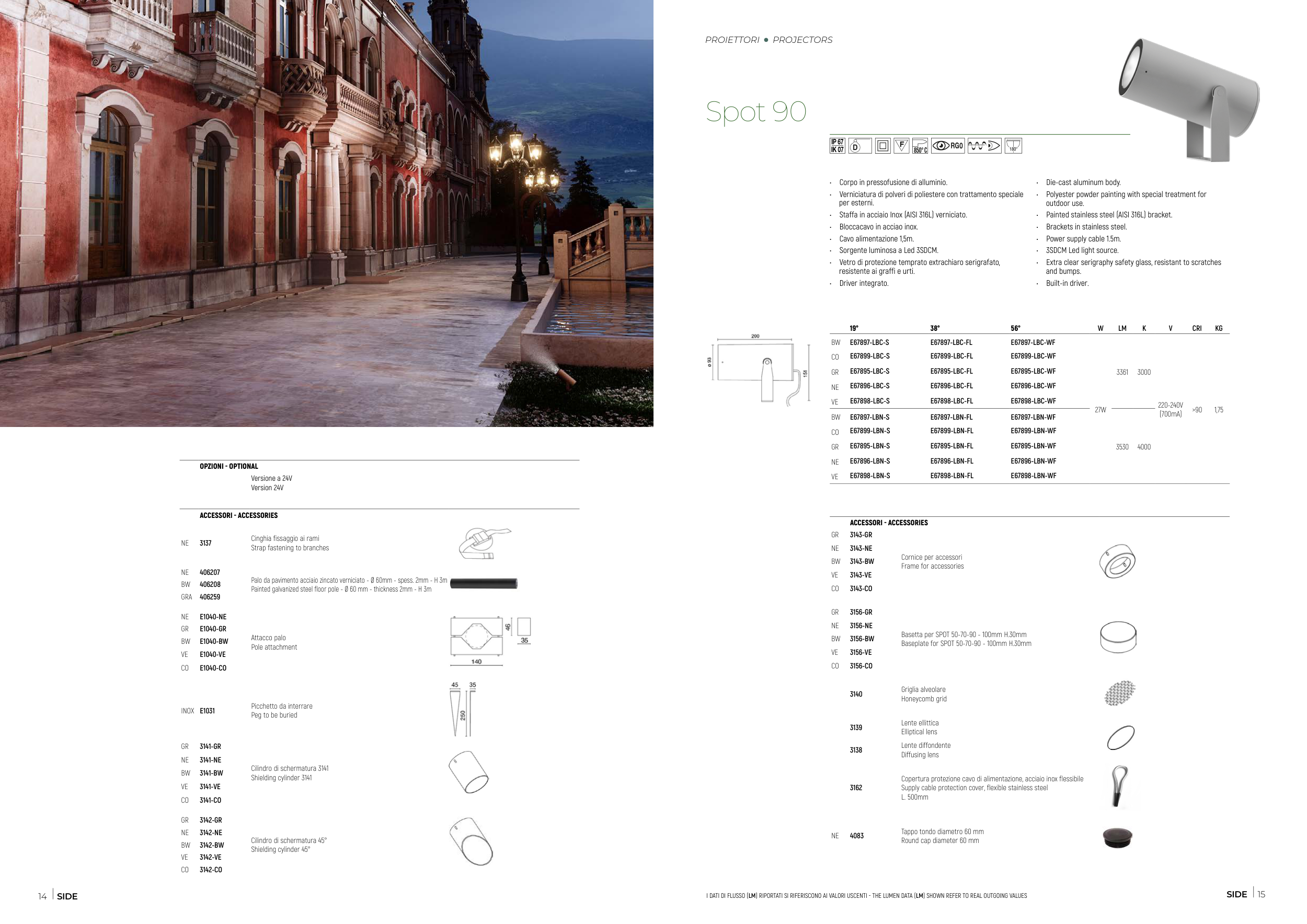

Spot 90
• Corpo in pressofusione di alluminio.
• Verniciatura di polveri di poliestere con trattamento speciale
per esterni.
• Staffa in acciaio Inox (AISI 316L) verniciato.
• Bloccacavo in acciao inox.
• Cavo alimentazione 1,5m.
• Sorgente luminosa a Led 3SDCM.
• Vetro di protezione temprato extrachiaro serigrafato,
resistente ai graffi e urti.
• Driver integrato.
• Die-cast aluminum body.
• Polyester powder painting with special treatment for
outdoor use.
• Painted stainless steel (AISI 316L) bracket.
• Brackets in stainless steel.
• Power supply cable 1.5m.
• 3SDCM Led light source.
• Extra clear serigraphy safety glass, resistant to scratches
and bumps.
• Built-in driver.
19°
38°
56°
W
LM
K
V
CRI
KG
BW
E67897-LBC-S
E67897-LBC-FL
E67897-LBC-WF
27W
3361
3000
220-240V
(700mA)
>90
1,75
CO
E67899-LBC-S
E67899-LBC-FL
E67899-LBC-WF
GR
E67895-LBC-S
E67895-LBC-FL
E67895-LBC-WF
NE
E67896-LBC-S
E67896-LBC-FL
E67896-LBC-WF
VE
E67898-LBC-S
E67898-LBC-FL
E67898-LBC-WF
BW
E67897-LBN-S
E67897-LBN-FL
E67897-LBN-WF
3530
4000
CO
E67899-LBN-S
E67899-LBN-FL
E67899-LBN-WF
GR
E67895-LBN-S
E67895-LBN-FL
E67895-LBN-WF
NE
E67896-LBN-S
E67896-LBN-FL
E67896-LBN-WF
VE
E67898-LBN-S
E67898-LBN-FL
E67898-LBN-WF
ACCESSORI - ACCESSORIES
GR
3143-GR
Cornice per accessori
Frame for accessories
NE
3143-NE
BW
3143-BW
VE
3143-VE
CO
3143-CO
GR
3156-GR
Basetta per SPOT 50-70-90 - 100mm H.30mm
Baseplate for SPOT 50-70-90 - 100mm H.30mm
NE
3156-NE
BW
3156-BW
VE
3156-VE
CO
3156-CO
3140
Griglia alveolare
Honeycomb grid
3139
Lente ellittica
Elliptical lens
3138
Lente diffondente
Diffusing lens
3162
Copertura protezione cavo di alimentazione, acciaio inox flessibile
Supply cable protection cover, flexible stainless steel
L. 500mm
NE
4083
Tappo tondo diametro 60 mm
Round cap diameter 60 mm
OPZIONI - OPTIONAL
Versione a 24V
Version 24V
ACCESSORI - ACCESSORIES
NE
3137
Cinghia fissaggio ai rami
Strap fastening to branches
NE
406207
Palo da pavimento acciaio zincato verniciato - Ø 60mm - spess. 2mm - H 3m
Painted galvanized steel floor pole - Ø 60 mm - thickness 2mm - H 3m
BW
406208
GRA
406259
Attacco palo
Pole attachment
NE
E1040-NE
GR
E1040-GR
BW
E1040-BW
VE
E1040-VE
CO
E1040-CO
INOX E1031
Picchetto da interrare
Peg to be buried
GR
3141-GR
Cilindro di schermatura 3141
Shielding cylinder 3141
NE
3141-NE
BW
3141-BW
VE
3141-VE
CO
3141-CO
GR
3142-GR
Cilindro di schermatura 45°
Shielding cylinder 45°
NE
3142-NE
BW
3142-BW
VE
3142-VE
CO
3142-CO
I DATI DI FLUSSO (LM) RIPORTATI SI RIFERISCONO AI VALORI USCENTI - THE LUMEN DATA (LM) SHOWN REFER TO REAL OUTGOING VALUES
