I DATI DI FLUSSO (LM) RIPORTATI SI RIFERISCONO AI VALORI USCENTI - THE LUMEN DATA (LM) SHOWN REFER TO REAL OUTGOING VALUES

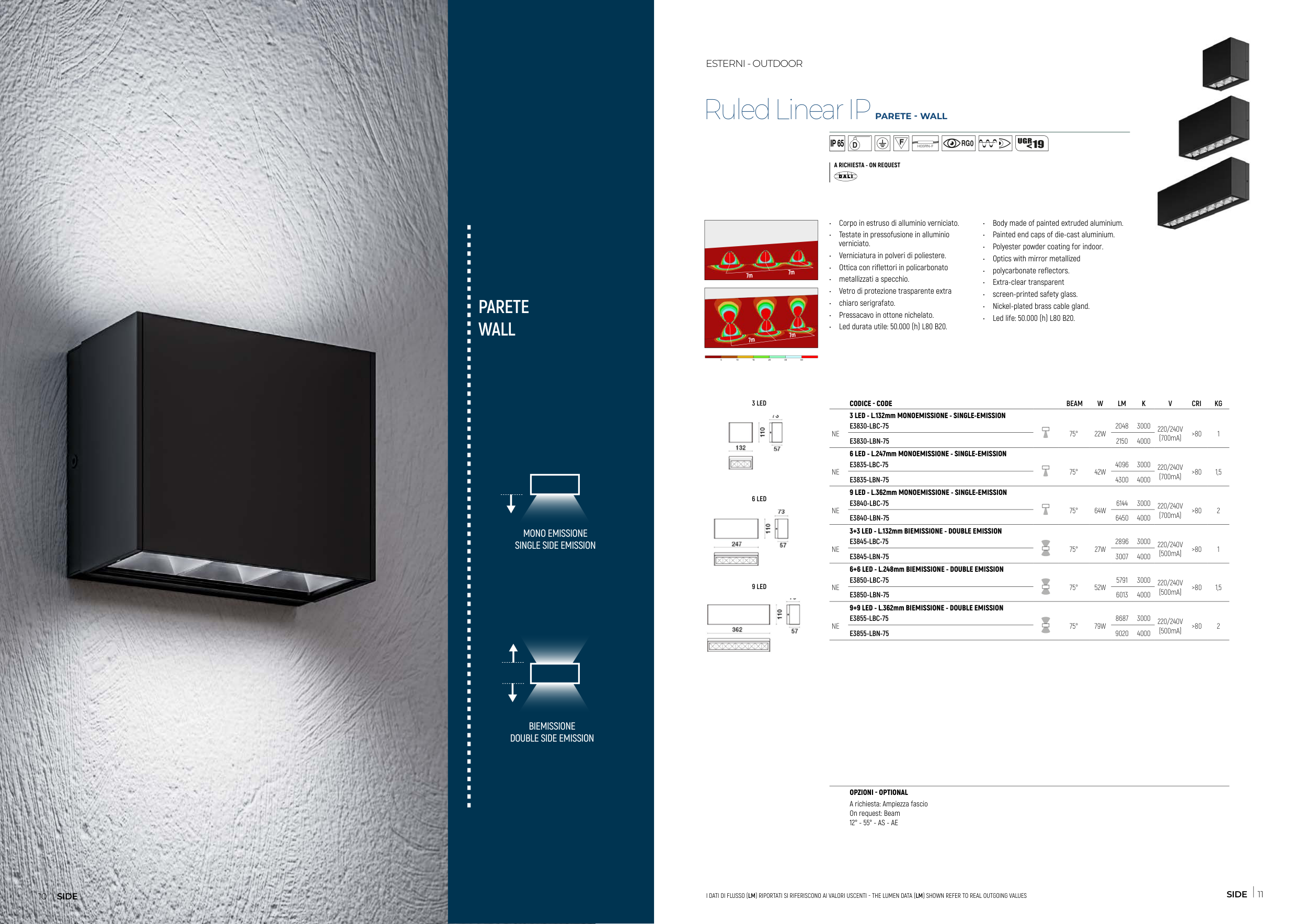

Ruled Linear IP PARETE - WALL
ESTERNI - OUTDOOR
PARETE
WALL
MONO EMISSIONE
SINGLE SIDE EMISSION
BIEMISSIONE
DOUBLE SIDE EMISSION
7m
7m
• Corpo in estruso di alluminio verniciato.
• Testate in pressofusione in alluminio
verniciato.
• Verniciatura in polveri di poliestere.
• Ottica con riflettori in policarbonato
• metallizzati a specchio.
• Vetro di protezione trasparente extra
• chiaro serigrafato.
• Pressacavo in ottone nichelato.
• Led durata utile: 50.000 (h) L80 B20.
• Body made of painted extruded aluminium.
• Painted end caps of die-cast aluminium.
• Polyester powder coating for indoor.
• Optics with mirror metallized
• polycarbonate reflectors.
• Extra-clear transparent
• screen-printed safety glass.
• Nickel-plated brass cable gland.
• Led life: 50.000 (h) L80 B20.
CODICE - CODE
BEAM
W
LM
K
V
CRI
KG
NE
3 LED - L.132mm MONOEMISSIONE - SINGLE-EMISSION
E3830-LBC-75
75°
22W
2048
3000
220/240V
(700mA)
>80
1
E3830-LBN-75
2150
4000
NE
6 LED - L.247mm MONOEMISSIONE - SINGLE-EMISSION
E3835-LBC-75
75°
42W
4096
3000
220/240V
(700mA)
>80
1,5
E3835-LBN-75
4300
4000
NE
9 LED - L.362mm MONOEMISSIONE - SINGLE-EMISSION
E3840-LBC-75
75°
64W
6144
3000
220/240V
(700mA)
>80
2
E3840-LBN-75
6450
4000
NE
3+3 LED - L.132mm BIEMISSIONE - DOUBLE EMISSION
E3845-LBC-75
75°
27W
2896
3000
220/240V
(500mA)
>80
1
E3845-LBN-75
3007
4000
NE
6+6 LED - L.248mm BIEMISSIONE - DOUBLE EMISSION
E3850-LBC-75
75°
52W
5791
3000
220/240V
(500mA)
>80
1,5
E3850-LBN-75
6013
4000
NE
9+9 LED - L.362mm BIEMISSIONE - DOUBLE EMISSION
E3855-LBC-75
75°
79W
8687
3000
220/240V
(500mA)
>80
2
E3855-LBN-75
9020
4000
3 LED
6 LED
9 LED
OPZIONI - OPTIONAL
A richiesta: Ampiezza fascio
On request: Beam
12° - 55° - AS - AE
A RICHIESTA - ON REQUEST
Colori falsati 3D, Vista 1 (E)
Progettista illuminotecnico_Stefano Lanciani
SIDE S.p.A. a socio unico_Via Cattaneo n.90_20851_Lissone_MB_Tel 039.2449001
UT_05505.rdf
5
10
15
20
30
50
Illuminamento [lx]
7m
7m
