MICRO INCASSI CALPESTABILI WALKOVER MICRO RECESSED UPLIGHTERS
MICRO INCASSI CALPESTABILI WALKOVER MICRO RECESSED UPLIGHTERS

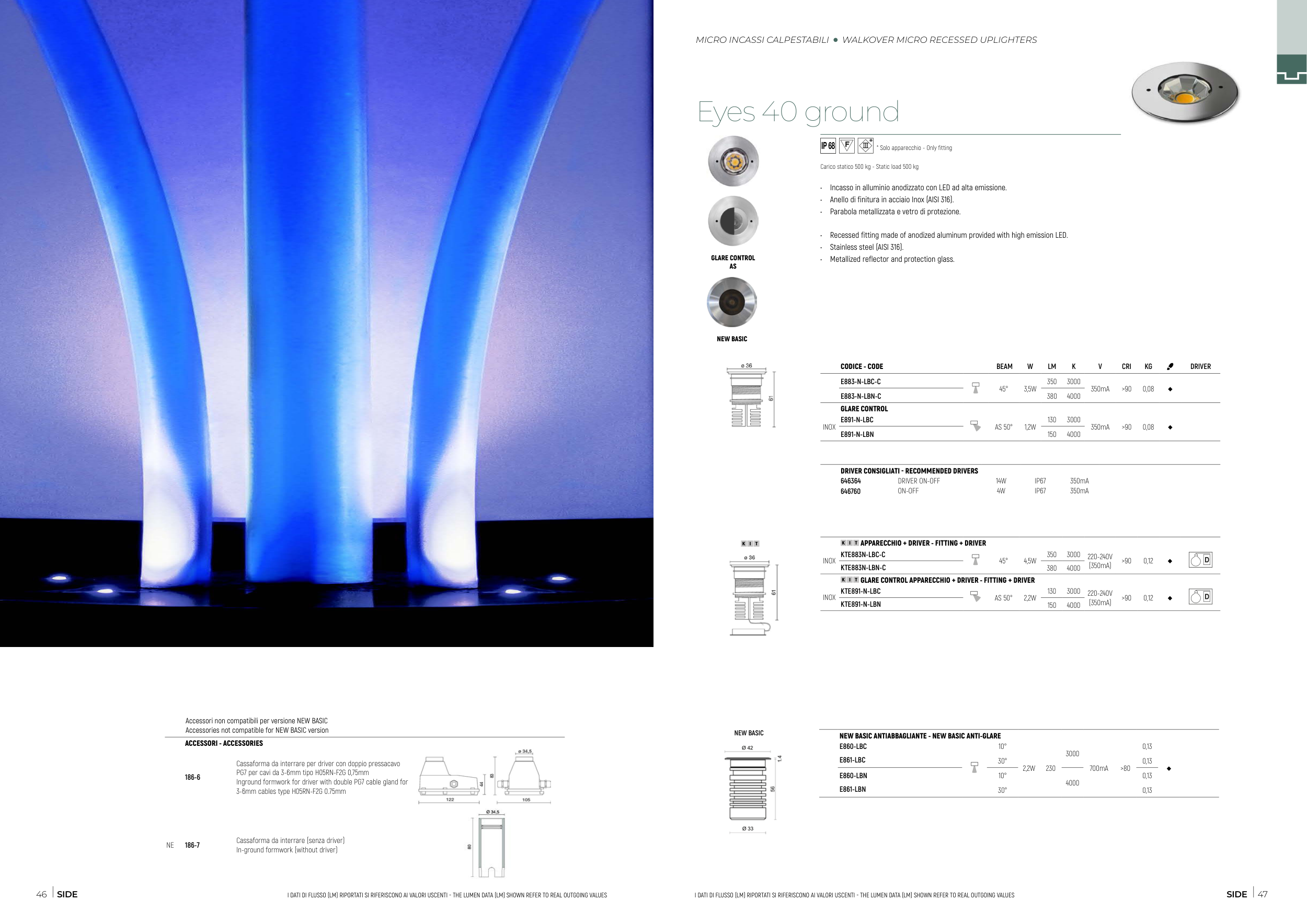

Eyes 40 ground
GLARE CONTROL
AS
• Incasso in alluminio anodizzato con LED ad alta emissione.
• Anello di finitura in acciaio Inox (AISI 316).
• Parabola metallizzata e vetro di protezione.
• Recessed fitting made of anodized aluminum provided with high emission LED.
• Stainless steel (AISI 316).
• Metallized reflector and protection glass.
Carico statico 500 kg - Static load 500 kg
CODICE - CODE
BEAM
W
LM
K
V
CRI
KG
DRIVER
E883-N-LBC-C
45°
3,5W
350
3000
350mA
>90
0,08
◆
E883-N-LBN-C
380
4000
INOX
GLARE CONTROL
E891-N-LBC
AS 50°
1,2W
130
3000
350mA
>90
0,08
◆
E891-N-LBN
150
4000
INOX
APPARECCHIO + DRIVER - FITTING + DRIVER
KTE883N-LBC-C
45°
4,5W
350
3000
220-240V
(350mA)
>90
0,12
◆
KTE883N-LBN-C
380
4000
INOX
GLARE CONTROL APPARECCHIO + DRIVER - FITTING + DRIVER
KTE891-N-LBC
AS 50°
2,2W
130
3000
220-240V
(350mA)
>90
0,12
◆
KTE891-N-LBN
150
4000
* Solo apparecchio - Only fitting
DRIVER CONSIGLIATI - RECOMMENDED DRIVERS
646364
DRIVER ON-OFF
14W
IP67
350mA
646760
ON-OFF
4W
IP67
350mA
NEW BASIC ANTIABBAGLIANTE - NEW BASIC ANTI-GLARE
E860-LBC
10°
2,2W
230
3000
700mA
>80
50,13
◆
E861-LBC
30°
50,13
E860-LBN
10°
4000
50,13
E861-LBN
30°
50,13
NEW BASIC
NEW BASIC
ACCESSORI - ACCESSORIES
186-6
Cassaforma da interrare per driver con doppio pressacavo
PG7 per cavi da 3-6mm tipo H05RN-F2G 0,75mm
Inground formwork for driver with double PG7 cable gland for
3-6mm cables type H05RN-F2G 0.75mm
NE
186-7
Cassaforma da interrare (senza driver)
In-ground formwork (without driver)
Accessori non compatibili per versione NEW BASIC
Accessories not compatible for NEW BASIC version
