BOLLARD URBANO RESIDENZIALE URBAN RESIDENTIAL BOLLARD
BOLLARD URBANO RESIDENZIALE URBAN RESIDENTIAL BOLLARD

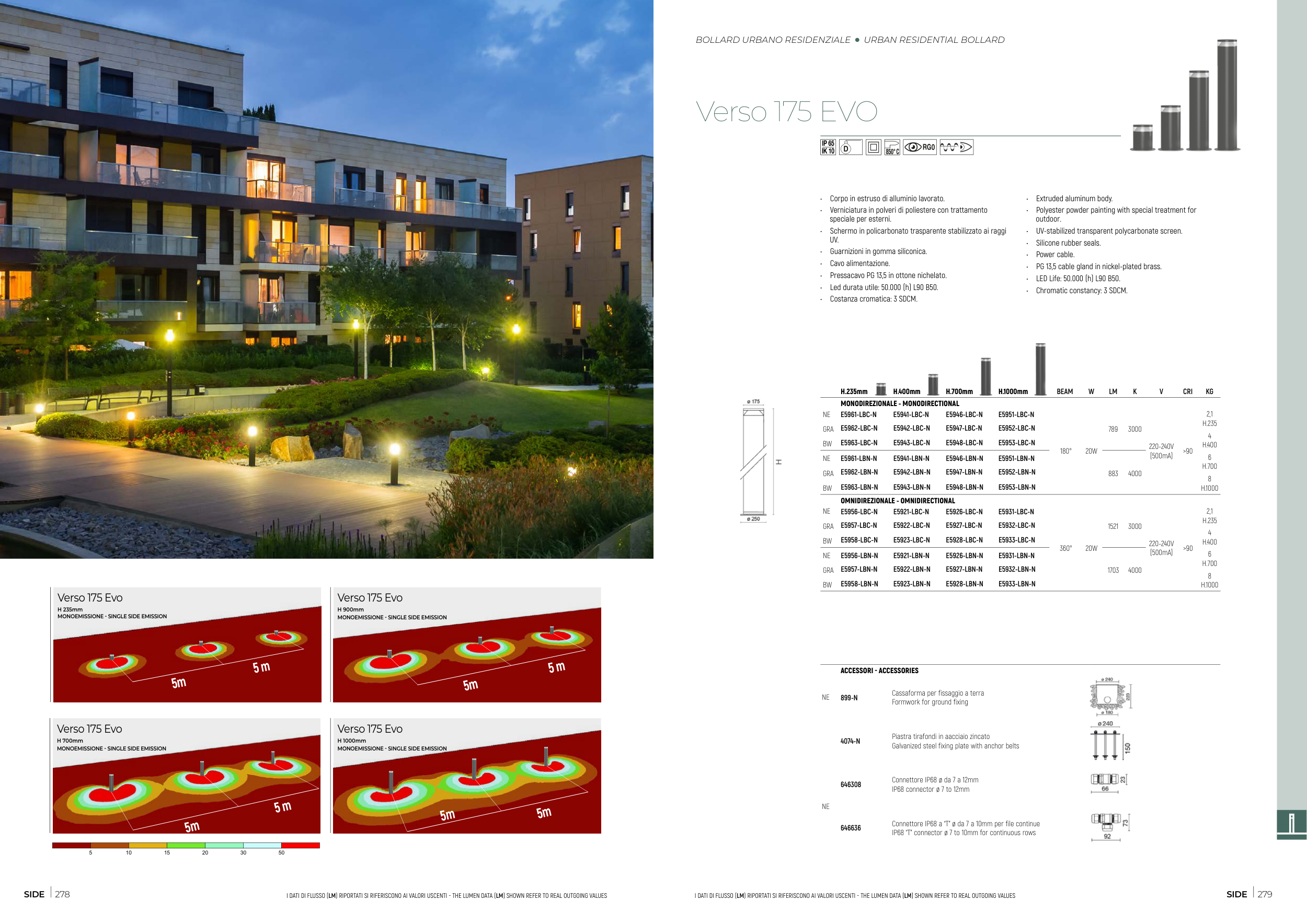

Verso 175 EVO
• Corpo in estruso di alluminio lavorato.
• Verniciatura in polveri di poliestere con trattamento
speciale per esterni.
• Schermo in policarbonato trasparente stabilizzato ai raggi
UV.
• Guarnizioni in gomma siliconica.
• Cavo alimentazione.
• Pressacavo PG 13,5 in ottone nichelato.
• Led durata utile: 50.000 (h) L90 B50.
• Costanza cromatica: 3 SDCM.
• Extruded aluminum body.
• Polyester powder painting with special treatment for
outdoor.
• UV-stabilized transparent polycarbonate screen.
• Silicone rubber seals.
• Power cable.
• PG 13,5 cable gland in nickel-plated brass.
• LED Life: 50.000 (h) L90 B50.
• Chromatic constancy: 3 SDCM.
H.235mm
H.400mm
H.700mm
H.1000mm
BEAM
W
LM
K
V
CRI
KG
NE
MONODIREZIONALE - MONODIRECTIONAL
E5961-LBC-N
E5941-LBC-N
E5946-LBC-N
E5951-LBC-N
180°
20W
789
3000
220-240V
(500mA)
>90
2,1
H.235
4
H.400
6
H.700
8
H.1000
GRA
E5962-LBC-N
E5942-LBC-N
E5947-LBC-N
E5952-LBC-N
BW
E5963-LBC-N
E5943-LBC-N
E5948-LBC-N
E5953-LBC-N
NE
E5961-LBN-N
E5941-LBN-N
E5946-LBN-N
E5951-LBN-N
883
4000
GRA
E5962-LBN-N
E5942-LBN-N
E5947-LBN-N
E5952-LBN-N
BW
E5963-LBN-N
E5943-LBN-N
E5948-LBN-N
E5953-LBN-N
NE
OMNIDIREZIONALE - OMNIDIRECTIONAL
E5956-LBC-N
E5921-LBC-N
E5926-LBC-N
E5931-LBC-N
360°
20W
1521
3000
220-240V
(500mA)
>90
2,1
H.235
4
H.400
6
H.700
8
H.1000
GRA
E5957-LBC-N
E5922-LBC-N
E5927-LBC-N
E5932-LBC-N
BW
E5958-LBC-N
E5923-LBC-N
E5928-LBC-N
E5933-LBC-N
NE
E5956-LBN-N
E5921-LBN-N
E5926-LBN-N
E5931-LBN-N
1703
4000
GRA
E5957-LBN-N
E5922-LBN-N
E5927-LBN-N
E5932-LBN-N
BW
E5958-LBN-N
E5923-LBN-N
E5928-LBN-N
E5933-LBN-N
ACCESSORI - ACCESSORIES
NE
899-N
Cassaforma per fissaggio a terra
Formwork for ground fixing
4074-N
Piastra tirafondi in aacciaio zincato
Galvanized steel fixing plate with anchor belts
NE
646308
Connettore IP68 ø da 7 a 12mm
IP68 connector ø 7 to 12mm
646636
Connettore IP68 a “T” ø da 7 a 10mm per file continue
IP68 “T” connector ø 7 to 10mm for continuous rows
5m
5 m
Verso 175 Evo
H 235mm
MONOEMISSIONE - SINGLE SIDE EMISSION
Verso 175 Evo
H 900mm
MONOEMISSIONE - SINGLE SIDE EMISSION
5m
5 m
5m
5 m
Verso 175 Evo
H 700mm
MONOEMISSIONE - SINGLE SIDE EMISSION
Verso 175 Evo
H 1000mm
MONOEMISSIONE - SINGLE SIDE EMISSION
5m
5m
Colori falsati 3D, Vista 1 (E)
Progettista illuminotecnico_Stefano Lanciani
SIDE S.p.A. a socio unico_Via Cattaneo n.90_20851_Lissone_MB_Tel 039.2449001
UT_05505.rdf
5
10
15
20
30
50
Illuminamento [lx]
