PROIETTORI & BINARI 230V PROJECTORS & TRACKS 230V
PROIETTORI & BINARI 230V PROJECTORS & TRACKS 230V

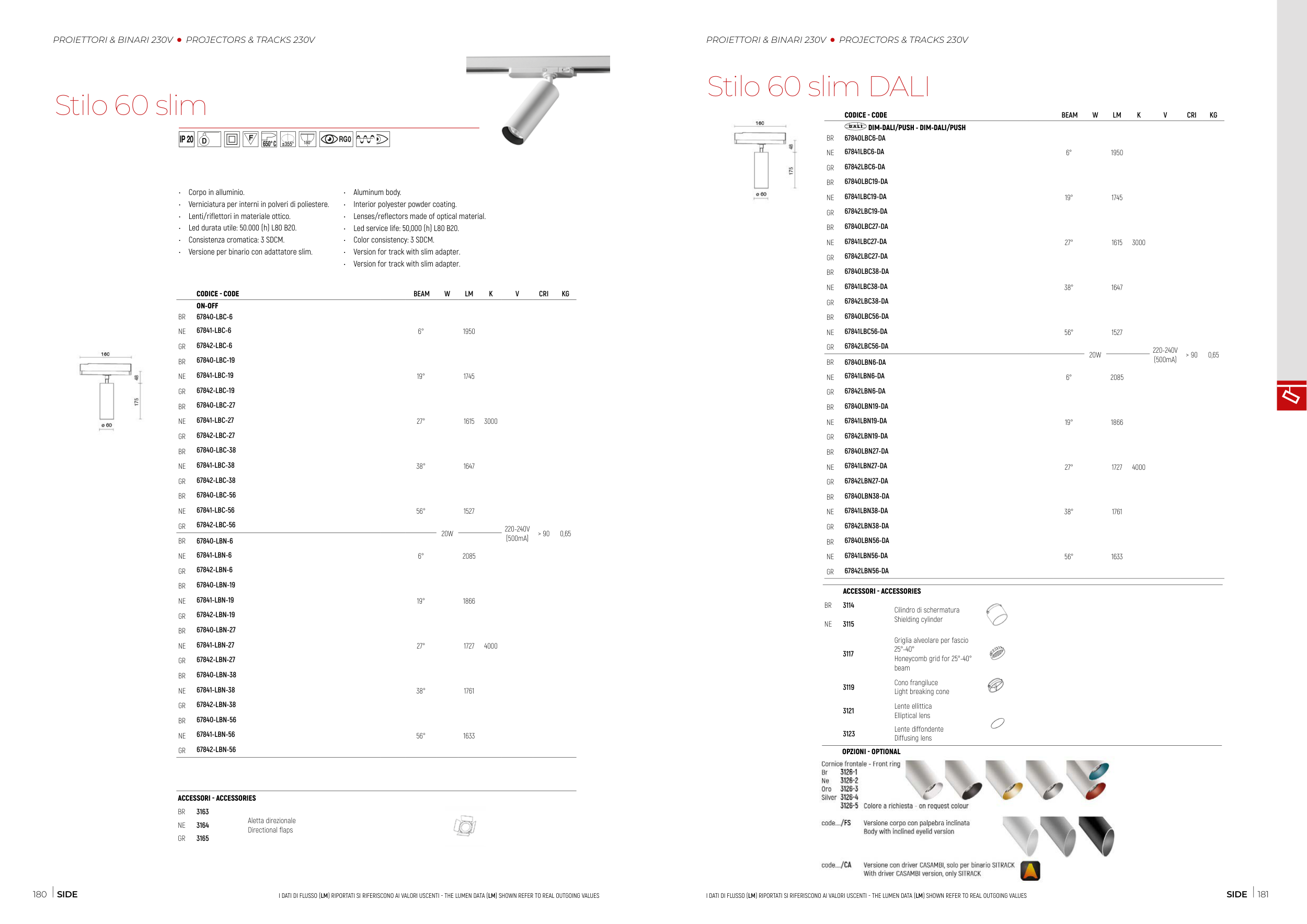

Stilo 60 slim
• Corpo in alluminio.
• Verniciatura per interni in polveri di poliestere.
• Lenti/riflettori in materiale ottico.
• Led durata utile: 50.000 (h) L80 B20.
• Consistenza cromatica: 3 SDCM.
• Versione per binario con adattatore slim.
• Aluminum body.
• Interior polyester powder coating.
• Lenses/reflectors made of optical material.
• Led service life: 50,000 (h) L80 B20.
• Color consistency: 3 SDCM.
• Version for track with slim adapter.
• Version for track with slim adapter.
CODICE - CODE
BEAM
W
LM
K
V
CRI
KG
BR
ON-OFF
67840-LBC-6
6°
20W
1950
3000
220-240V
(500mA)
> 90
0,65
NE
67841-LBC-6
GR
67842-LBC-6
BR
67840-LBC-19
19°
1745
NE
67841-LBC-19
GR
67842-LBC-19
BR
67840-LBC-27
27°
1615
NE
67841-LBC-27
GR
67842-LBC-27
BR
67840-LBC-38
38°
1647
NE
67841-LBC-38
GR
67842-LBC-38
BR
67840-LBC-56
56°
1527
NE
67841-LBC-56
GR
67842-LBC-56
BR
67840-LBN-6
6°
2085
4000
NE
67841-LBN-6
GR
67842-LBN-6
BR
67840-LBN-19
19°
1866
NE
67841-LBN-19
GR
67842-LBN-19
BR
67840-LBN-27
27°
1727
NE
67841-LBN-27
GR
67842-LBN-27
BR
67840-LBN-38
38°
1761
NE
67841-LBN-38
GR
67842-LBN-38
BR
67840-LBN-56
56°
1633
NE
67841-LBN-56
GR
67842-LBN-56
ACCESSORI - ACCESSORIES
BR
3114
Cilindro di schermatura
Shielding cylinder
NE
3115
3117
Griglia alveolare per fascio
25°-40°
Honeycomb grid for 25°-40°
beam
3119
Cono frangiluce
Light breaking cone
3121
Lente ellittica
Elliptical lens
3123
Lente diffondente
Diffusing lens
CODICE - CODE
BEAM
W
LM
K
V
CRI
KG
BR
DIM-DALI/PUSH - DIM-DALI/PUSH
67840LBC6-DA
6°
20W
1950
3000
220-240V
(500mA)
> 90
0,65
NE
67841LBC6-DA
GR
67842LBC6-DA
BR
67840LBC19-DA
19°
1745
NE
67841LBC19-DA
GR
67842LBC19-DA
BR
67840LBC27-DA
27°
1615
NE
67841LBC27-DA
GR
67842LBC27-DA
BR
67840LBC38-DA
38°
1647
NE
67841LBC38-DA
GR
67842LBC38-DA
BR
67840LBC56-DA
56°
1527
NE
67841LBC56-DA
GR
67842LBC56-DA
BR
67840LBN6-DA
6°
2085
4000
NE
67841LBN6-DA
GR
67842LBN6-DA
BR
67840LBN19-DA
19°
1866
NE
67841LBN19-DA
GR
67842LBN19-DA
BR
67840LBN27-DA
27°
1727
NE
67841LBN27-DA
GR
67842LBN27-DA
BR
67840LBN38-DA
38°
1761
NE
67841LBN38-DA
GR
67842LBN38-DA
BR
67840LBN56-DA
56°
1633
NE
67841LBN56-DA
GR
67842LBN56-DA
OPZIONI - OPTIONAL
Stilo 60 slim DALI
ACCESSORI - ACCESSORIES
BR
3163
Aletta direzionale
Directional flaps
NE
3164
GR
3165
