I DATI DI FLUSSO (LM) RIPORTATI SI RIFERISCONO AI VALORI USCENTI - THE LUMEN DATA (LM) SHOWN REFER TO REAL OUTGOING VALUES
I DATI DI FLUSSO (LM) RIPORTATI SI RIFERISCONO AI VALORI USCENTI - THE LUMEN DATA (LM) SHOWN REFER TO REAL OUTGOING VALUES
INCASSI-ESTRAIBILI-ORIENTABILI REMOVABLE-ADJUSTABLE RECESSED
INCASSI-ESTRAIBILI-ORIENTABILI REMOVABLE-ADJUSTABLE RECESSED

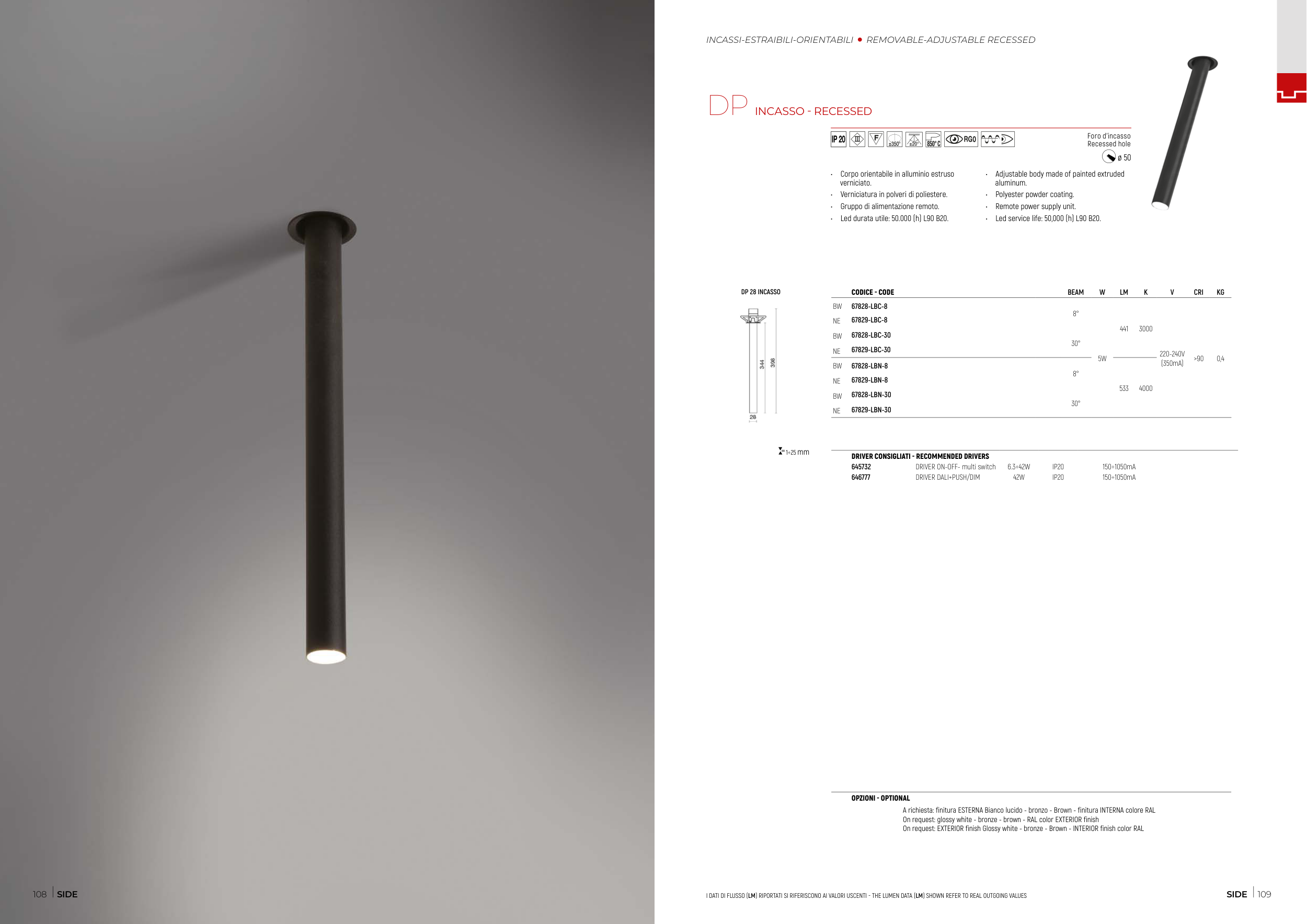

DP INCASSO - RECESSED
ø 50
Foro d’incasso
Recessed hole
• Corpo orientabile in alluminio estruso
verniciato.
• Verniciatura in polveri di poliestere.
• Gruppo di alimentazione remoto.
• Led durata utile: 50.000 (h) L90 B20.
• Adjustable body made of painted extruded
aluminum.
• Polyester powder coating.
• Remote power supply unit.
• Led service life: 50,000 (h) L90 B20.
DRIVER CONSIGLIATI - RECOMMENDED DRIVERS
645732
DRIVER ON-OFF- multi switch
6.3÷42W
IP20
150÷1050mA
646777
DRIVER DALI+PUSH/DIM
42W
IP20
150÷1050mA
CODICE - CODE
BEAM
W
LM
K
V
CRI
KG
BW
67828-LBC-8
8°
5W
441
3000
220-240V
(350mA)
>90
0,4
NE
67829-LBC-8
BW
67828-LBC-30
30°
NE
67829-LBC-30
BW
67828-LBN-8
8°
533
4000
NE
67829-LBN-8
BW
67828-LBN-30
30°
NE
67829-LBN-30
DP 28 INCASSO
1÷25 mm
OPZIONI - OPTIONAL
A richiesta: finitura ESTERNA Bianco lucido - bronzo - Brown - finitura INTERNA colore RAL
On request: glossy white - bronze - brown - RAL color EXTERIOR finish
On request: EXTERIOR finish Glossy white - bronze - Brown - INTERIOR finish color RAL
108 SIDE
SIDE 109
