I DATI DI FLUSSO (LM) RIPORTATI SI RIFERISCONO AI VALORI USCENTI - THE LUMEN DATA (LM) SHOWN REFER TO REAL OUTGOING VALUES

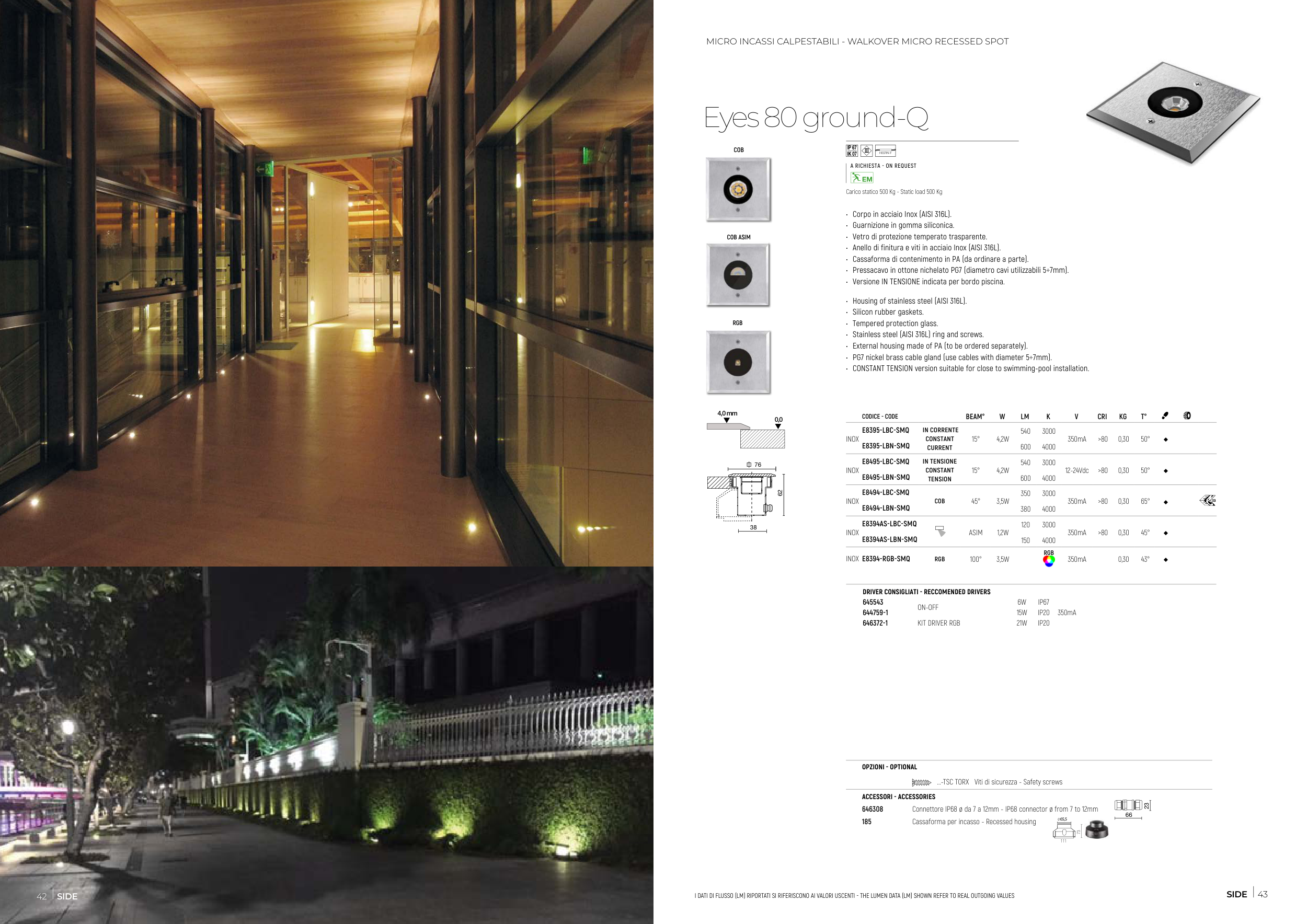

Eyes 80 ground-Q
• Corpo in acciaio Inox (AISI 316L).
• Guarnizione in gomma siliconica.
• Vetro di protezione temperato trasparente.
• Anello di finitura e viti in acciaio Inox (AISI 316L).
• Cassaforma di contenimento in PA (da ordinare a parte).
• Pressacavo in ottone nichelato PG7 (diametro cavi utilizzabili 5÷7mm).
• Versione IN TENSIONE indicata per bordo piscina.
• Housing of stainless steel (AISI 316L).
• Silicon rubber gaskets.
• Tempered protection glass.
• Stainless steel (AISI 316L) ring and screws.
• External housing made of PA (to be ordered separately).
• PG7 nickel brass cable gland (use cables with diameter 5÷7mm).
• CONSTANT TENSION version suitable for close to swimming-pool installation.
IP 67
IK 07
A RICHIESTA - ON REQUEST
Carico statico 500 Kg - Static load 500 Kg
MICRO INCASSI CALPESTABILI - WALKOVER MICRO RECESSED SPOT
RGB
COB
OPZIONI - OPTIONAL
...-TSC TORX Viti di sicurezza - Safety screws
ACCESSORI - ACCESSORIES
646308
Connettore IP68 ø da 7 a 12mm - IP68 connector ø from 7 to 12mm
185
Cassaforma per incasso - Recessed housing
ø 65,5
111
73
4,0 mm
0,0
76
38
62
CODICE - CODE
BEAM°
W
LM
K
V
CRI
KG
T°
INOX
E8395-LBC-SMQ
IN CORRENTE
CONSTANT
CURRENT
15°
4,2W
540
3000
350mA
>80
0,30
50°
◆
E8395-LBN-SMQ
600
4000
INOX
E8495-LBC-SMQ
IN TENSIONE
CONSTANT
TENSION
15°
4,2W
540
3000
12-24Vdc
>80
0,30
50°
◆
E8495-LBN-SMQ
600
4000
INOX
E8494-LBC-SMQ
COB
45°
3,5W
350
3000
350mA
>80
0,30
65°
◆
E8494-LBN-SMQ
380
4000
INOX
E8394AS-LBC-SMQ
ASIM
1,2W
120
3000
350mA
>80
0,30
45°
◆
E8394AS-LBN-SMQ
150
4000
INOX E8394-RGB-SMQ
RGB
100°
3,5W
RGB
350mA
0,30
43°
◆
66
23
DRIVER CONSIGLIATI - RECCOMENDED DRIVERS
645543
ON-OFF
6W
IP67
350mA
644759-1
15W
IP20
646372-1
KIT DRIVER RGB
21W
IP20
COB ASIM
SIDE 43
42 SIDE
