I DATI DI FLUSSO (LM) RIPORTATI SI RIFERISCONO AI VALORI USCENTI - THE LUMEN DATA (LM) SHOWN REFER TO REAL OUTGOING VALUES
MICRO INCASSI PLAFONE - PARETE CEILING/WALL MICRO RECESSED SPOTS
MICRO INCASSI PLAFONE - PARETE CEILING/WALL MICRO RECESSED SPOTS

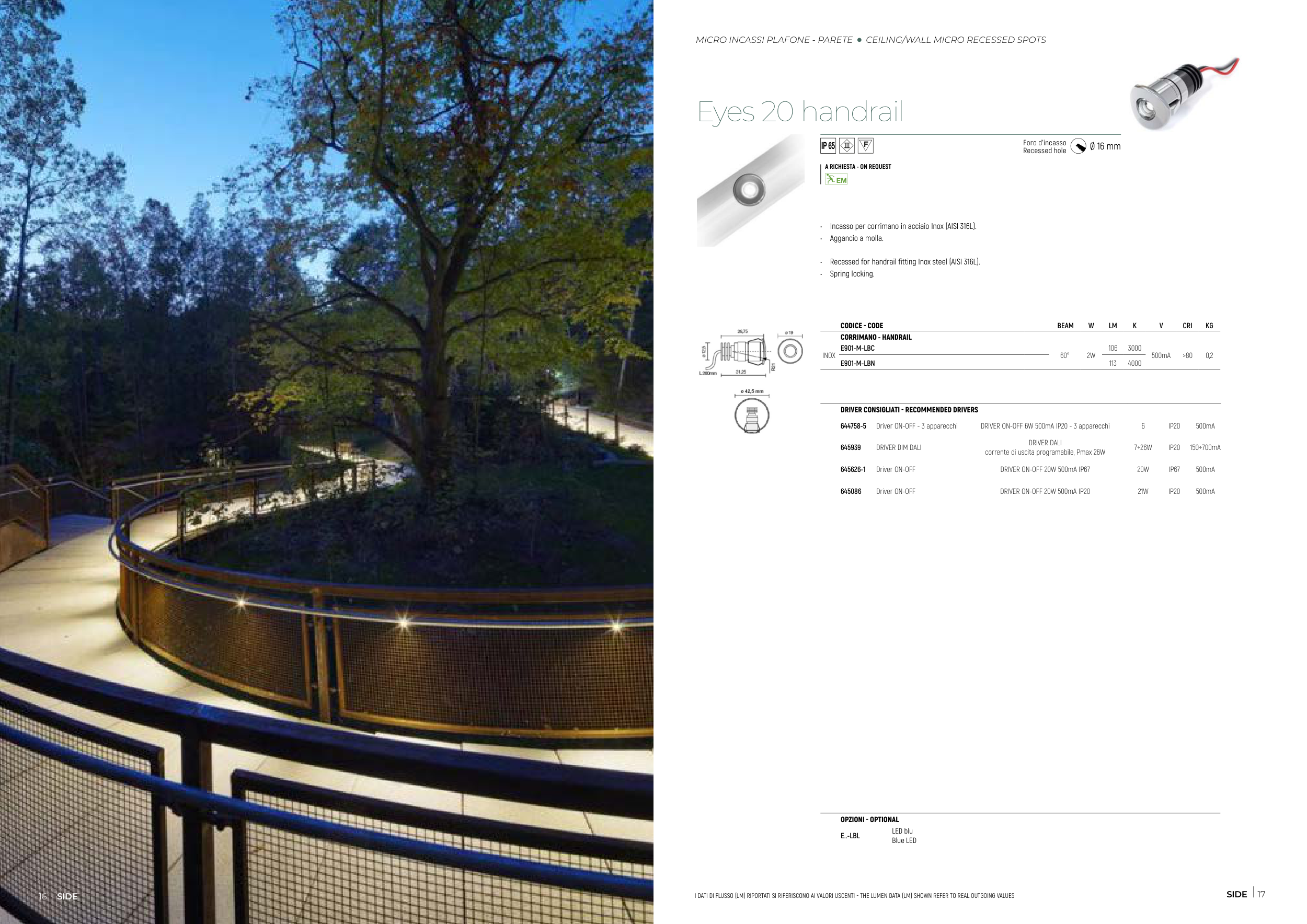

Eyes 20 handrail
Ø 16 mm
Foro d’incasso
Recessed hole
• Incasso per corrimano in acciaio Inox (AISI 316L).
• Aggancio a molla.
• Recessed for handrail fitting Inox steel (AISI 316L).
• Spring locking.
CODICE - CODE
BEAM
W
LM
K
V
CRI
KG
INOX
CORRIMANO - HANDRAIL
E901-M-LBC
60°
2W
106
3000
500mA
>80
0,2
E901-M-LBN
113
4000
OPZIONI - OPTIONAL
E..-LBL
LED blu
Blue LED
A RICHIESTA - ON REQUEST
DRIVER CONSIGLIATI - RECOMMENDED DRIVERS
644758-5
Driver ON-OFF - 3 apparecchi
DRIVER ON-OFF 6W 500mA IP20 - 3 apparecchi
6
IP20
500mA
645939
DRIVER DIM DALI
DRIVER DALI
corrente di uscita programabile, Pmax 26W
7÷26W
IP20
150÷700mA
645626-1
Driver ON-OFF
DRIVER ON-OFF 20W 500mA IP67
20W
IP67
500mA
645086
Driver ON-OFF
DRIVER ON-OFF 20W 500mA IP20
21W
IP20
500mA
SIDE 17
16 SIDE
