D O O R S
L pannello porta/door =[L foro muro/rough opening +( x3)]/4
Por ta scorrevole
FRAME SLIDING DOOR
BINARIO INTERNO AL FORO MURO CON 2 PANNELLI FISSI E 4 PANNELLI SCORREVOLI SU TRE VIE
THREE WAYS CEILING TRACK INSTALLED INSIDE THE ROUGH OPENING WITH 4 SLIDING DOORS
BINARIO INTERNO AL FORO MURO CON 4 PANNELLI SCORREVOLI SU QUATTRO VIE
FOUR WAYS CEILING TRACK INSTALLED INSIDE THE ROUGH OPENING WITH 4 SLIDING DOORS
a
a
a
a
b
a
a
a
L pannello porta= [L foro muro+( x4-b)]/6
a
L porta / door
L porta / door
L porta / door
L porta / door
L porta / door
L porta / door
L porta / door
L porta / door
L porta / door
L porta / door
L foro muro / rough opening
L foro muro / rough opening
sormonto/overlapping = 15,5mm
a
sormonto/overlapping = 15,5mm
a
aria tra pannelli affiancati scorrevoli/spacebetween doors = 4 mm
b

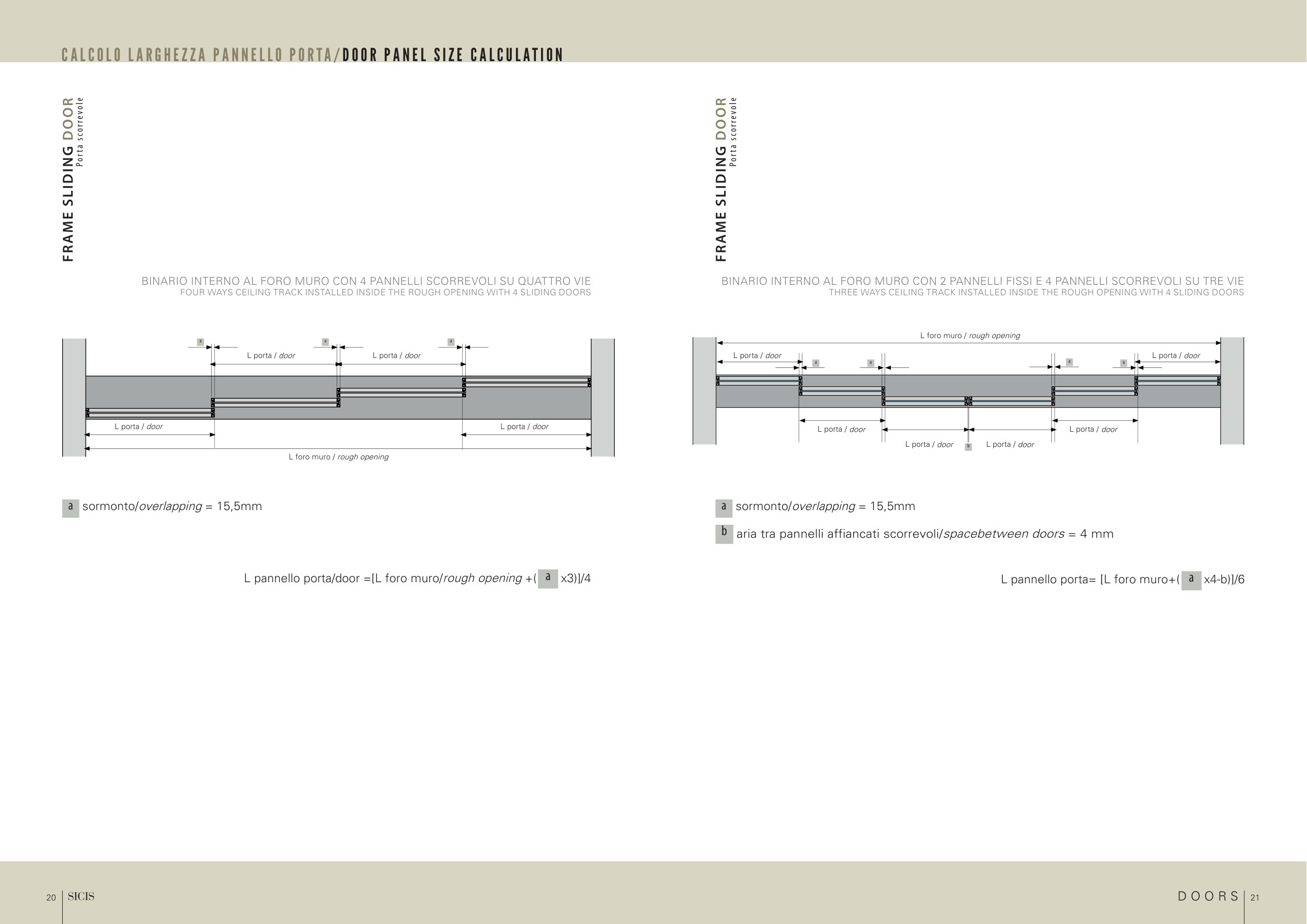

CALCOLO L ARGHEZZA PANNELLO PORTA/DOOR PANEL SIZE CALCUL ATION
Por ta scorrevole
FRAME SLIDING DOOR
a
