L foro muro / rough opening
L pannello porta / door
L pannello porta / door
L pannello porta / door panel
a
a
L foro muro / rough opening
a
a
L porta / door
L porta / door
a
b
Por ta scorrevole
FRAME SLIDING DOOR
BINARIO INTERNO AL FORO MURO CON 3 PANNELLI PORTA SU DUE VIE
DOUBLE CEILING TRACK INSTALLED INSIDE THE ROUGH OPENING WITH 3 SLIDING DOORS
BINARIO INTERNO AL FORO MURO CON 2 PANNELLI PORTA SU DUE VIE
DOUBLE CEILING TRACK INSTALLED INSIDE THE ROUGH OPENING WITH 2 SLIDING DOOR
BINARIO INTERNO A FORO MURO CON 2 PANNELLI FISSI E 2 SCORREVOLI SU UNA VIA
SINGLE CEILING TRACK INSTALLED INSIDE THE ROUGH OPENING WITH 2 FIXED DOOR PANELS AND 2 SLIDING DOORS
a
a
b
aria tra pannelli affiancati scorrevoli/spacebetween doors = 4 mm
b
sormonto/overlapping = 15,5mm
a
L pannello porta/door =[L foro muro/rough opening +( x2)]/3
sormonto/overlapping = 15,5mm
a
L pannello porta/door panel =(L foro muro/rough opening +( ) /2
a
L foro muro / rough opening
L pannello fisso / fixed panel
L pannello fisso / fixed panel
L pannello porta / door panel
L pannello porta / door panel
sormonto/overlapping = 15,5mm
a
a

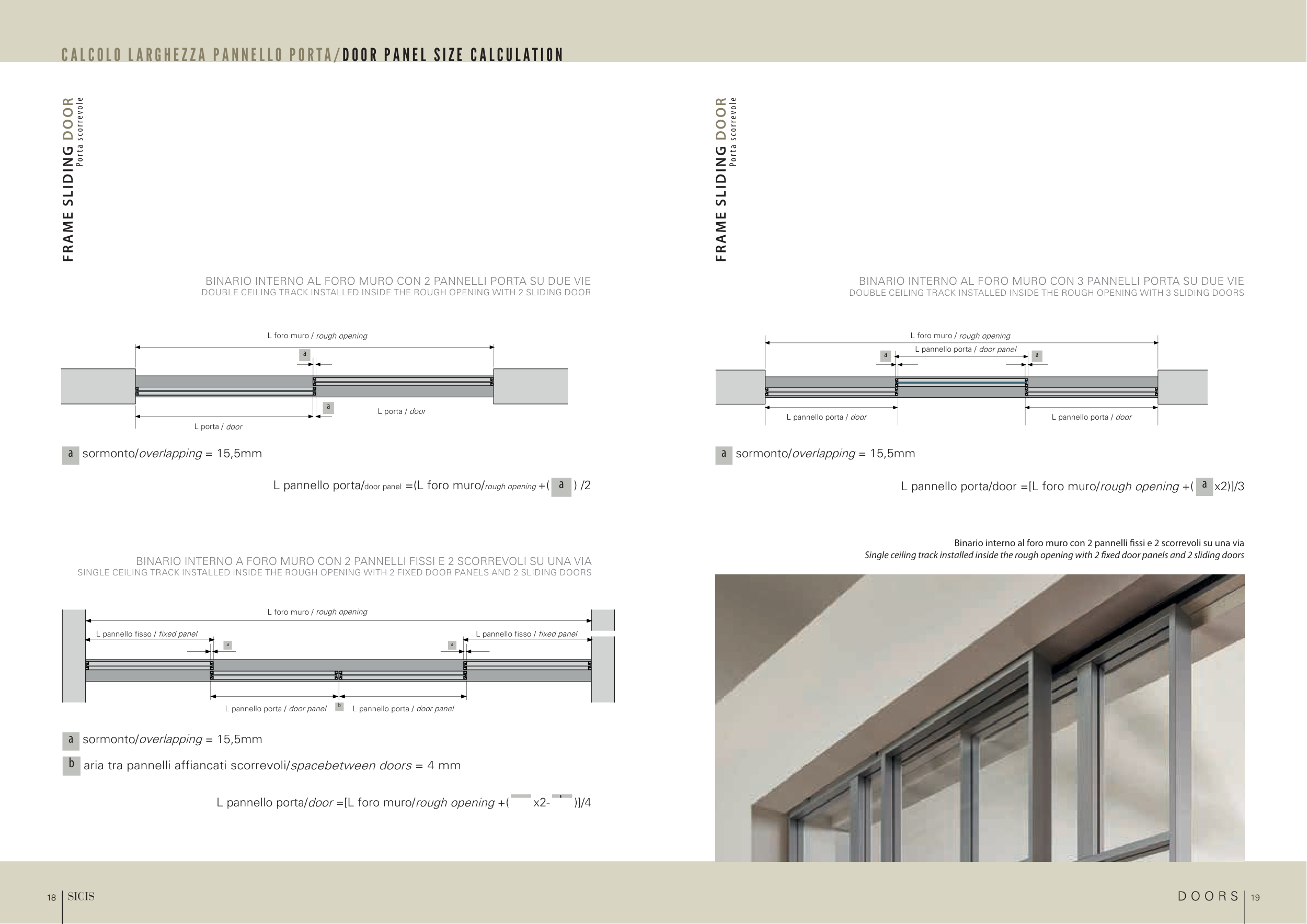

CALCOLO L ARGHEZZA PANNELLO PORTA/DOOR PANEL SIZE CALCUL ATION
Binario interno al foro muro con 2 pannelli fissi e 2 scorrevoli su una via
Single ceiling track installed inside the rough opening with 2 fixed door panels and 2 sliding doors
Por ta scorrevole
FRAME SLIDING DOOR
L pannello porta/door =[L foro muro/rough opening +( x2- )]/4
18
19
D O O R S
18
