ROSS GARDAM
VOLANT COLLECTION
W

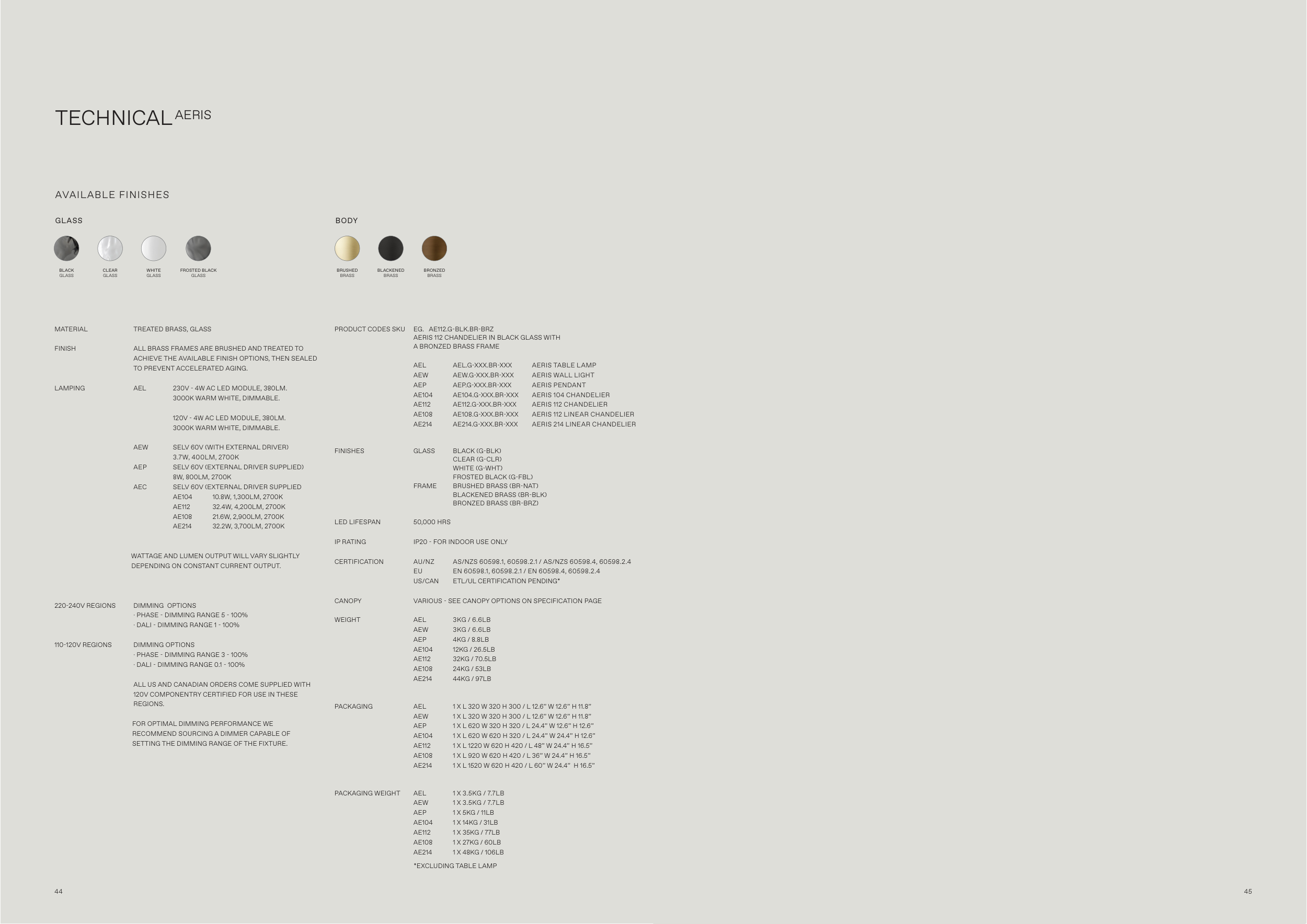

TECHNICAL AERIS
MATERIAL
TREATED BRASS, GLASS
FINISH
ALL BRASS FRAMES ARE BRUSHED AND TREATED TO
ACHIEVE THE AVAILABLE FINISH OPTIONS, THEN SEALED
TO PREVENT ACCELERATED AGING.
LAMPING
AEL
230V - 4W AC LED MODULE, 380LM.
3000K WARM WHITE, DIMMABLE.
120V - 4W AC LED MODULE, 380LM.
3000K WARM WHITE, DIMMABLE.
AEW
SELV 60V (WITH EXTERNAL DRIVER)
3.7W, 400LM, 2700K
AEP
SELV 60V (EXTERNAL DRIVER SUPPLIED)
8W, 800LM, 2700K
AEC
SELV 60V (EXTERNAL DRIVER SUPPLIED
AE104
10.8W, 1,300LM, 2700K
AE112
32.4W, 4,200LM, 2700K
AE108
21.6W, 2,900LM, 2700K
AE214
32.2W, 3,700LM, 2700K
WATTAGE AND LUMEN OUTPUT WILL VARY SLIGHTLY
DEPENDING ON CONSTANT CURRENT OUTPUT.
220-240V REGIONS
DIMMING OPTIONS
· PHASE - DIMMING RANGE 5 - 100%
· DALI - DIMMING RANGE 1 - 100%
110-120V REGIONS
DIMMING OPTIONS
· PHASE - DIMMING RANGE 3 - 100%
· DALI - DIMMING RANGE 0.1 - 100%
ALL US AND CANADIAN ORDERS COME SUPPLIED WITH
120V COMPONENTRY CERTIFIED FOR USE IN THESE
REGIONS.
FOR OPTIMAL DIMMING PERFORMANCE WE
RECOMMEND SOURCING A DIMMER CAPABLE OF
SETTING THE DIMMING RANGE OF THE FIXTURE.
PRODUCT CODES SKU
EG. AE112.G-BLK.BR-BRZ
AERIS 112 CHANDELIER IN BLACK GLASS WITH
A BRONZED BRASS FRAME
AEL
AEL.G-XXX.BR-XXX
AERIS TABLE LAMP
AEW
AEW.G-XXX.BR-XXX
AERIS WALL LIGHT
AEP
AEP.G-XXX.BR-XXX
AERIS PENDANT
AE104
AE104.G-XXX.BR-XXX
AERIS 104 CHANDELIER
AE112
AE112.G-XXX.BR-XXX
AERIS 112 CHANDELIER
AE108
AE108.G-XXX.BR-XXX
AERIS 112 LINEAR CHANDELIER
AE214
AE214.G-XXX.BR-XXX
AERIS 214 LINEAR CHANDELIER
FINISHES
GLASS
BLACK (G-BLK)
CLEAR (G-CLR)
WHITE (G-WHT)
FROSTED BLACK (G-FBL)
FRAME
BRUSHED BRASS (BR-NAT)
BLACKENED BRASS (BR-BLK)
BRONZED BRASS (BR-BRZ)
LED LIFESPAN
50,000 HRS
IP RATING
IP20 - FOR INDOOR USE ONLY
CERTIFICATION
AU/NZ
AS/NZS 60598.1, 60598.2.1 / AS/NZS 60598.4, 60598.2.4
EU
EN 60598.1, 60598.2.1 / EN 60598.4, 60598.2.4
US/CAN
ETL/UL CERTIFICATION PENDING*
CANOPY
VARIOUS - SEE CANOPY OPTIONS ON SPECIFICATION PAGE
WEIGHT
AEL
3KG / 6.6LB
AEW
3KG / 6.6LB
AEP
4KG / 8.8LB
AE104
12KG / 26.5LB
AE112
32KG / 70.5LB
AE108
24KG / 53LB
AE214
44KG / 97LB
PACKAGING
AEL
1 X L 320 W 320 H 300 / L 12.6” W 12.6” H 11.8”
AEW
1 X L 320 W 320 H 300 / L 12.6” W 12.6” H 11.8”
AEP
1 X L 620 W 320 H 320 / L 24.4” W 12.6” H 12.6”
AE104
1 X L 620 W 620 H 320 / L 24.4” W 24.4” H 12.6”
AE112
1 X L 1220 W 620 H 420 / L 48” W 24.4” H 16.5”
AE108
1 X L 920 W 620 H 420 / L 36” W 24.4” H 16.5”
AE214
1 X L 1520 W 620 H 420 / L 60” W 24.4” H 16.5”
PACKAGING WEIGHT
AEL
1 X 3.5KG / 7.7LB
AEW
1 X 3.5KG / 7.7LB
AEP
1 X 5KG / 11LB
AE104
1 X 14KG / 31LB
AE112
1 X 35KG / 77LB
AE108
1 X 27KG / 60LB
AE214
1 X 48KG / 106LB
BLACKENED
BRASS
BRUSHED
BRASS
BRONZED
BRASS
FROSTED BLACK
GLASS
BLACK
GLASS
CLEAR
GLASS
WHITE
GLASS
*EXCLUDING TABLE LAMP
44
45
AVAILABLE FINISHES
GLASS
BODY
