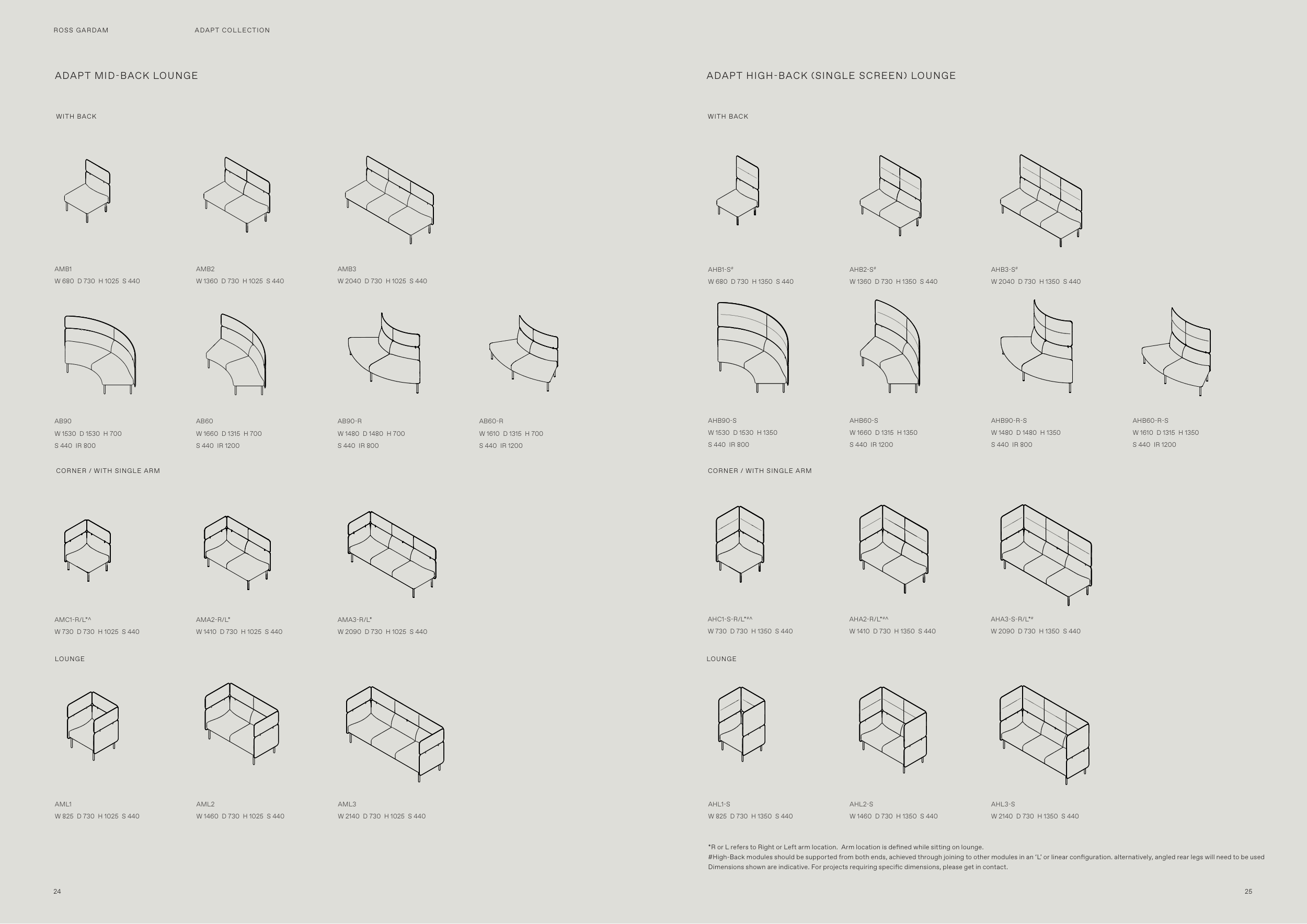

ROSS GARDAM
ADAPT COLLECTION
AMB1
W 680 D 730 H 1025 S 440
AMC1-R/L*^
W 730 D 730 H 1025 S 440
AML1
W 825 D 730 H 1025 S 440
AB90
W 1530 D 1530 H 700
S 440 IR 800
AMB2
W 1360 D 730 H 1025 S 440
AMA2-R/L*
W 1410 D 730 H 1025 S 440
AML2
W 1460 D 730 H 1025 S 440
AB60
W 1660 D 1315 H 700
S 440 IR 1200
AB60-R
W 1610 D 1315 H 700
S 440 IR 1200
AMB3
W 2040 D 730 H 1025 S 440
AMA3-R/L*
W 2090 D 730 H 1025 S 440
AML3
W 2140 D 730 H 1025 S 440
AB90-R
W 1480 D 1480 H 700
S 440 IR 800
AHB1-S#
W 680 D 730 H 1350 S 440
AHC1-S-R/L*#^
W 730 D 730 H 1350 S 440
AHL1-S
W 825 D 730 H 1350 S 440
AHB90-S
W 1530 D 1530 H 1350
S 440 IR 800
AHB2-S#
W 1360 D 730 H 1350 S 440
AHA2-R/L*#^
W 1410 D 730 H 1350 S 440
AHL2-S
W 1460 D 730 H 1350 S 440
AHB60-S
W 1660 D 1315 H 1350
S 440 IR 1200
AHB60-R-S
W 1610 D 1315 H 1350
S 440 IR 1200
AHB3-S#
W 2040 D 730 H 1350 S 440
AHA3-S-R/L*#
W 2090 D 730 H 1350 S 440
AHL3-S
W 2140 D 730 H 1350 S 440
AHB90-R-S
W 1480 D 1480 H 1350
S 440 IR 800
*R or L refers to Right or Left arm location. Arm location is defined while sitting on lounge.
#High-Back modules should be supported from both ends, achieved through joining to other modules in an ‘L’ or linear configuration. alternatively, angled rear legs will need to be used
Dimensions shown are indicative. For projects requiring specific dimensions, please get in contact.
LOUNGE
WITH BACK
CORNER / WITH SINGLE ARM
ADAPT HIGH-BACK (SINGLE SCREEN) LOUNGE
LOUNGE
WITH BACK
CORNER / WITH SINGLE ARM
ADAPT MID-BACK LOUNGE
