ROSS GARDAM
ADAPT COLLECTION
AT-310-A
MOVABLE TABLE
- 4 X LEGS
AT-310-B
END TABLE
- 2 X LEGS &
2 X BRACES
AT-310-D
CORNER TABLE
- 1 X LEG
& 4 X BRACES
AT-310-C
SUSPENDED TABLE
4 X BRACES
AHA2-D-R
AHB3-D
AHA2-D-L
AHL3-S
AHB2-S
AHL3-S
AHA3-D-L
AHA3-D-R
AHA3-D-L
AHL3-D
STRAIGHT BRACKET
Please Note: If High-Back modules are not supported from both ends, they will required angled stability legs (please get in contact for details).

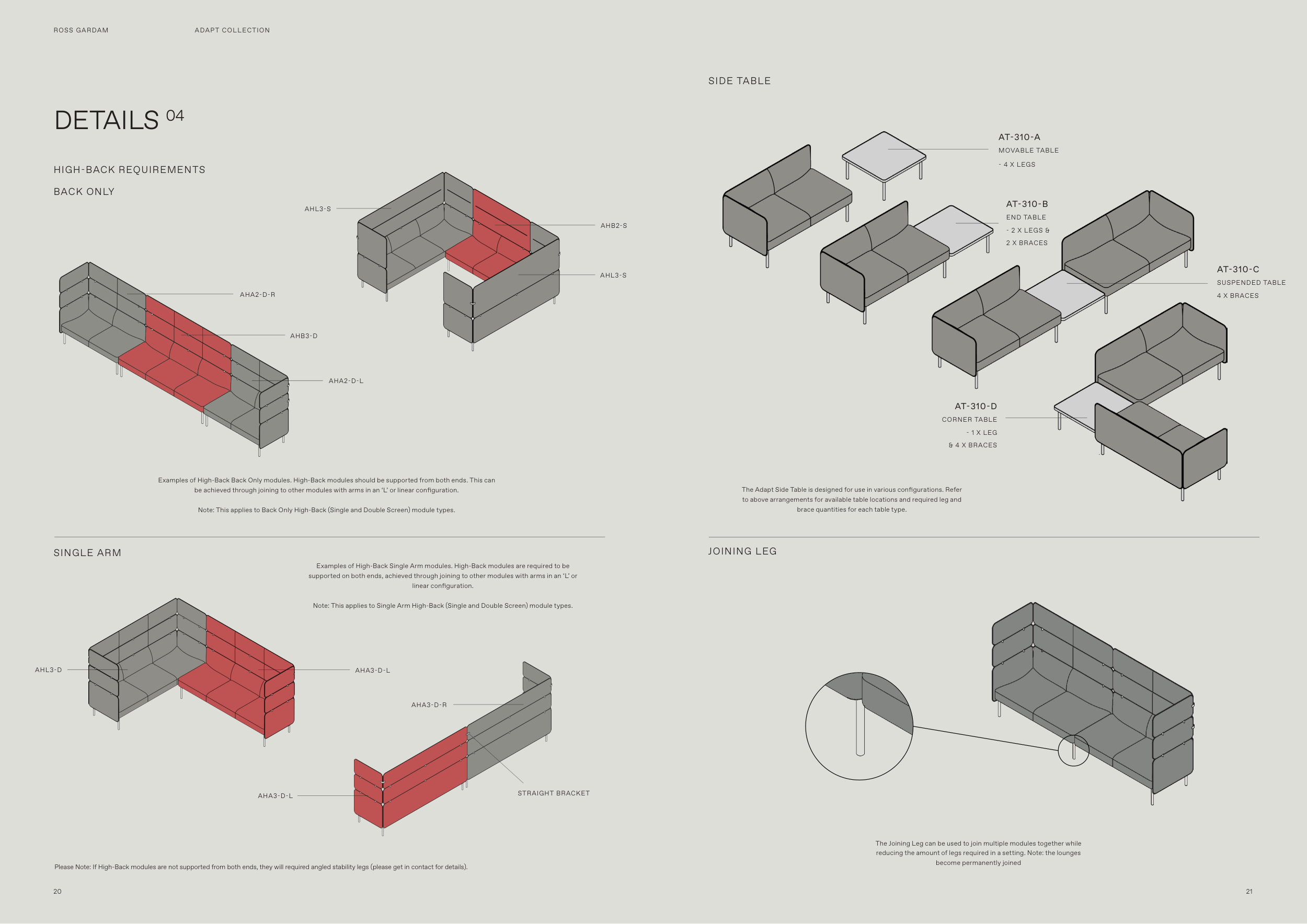

DETAILS 04
HIGH-BACK REQUIREMENTS
BACK ONLY
JOINING LEG
The Adapt Side Table is designed for use in various configurations. Refer
to above arrangements for available table locations and required leg and
brace quantities for each table type.
The Joining Leg can be used to join multiple modules together while
reducing the amount of legs required in a setting. Note: the lounges
become permanently joined
Examples of High-Back Back Only modules. High-Back modules should be supported from both ends. This can
be achieved through joining to other modules with arms in an ‘L’ or linear configuration.
Note: This applies to Back Only High-Back (Single and Double Screen) module types.
SINGLE ARM
Examples of High-Back Single Arm modules. High-Back modules are required to be
supported on both ends, achieved through joining to other modules with arms in an ‘L’ or
linear configuration.
Note: This applies to Single Arm High-Back (Single and Double Screen) module types.
SIDE TABLE
