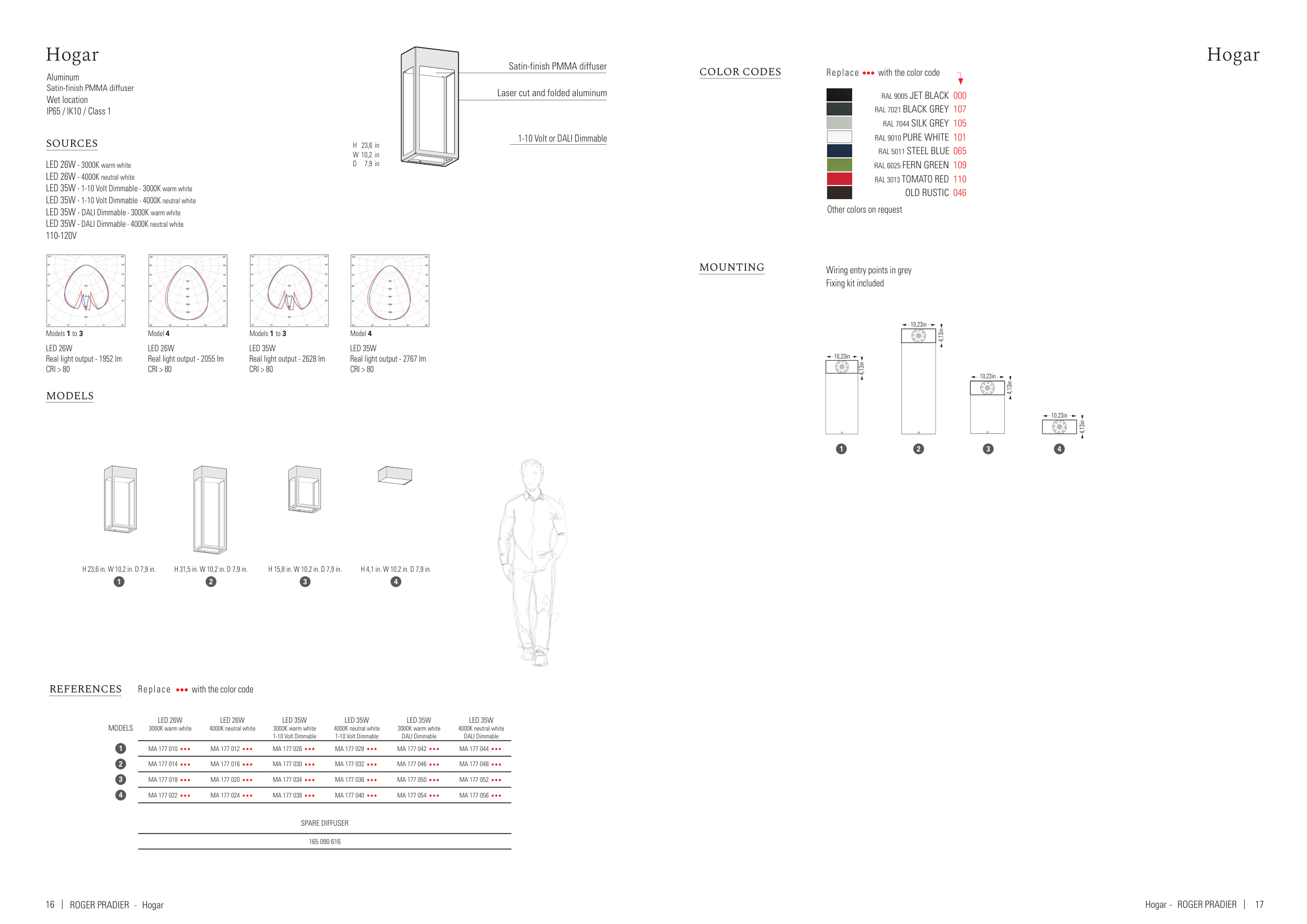

Hogar - ROGER PRADIER |
16 | ROGER PRADIER - Hogar
SOURCES
LED 26W - 3000K warm white
LED 26W - 4000K neutral white
LED 35W - 1-10 Volt Dimmable - 3000K warm white
LED 35W - 1-10 Volt Dimmable - 4000K neutral white
LED 35W - DALI Dimmable - 3000K warm white
LED 35W - DALI Dimmable - 4000K neutral white
110-120V
Laser cut and folded aluminum
1-10 Volt or DALI Dimmable
Satin-finish PMMA diffuser
H 23,6 in
W 10,2 in
D 7,9 in
MODELS
H 23,6 in. W 10,2 in. D 7,9 in.
1
H 31,5 in. W 10,2 in. D 7,9 in.
2
H 15,8 in. W 10,2 in. D 7,9 in.
3
H 4,1 in. W 10,2 in. D 7,9 in.
4
LED 26W
Real light output - 1952 lm
CRI > 80
Models 1 to 3
LED 26W
Real light output - 2055 lm
CRI > 80
Model 4
LED 35W
Real light output - 2628 lm
CRI > 80
Models 1 to 3
LED 35W
Real light output - 2767 lm
CRI > 80
Model 4
Hogar
Aluminum
Satin-finish PMMA diffuser
Wet location
IP65 / IK10 / Class 1
REFERENCES
R e p l a c e with the color code
SPARE DIFFUSER
165 090 616
MODELS
LED 26W
3000K warm white
LED 26W
4000K neutral white
LED 35W
3000K warm white
1-10 Volt Dimmable
LED 35W
4000K neutral white
1-10 Volt Dimmable
LED 35W
3000K warm white
DALI Dimmable
LED 35W
4000K neutral white
DALI Dimmable
1
MA 177 010
MA 177 012
MA 177 026
MA 177 028
MA 177 042
MA 177 044
2
MA 177 014
MA 177 016
MA 177 030
MA 177 032
MA 177 046
MA 177 048
3
MA 177 018
MA 177 020
MA 177 034
MA 177 036
MA 177 050
MA 177 052
4
MA 177 022
MA 177 024
MA 177 038
MA 177 040
MA 177 054
MA 177 056
COLOR CODES
RAL 9005 JET BLACK 000
RAL 7021 BLACK GREY 107
RAL 7044 SILK GREY 105
RAL 9010 PURE WHITE 101
RAL 5011 STEEL BLUE 065
RAL 6025 FERN GREEN 109
RAL 3013 TOMATO RED 110
OLD RUSTIC 046
MOUNTING
Wiring entry points in grey
Fixing kit included
R e p l a c e with the color code
Hogar
Other colors on request
2
3
4
10,23in
10,23in
1
10,23in
4,13in
4,13in
4,13in
10,23in
4,13in
