Replace with the color code
Replace with the color code or the material code
Other colors on request
MOUNTING
Wiring entry points in grey
Fixing kit included (except models 7, 8, 10)
Anchor bolts on request (models 7, 8, 10)
MODELS
E26
3
MA 149 003
4
MA 149 004
7
MA 149 007
8
MA 149 008
9
MA 149 009
10
MA 149 010
COLOR CODES
RAL 9005 JET BLACK 000
WHITE 001
OLD RUSTIC 046
GREEN PATINA 008
GOLD PATINA 009
4
3
7
8
10
9
MODELS
SOURCE
E26 - 100W max
H 8,7 in max
Light bulbs are not provided
110-120V
H 38,5 in. W 11,1 in.
9
H 106,6 in. W 11,8 in.
8
H 109,6 in. W 31,7in. D 11,8 in
7
H 129,9 in. W 11,8 in. D25,4 in.
10
H 39,4 in. W 11,1 in. D 22 in.
3
H 29 in. W 11,1 in. D 15,8 in.
4
H 24,4 in
W 11,1 in
Assembly of spot-welded aluminum metal
Glazed upper section
Clear glass diffuser

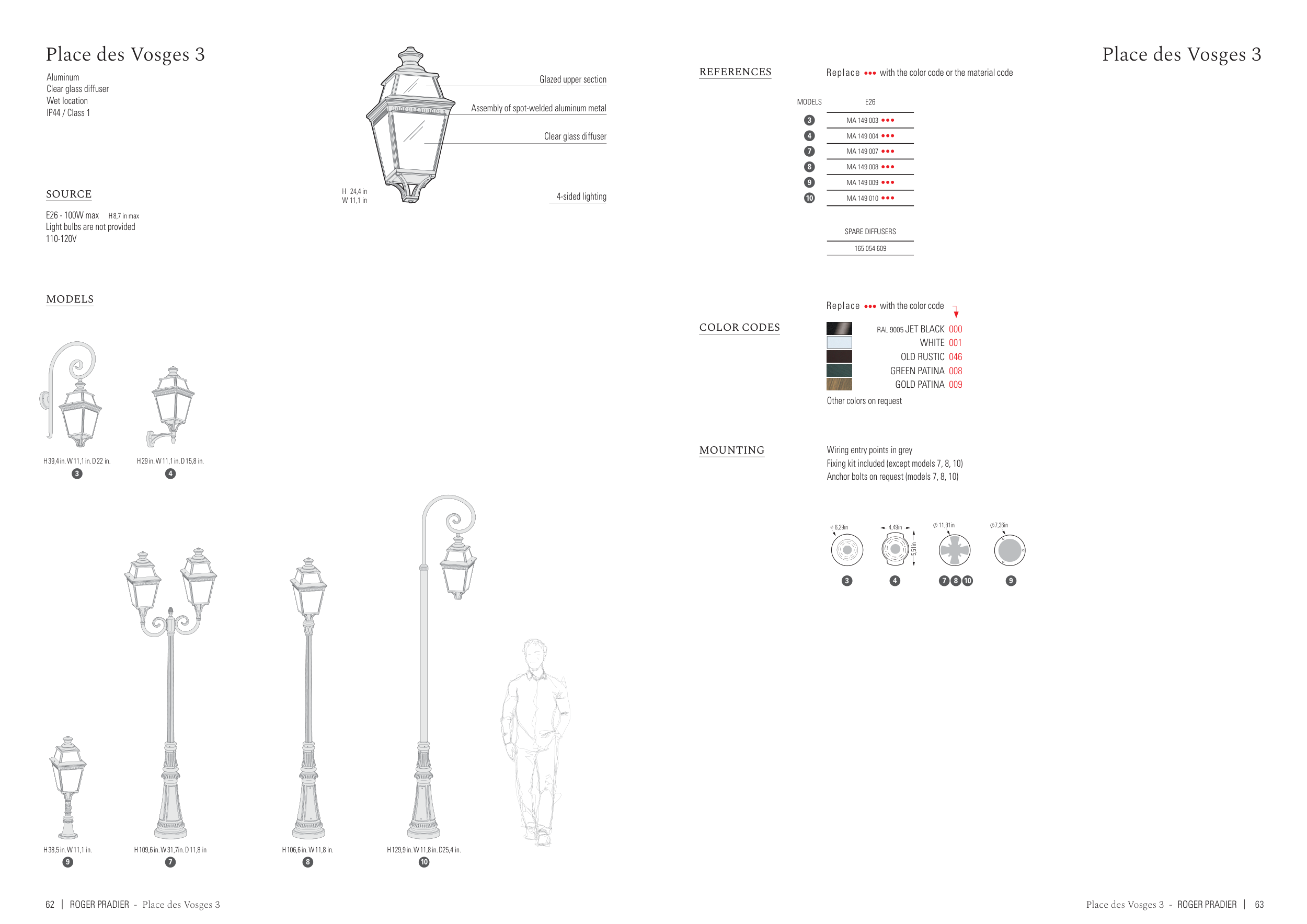

Place des Vosges 3
Aluminum
Clear glass diffuser
Wet location
IP44 / Class 1
Place des Vosges 3
SPARE DIFFUSERS
165 054 609
4-sided lighting
REFERENCES
63
63
Place des Vosges 3 - ROGER PRADIER |
| ROGER PRADIER - Place des Vosges 3
62
6,29in
4,49in
7,36in
11,81in
5,51in
