Replace with the color code
Replace with the color code or the material code
Other colors on request
REFERENCES
MOUNTING
Wiring entry points in grey
Fixing kit included (except models 10 and 11)
Anchor bolts on request (models 10 and 11)
MODELS
E26
1
MA 133 001
2
MA 133 003
7
MA 133 013
8
MA 133 015
10
MA 133 019
11
MA 133 021
COLOR CODES
RAL 9005 JET BLACK 000
RAL 7044 SILK GREY 105
RAL 3005 WINE RED 066
RAL 6009 BRITISH GREEN 019
RAL 6009 FIR GREEN 067
GOLD PATINA 009
2
1
11
10
7
8
MODELS
SOURCES
E26 - 100W max H 7,9 in max
Light bulbs are not provided
110-120V
E26 (2450 lm)
Real light output - 1491 lm
Models 1, 2
E26 (2450 lm)
Real light output - 1659 lm
Models 7 to 11
H 104,5 in. W 29,5 in.
10
H 2 824 in. W 29,4 in.
11
H 55,2 in. W 11,3 in.
8
H 33,5 in. W 11,3 in.
7
H 31,8 in. W 11,3 in
1
H 30,3 in. W 11,3 in. D 16 in.
2
H 19,1 in
W 11,3 in
One-piece clear blown glass diffuser
Aluminum sheet assembly
With Golden crown and pine cone
Louvre
Aluminum
Golden crown and pine cone (for all references)
Clear glass diffuser
Wet location
IP44 / Class 1
Louvre
Golden
crown and
pine cone
(for all references)
Golden crown
Golden pine cone

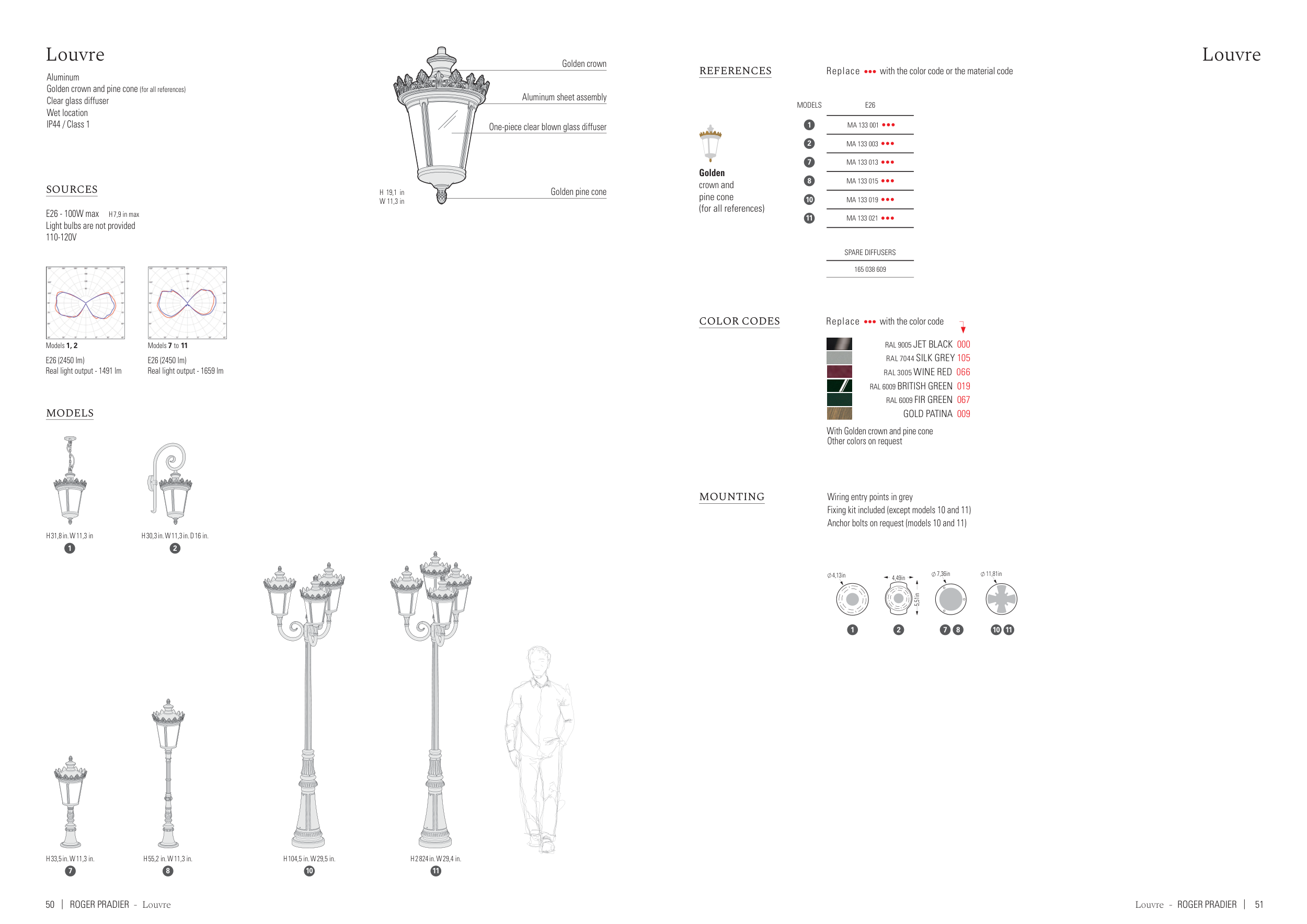

| ROGER PRADIER - Louvre
50
51
Louvre - ROGER PRADIER |
SPARE DIFFUSERS
165 038 609
4,13in
7,36in
11,81in
4,49in
5,51in
