26
27

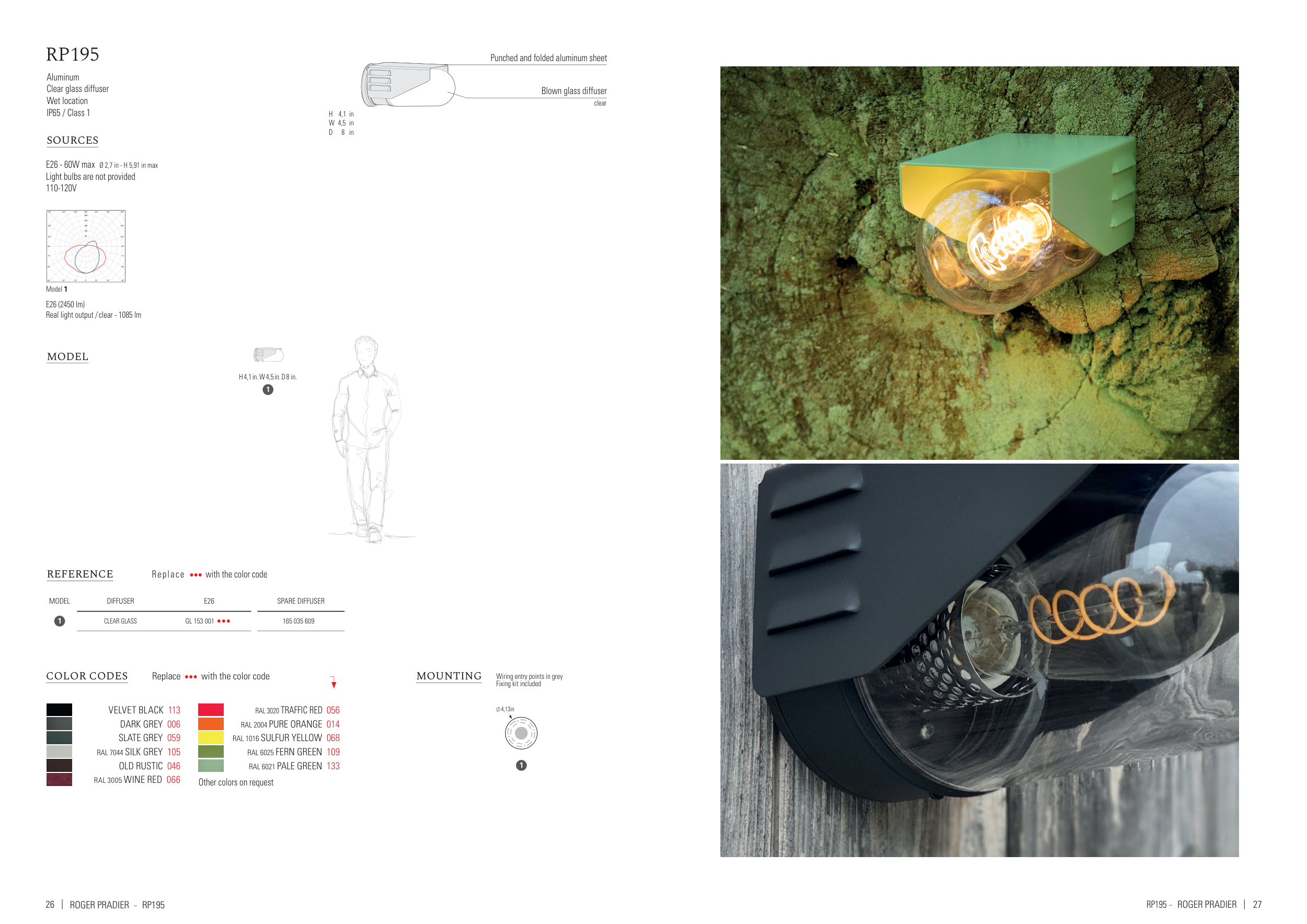

REFERENCE
R e p l a c e with the color code
| ROGER PRADIER - RP195
RP195 - ROGER PRADIER |
COLOR CODES
VELVET BLACK 113
DARK GREY 006
SLATE GREY 059
RAL 7044 SILK GREY 105
OLD RUSTIC 046
RAL 3005 WINE RED 066
Other colors on request
RAL 3020 TRAFFIC RED 056
RAL 2004 PURE ORANGE 014
RAL 1016 SULFUR YELLOW 068
RAL 6025 FERN GREEN 109
RAL 6021 PALE GREEN 133
MODEL
DIFFUSER
E26
SPARE DIFFUSER
1
CLEAR GLASS
GL 153 001
165 035 609
H 4,1 in. W 4,5 in. D 8 in.
1
MOUNTING
Wiring entry points in grey
Fixing kit included
1
Replace with the color code
MODEL
SOURCES
Blown glass diffuser
clear
Punched and folded aluminum sheet
E26 - 60W max Ø 2,7 in - H 5,91 in max
Light bulbs are not provided
110-120V
RP195
E26 (2450 lm)
Real light output / clear - 1085 lm
Model 1
H 4,1 in
W 4,5 in
D 8 in
Aluminum
Clear glass diffuser
Wet location
IP65 / Class 1
4,13in
