85
84
260
MODELS
DIFFUSERS
LED 35W
2700K warm white
LED 35W
3000K warm white
1
OPAL PMMA
175 232
175 223
SATIN-FINISH PMMA
175 233
175 224
2
PMMA TUBE
175 234
175 225
OPAL PMMA
175 235
175 226
SATIN-FINISH PMMA
175 236
175 227
4
PMMA TUBE
175 237
175 228
OPAL PMMA
175 238
175 229
SATIN-FINISH PMMA
175 239
175 230
PMMA TUBE
175 240
175 231
3
5
6
MODELS
DIFFUSERS
LED 35W
2700K warm white
LED 35W
3000K warm white
OPAL PMMA
175 032
175 023
SATIN-FINISH PMMA
175 033
175 024
PMMA TUBE
175 034
175 025
OPAL PMMA
175 035
175 026
SATIN-FINISH PMMA
175 036
175 027
PMMA TUBE
175 037
175 028
OPAL PMMA
175 038
175 029
SATIN-FINISH PMMA
175 039
175 030
PMMA TUBE
175 040
175 031
Cut and folded sheet metal assembly
spot welding
Two-colour version
Black grey 107
support
SPARE DIFFUSERS
OPAL PMMA
165 091 615
SATIN-FINISH PMMA
165 091 616
PMMA TUBE
165 092 612
H 551 mm
W 452 mm
Opal or satin-finish PMMA diffuser
Satin-finish PMMA tube
Ø150 (models 2,4, 6)
H 4 070 . W 452 . D 820
H 4 070 . W 452 . D 820
COLOUR CODES
R e p l a c e with the colour code
RAL 9005 JET BLACK 000
RAL 7021 BLACK GREY 107
RAL 7044 SILK GREY 105
RAL 9010 PURE WHITE 101
RAL 6009 FIR GREEN 067
RAL 3013 TOMATO RED 110
OLD RUSTIC 046
RAL 7044 SILK GREY 105
RAL 9010 PURE WHITE 101
RAL 6009 FIR GREEN 067
RAL 3013 TOMATO RED 110
REFERENCES
R e p l a c e with the colour code
Single-colour
version
MODELS
SOURCES
LED 35W - 2700K warm white
LED 35W - 3000K warm white

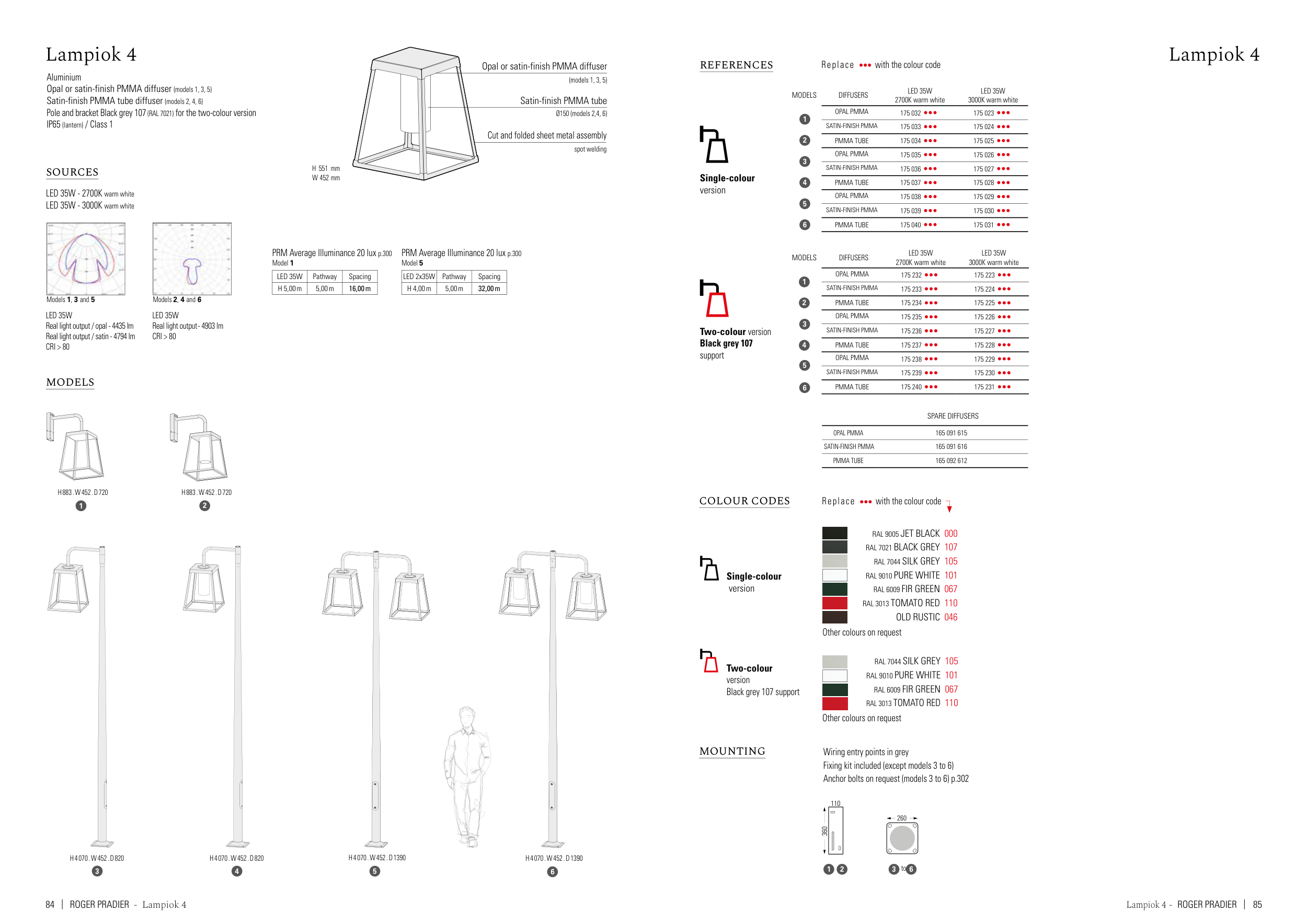

| ROGER PRADIER - Lampiok 4
LED 35W
Real light output - 4903 lm
CRI > 80
Models 2, 4 and 6
LED 35W
Real light output / opal - 4435 lm
Real light output / satin - 4794 lm
CRI > 80
Models 1, 3 and 5
4
3
H 883 . W 452 . D 720
1
H 883 . W 452 . D 720
2
MOUNTING
Wiring entry points in grey
Fixing kit included (except models 3 to 6)
Anchor bolts on request (models 3 to 6) p.302
1
2
3
6
to
H 4 070 . W 452 . D 1390
5
Lampiok 4
Aluminium
Opal or satin-finish PMMA diffuser (models 1, 3, 5)
Satin-finish PMMA tube diffuser (models 2, 4, 6)
Pole and bracket Black grey 107 (RAL 7021) for the two-colour version
IP65 (lantern) / Class 1
H 4 070 . W 452 . D 1390
6
Lampiok 4
Single-colour
version
Two-colour
version
Black grey 107 support
3
5
6
4
2
1
Lampiok 4 - ROGER PRADIER |
(models 1, 3, 5)
Other colours on request
Other colours on request
LED 35W
Pathway
Spacing
H 5,00 m
5,00 m
16,00 m
LED 2x35W Pathway
Spacing
H 4,00 m
5,00 m
32,00 m
PRM Average Illuminance 20 lux p.300
Model 1
PRM Average Illuminance 20 lux p.300
Model 5
