73
72
SWISS PLUG CH
type J
UK PLUG UK
type G
The standard Roger Pradier® plugs are SCHUKO plugs type F
Except for French plugs, replace ( ) with the country’s plug code
Replace with the colour code or the material code / replace ( ) with the country’s electrical plug code
250
MODELS
E27 (2450lm)
Pathway
Spacing
H 2,50 m
2,00 m
3,00 m
E27 (2450 lm)
Real light output / frosted - 1558 lm
Real light output / clear - 1673 lm
SOURCE
E27 - 52W max Ø 68 mm - H 150 mm max
| ROGER PRADIER - Lampiok 1
H 2 485 . W 821 . D 250
8
H 2 485 . W 250 . D 442
7
H 1 278 . W 224
4
H 340 . W 224
1
H 592 . W 224
2
H 877 . W 224
3
H 941 . W 224 . D 1 088
6
H 463 . W 224 . D 403
5
H 317 mm
W 224 mm
Cut and folded sheet metal assembly
Aluminium and Brass: spot welding
Copper: riveted copper sheet assembly
Aluminium, Brass or Copper
Chrome on request
clear or frosted

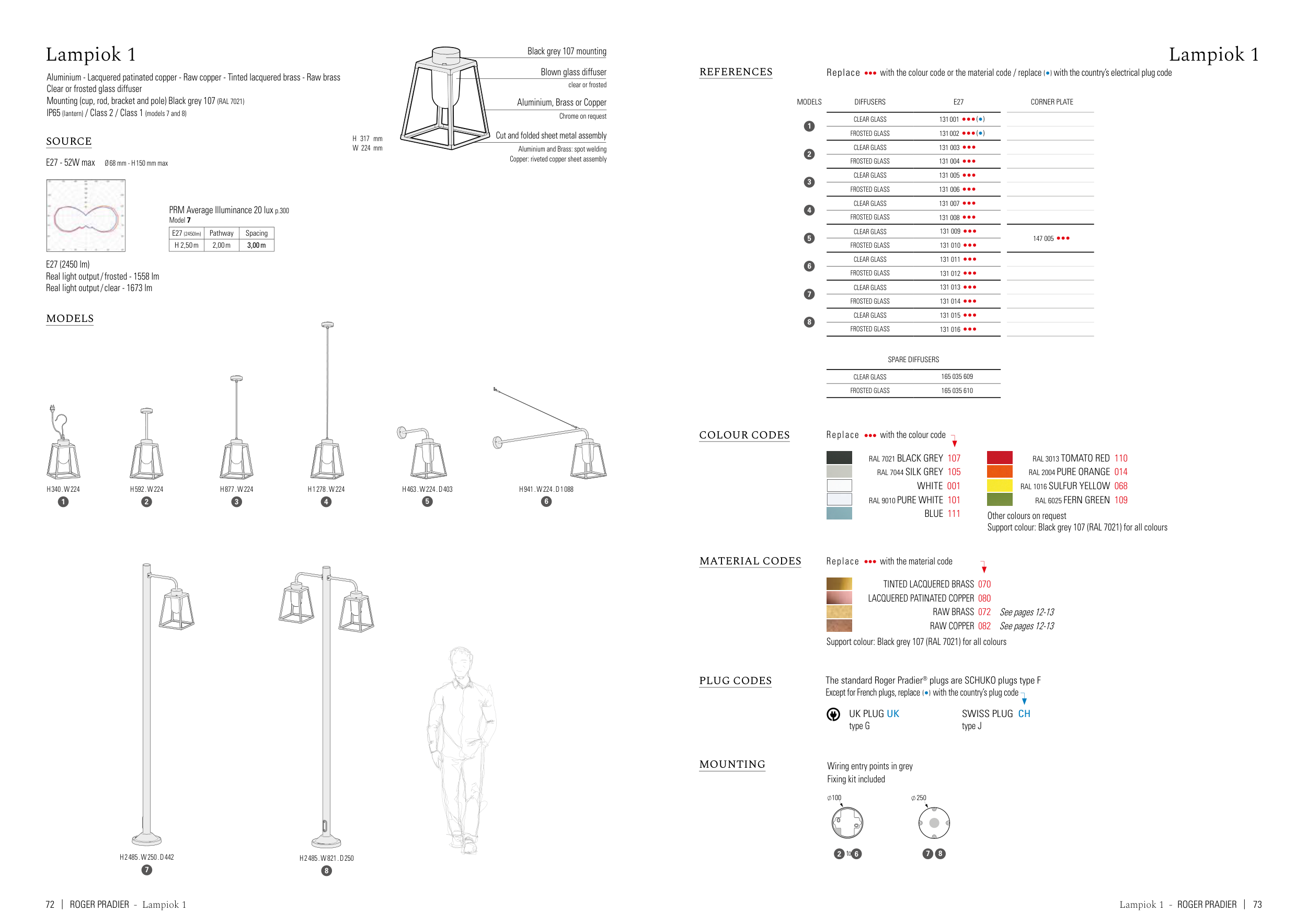

Lampiok 1
Aluminium - Lacquered patinated copper - Raw copper - Tinted lacquered brass - Raw brass
Clear or frosted glass diffuser
Mounting (cup, rod, bracket and pole) Black grey 107 (RAL 7021)
IP65 (lantern) / Class 2 / Class 1 (models 7 and 8)
Blown glass diffuser
Black grey 107 mounting
PRM Average Illuminance 20 lux p.300
Model 7
Other colours on request
REFERENCES
MOUNTING
Wiring entry points in grey
Fixing kit included
MATERIAL CODES
COLOUR CODES
R e p l a c e with the colour code
MODELS
DIFFUSERS
E27
CORNER PLATE
1
CLEAR GLASS
131 001 ( )
FROSTED GLASS
131 002 ( )
2
CLEAR GLASS
131 003
FROSTED GLASS
131 004
3
CLEAR GLASS
131 005
FROSTED GLASS
131 006
4
CLEAR GLASS
131 007
FROSTED GLASS
131 008
5
CLEAR GLASS
131 009
147 005
FROSTED GLASS
131 010
6
CLEAR GLASS
131 011
FROSTED GLASS
131 012
7
CLEAR GLASS
131 013
FROSTED GLASS
131 014
8
CLEAR GLASS
131 015
FROSTED GLASS
131 016
RAL 7021 BLACK GREY 107
RAL 7044 SILK GREY 105
WHITE 001
RAL 9010 PURE WHITE 101
BLUE 111
RAL 3013 TOMATO RED 110
RAL 2004 PURE ORANGE 014
RAL 1016 SULFUR YELLOW 068
RAL 6025 FERN GREEN 109
7
8
2
6
to
Support colour: Black grey 107 (RAL 7021) for all colours
Support colour: Black grey 107 (RAL 7021) for all colours
PLUG CODES
Lampiok 1
SPARE DIFFUSERS
CLEAR GLASS
165 035 609
FROSTED GLASS
165 035 610
R e p l a c e with the material code
Lampiok 1 - ROGER PRADIER |
TINTED LACQUERED BRASS 070
LACQUERED PATINATED COPPER 080
RAW BRASS 072
RAW COPPER 082
See pages 12-13
See pages 12-13
