40
41
SWISS PLUG CH
type J
UK PLUG UK
type G
The standard Roger Pradier® plugs are SCHUKO plugs type F
Except for French plugs, replace ( ) with the country’s plug code
Replace with the colour code / replace ( ) with the country’s electrical plug code
Other colours on request
SPARE DIFFUSER
165 085 609
La Hutte - ROGER PRADIER |
REFERENCES
MODELS
E27 - 23W max
SOURCE
| ROGER PRADIER - La Hutte
H 345 . W 320
1
H 560 . W 344
2
H 1 145 . W 380
3
COLOUR CODES
RAL 7021 BLACK GREY 107
RAL 9010 PURE WHITE 101
BLUE 111
RAL 3005 WINE RED 066
RAL 3013 TOMATO RED 110
RAL 2004 PURE ORANGE 014
RAL 6025 FERN GREEN 109
MODELS
E27
1
166 001 ( )
2
166 002 ( )
3
166 003 ( )
PLUG CODES
R e p l a c e with the colour code
Clear blown glass diffuser
Mobile collection, 5 m power cable
Spun Aluminium
Ø253 mm thickness 3 mm
H 345 mm
W 320 mm

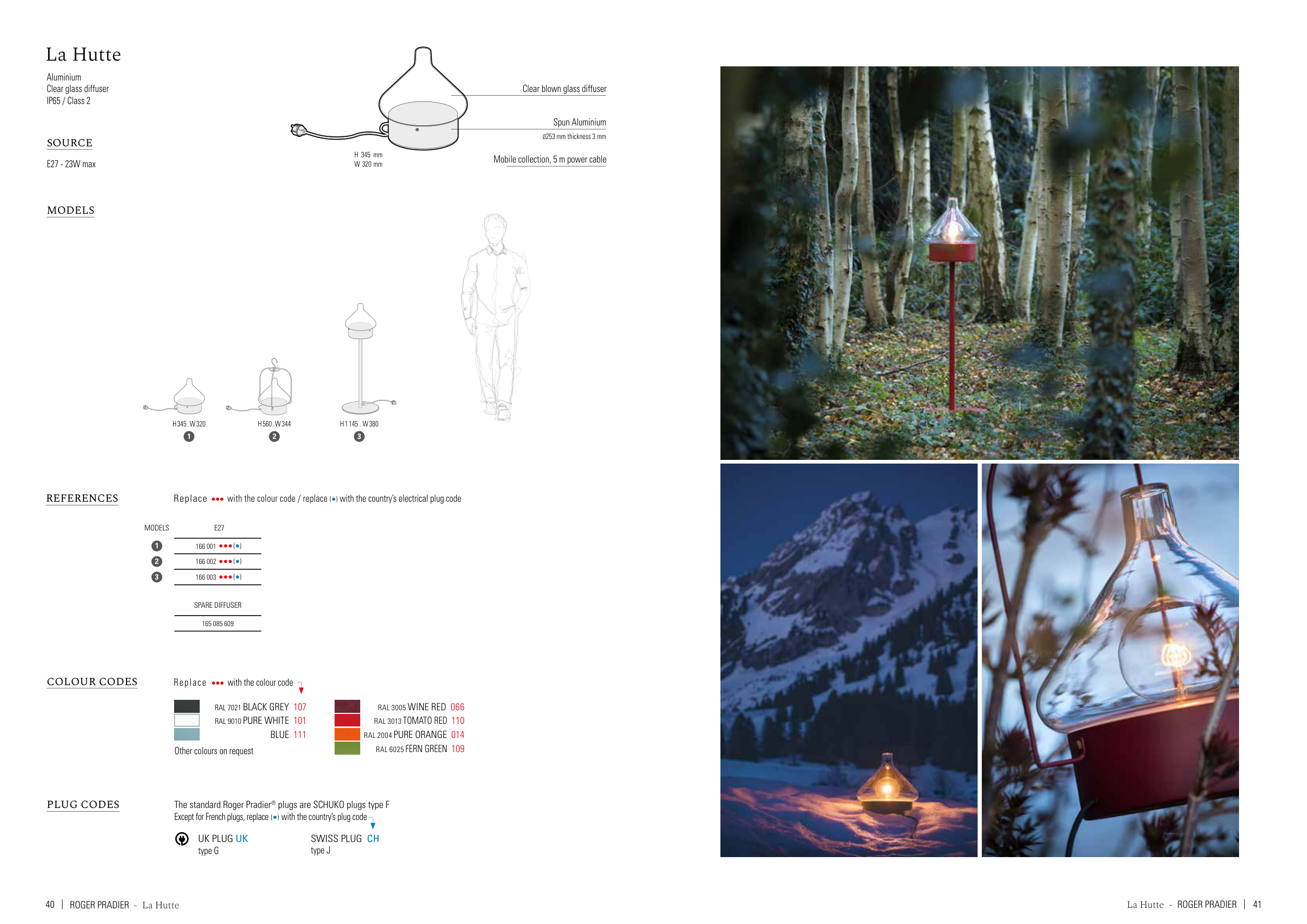

La Hutte
Aluminium
Clear glass diffuser
IP65 / Class 2
