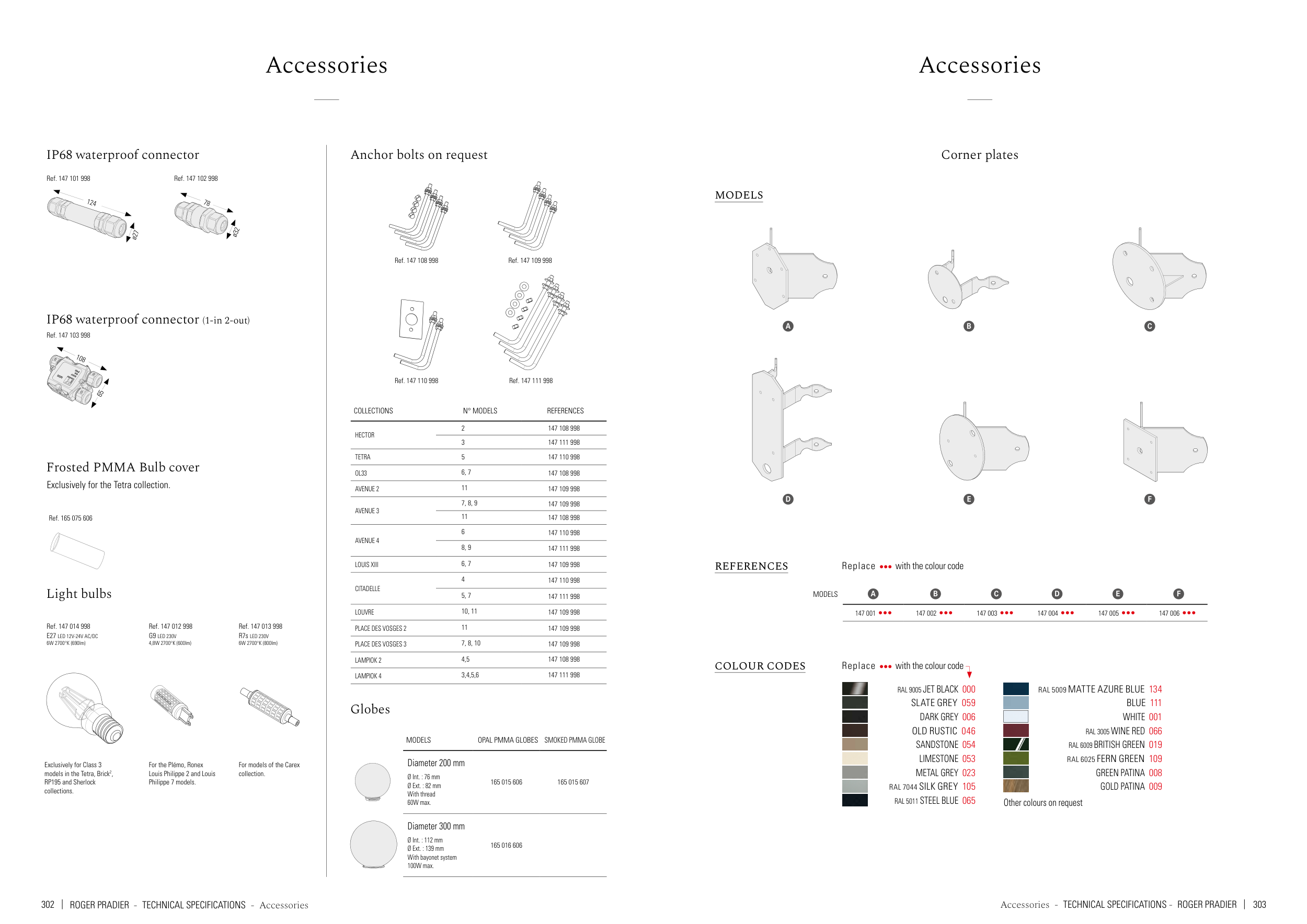

| ROGER PRADIER - TECHNICAL SPECIFICATIONS - Accessories
Accessories
MODELS
OPAL PMMA GLOBES
SMOKED PMMA GLOBE
Diameter 200 mm
Ø Int. : 76 mm
Ø Ext. : 82 mm
With thread
60W max.
165 015 606
165 015 607
Diameter 300 mm
Ø Int. : 112 mm
Ø Ext. : 139 mm
With bayonet system
100W max.
165 016 606
IP68 waterproof connector
IP68 waterproof connector (1-in 2-out)
Frosted PMMA Bulb cover
Exclusively for the Tetra collection.
Light bulbs
Anchor bolts on request
Globes
COLLECTIONS
N° MODELS
REFERENCES
HECTOR
2
147 108 998
3
147 111 998
TETRA
5
147 110 998
OL33
6, 7
147 108 998
AVENUE 2
11
147 109 998
AVENUE 3
7, 8, 9
147 109 998
11
147 108 998
AVENUE 4
6
147 110 998
8, 9
147 111 998
LOUIS XIII
6, 7
147 109 998
CITADELLE
4
147 110 998
5, 7
147 111 998
LOUVRE
10, 11
147 109 998
PLACE DES VOSGES 2
11
147 109 998
PLACE DES VOSGES 3
7, 8, 10
147 109 998
LAMPIOK 2
4,5
147 108 998
LAMPIOK 4
3,4,5,6
147 111 998
124
ø27
ø32
78
108
65
Ref. 147 102 998
Ref. 147 108 998
Ref. 147 110 998
Ref. 147 111 998
Ref. 147 109 998
Ref. 147 101 998
Ref. 147 103 998
Ref. 165 075 606
E27 LED 12V-24V AC/DC
6W 2700°K (690lm)
G9 LED 230V
4,8W 2700°K (600lm)
R7s LED 230V
6W 2700°K (800lm)
Ref. 147 014 998
For the Plémo, Ronex
Louis Philippe 2 and Louis
Philippe 7 models.
For models of the Carex
collection.
Exclusively for Class 3
models in the Tetra, Brick2,
RP195 and Sherlock
collections.
Ref. 147 012 998
Ref. 147 013 998
Replace with the colour code
Replace with the colour code
Accessories - TECHNICAL SPECIFICATIONS - ROGER PRADIER |
Accessories
REFERENCES
MODELS
MODELS
A
B
C
D
E
F
147 001
147 002
147 003
147 004
147 005
147 006
B
E
A
D
C
F
Corner plates
COLOUR CODES
RAL 9005 JET BLACK 000
SLATE GREY 059
DARK GREY 006
OLD RUSTIC 046
SANDSTONE 054
LIMESTONE 053
METAL GREY 023
RAL 7044 SILK GREY 105
RAL 5011 STEEL BLUE 065
RAL 5009 MATTE AZURE BLUE 134
BLUE 111
WHITE 001
RAL 3005 WINE RED 066
RAL 6009 BRITISH GREEN 019
RAL 6025 FERN GREEN 109
GREEN PATINA 008
GOLD PATINA 009
Other colours on request
