256
TINTED LACQUERED BRASS 070
RAW BRASS 072
Other colours on request
257
R e p l a c e with the colour code or the material code
MOUNTING
Wiring entry points in grey
Fixing kit included (except model 11)
Anchor bolts on request (model 11) p.302
R e p l a c e with the colour code
Avenue 2 - ROGER PRADIER |
MODELS
DIFFUSERS
E27
LED 10W
2700K warm white
LED 13W
2700K warm white
CORNER PLATES
1
CLEAR GLASS
102 001
102 102
OPAL PMMA
102 103
2
CLEAR GLASS
102 004
102 105
147 001
OPAL PMMA
102 106
3
CLEAR GLASS
102 007
102 108
4
CLEAR GLASS
102 010
102 111
147 004
OPAL PMMA
102 112
5
CLEAR GLASS
102 013
102 114
OPAL PMMA
102 115
6
CLEAR GLASS
102 016
102 117
OPAL PMMA
102 118
7
CLEAR GLASS
102 019
102 120
147 004
OPAL PMMA
102 121
8
CLEAR GLASS
102 022
102 123
OPAL PMMA
102 124
9
CLEAR GLASS
102 025
102 126
OPAL PMMA
102 127
11
CLEAR GLASS
102 028
102 129
OPAL PMMA
102 130
RAL 9005 JET BLACK 000
RAL 6009 BRITISH GREEN 019
RAL 6009 FIR GREEN 067
GREEN PATINA 008
GOLD PATINA 009
1
11
2
3
4
7
8
6
5
9
COLOUR CODES
MATERIAL CODES
With Aluminium base Jet black 000 (RAL 9005)
MODELS
LED 13W
Real light output / opal - 677 lm
Real light output / clear - 728 lm
CRI > 80
Models 1 to 11 except 3
LED 13W
Real light output - 477 lm
CRI > 80
Model 3
E27 (2450 lm)
Real light output - 653 lm
Models 1, 2, 4, 8
E27 (2450 lm)
Real light output - 1463 lm
Models 5, 6, 7, 9, 11
E27 (1520 lm)
Real light output - 771 lm
Model 3
LED 13W
Pathway
Spacing
H 2,00 m
2,00 m
6,00 m
H 454 mm
W 240 mm
SOURCES
LED 10W - 2700K warm white
LED 13W - 2700K warm white
E27 - 105W max H 200 mm max (except model 3)
Ø 66 mm - H 200 mm max (model 3)
| ROGER PRADIER - Avenue 2
H 790 . W 240
1
H 743 . W 240 . D 384
2
H 436 . W 240 . D 131
3
H 550 . W 240 . D 337
4
H 641 . W 240 . D 337
7
H 552 . W 240
5
H 695 . W 240
6
H 2 332 - 2 773 . W 263 . D 626
8
H 2 044 . W 240
9
H 2 619 . W 797
11
IP65 LED module
Assembly of spot-welded sheet metal
Diffuser
clear glass or opal PMMA

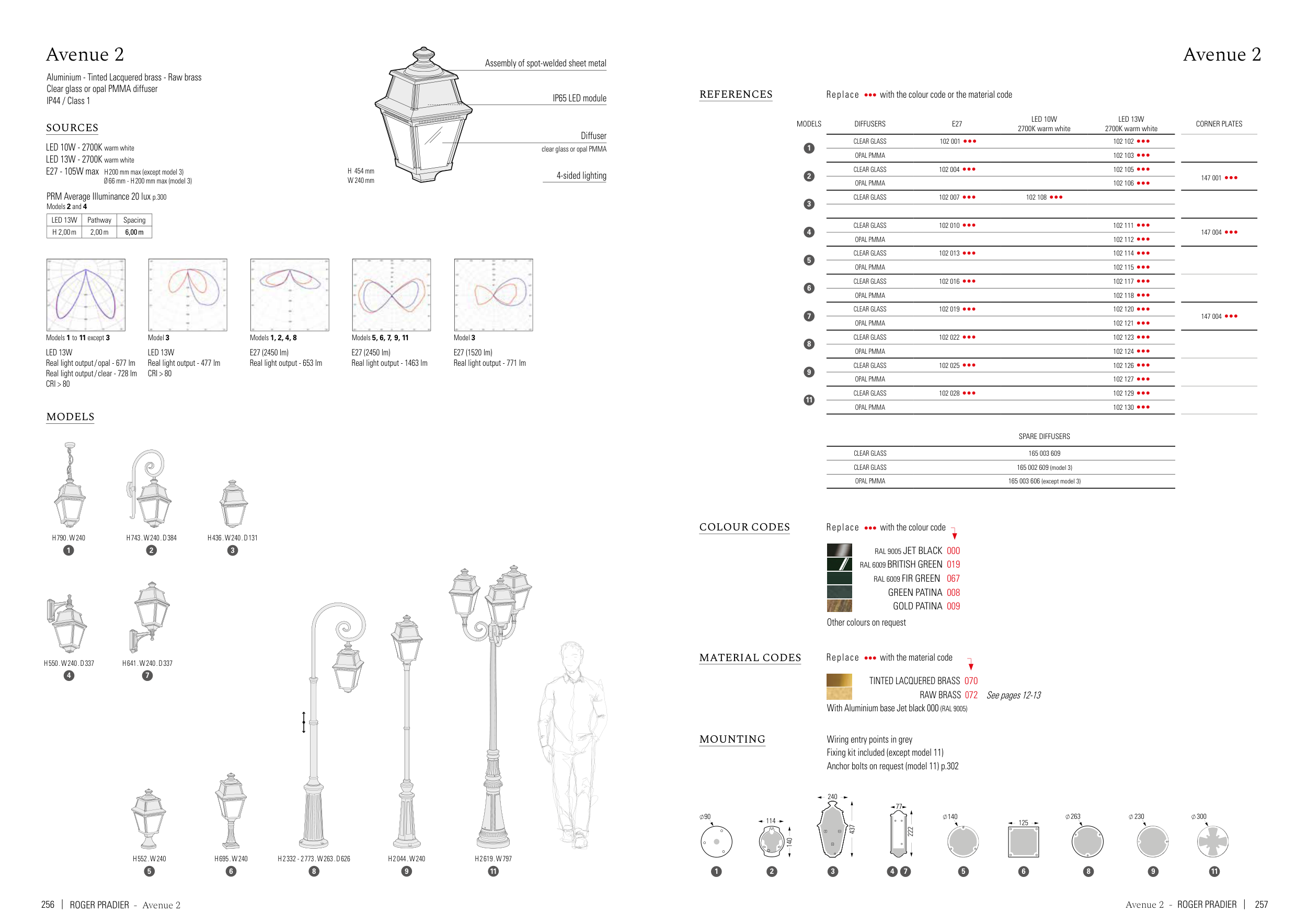

Avenue 2
Aluminium - Tinted Lacquered brass - Raw brass
Clear glass or opal PMMA diffuser
IP44 / Class 1
Avenue 2
REFERENCES
SPARE DIFFUSERS
CLEAR GLASS
165 003 609
CLEAR GLASS
165 002 609 (model 3)
OPAL PMMA
165 003 606 (except model 3)
R e p l a c e with the material code
4-sided lighting
PRM Average Illuminance 20 lux p.300
Models 2 and 4
See pages 12-13
