250
TINTED LACQUERED BRASS 070
RAW BRASS 072
Other colours on request
251
REFERENCES
R e p l a c e with the colour code or the material code
MOUNTING
Wiring entry points in grey
Fixing kit included (except models 7, 8, 10)
Anchor bolts on request (models 7, 8, 10) p.302
Place des Vosges 3 - ROGER PRADIER |
MODELS
E27
CORNER PLATES
1
149 001
2
149 002
3
149 003
147 003
4
149 004
147 001
5
149 005
6
149 006
7
149 007
8
149 008
9
149 009
10
149 010
COLOUR CODES
R e p l a c e with the colour code
RAL 9005 JET BLACK 000
WHITE 001
OLD RUSTIC 046
GREEN PATINA 008
GOLD PATINA 009
MATERIAL CODES
6
5
4
3
2
1
7
8
10
9
MODELS
SOURCE
E27 - 105W max
H 220 mm max (except model 2)
Ø 66 mm - H 200 mm max (model 2)
| ROGER PRADIER - Place des Vosges 3
H 2 110 - 2 650 . W 282
6
H 981 . W 282
9
H 874 . W 282
5
H 2 709 . W 300
8
H 2 775 . W 826 . D 300
7
H 3 300 . W 300 . D 645
10
H 1 060 . W 282
1
H 536 . W 282 . D 152
2
H 1 009 . W 282 . D 563
3
H 740 . W 282 . D 405
4
H 621 mm
W 282 mm
Assembly of spot-welded sheet metal
Glazed upper section
Clear glass diffuser

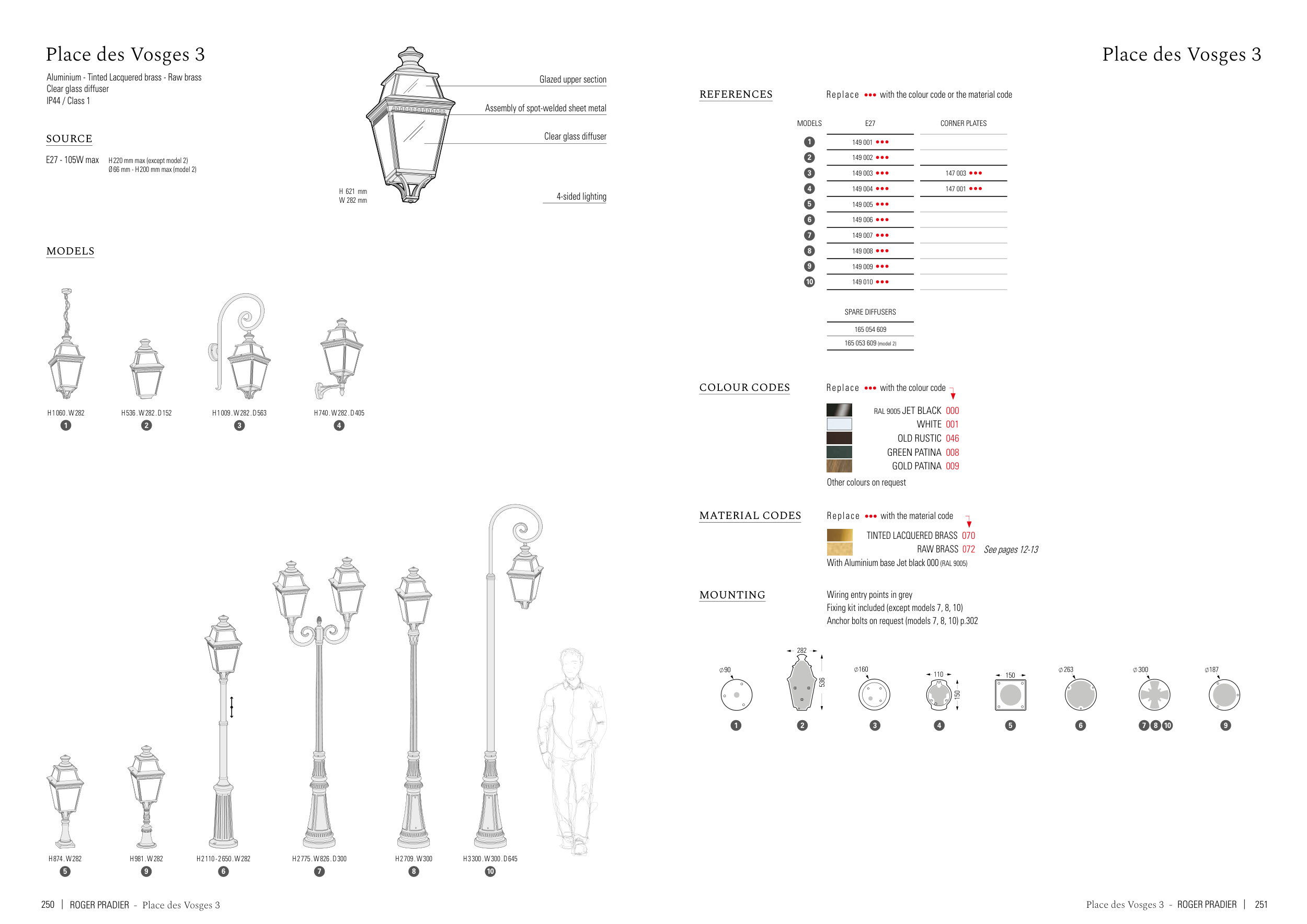

Place des Vosges 3
Aluminium - Tinted Lacquered brass - Raw brass
Clear glass diffuser
IP44 / Class 1
Place des Vosges 3
SPARE DIFFUSERS
165 054 609
165 053 609 (model 2)
With Aluminium base Jet black 000 (RAL 9005)
R e p l a c e with the material code
4-sided lighting
See pages 12-13
