222
LACQUERED PATINATED COPPER 080
RAW COPPER 082
RAL 9005 JET BLACK 000
RAL 7044 SILK GREY 105
RAL 3005 WINE RED 066
RAL 6009 BRITISH GREEN 019
RAL 6009 FIR GREEN 067
GOLD PATINA 009
With Aluminium base Jet black 000 (RAL 9005)
Other colours on request
223
REFERENCES
R e p l a c e with the colour code or the material code
MOUNTING
Wiring entry points in grey
Fixing kit included (except models 10 and 11)
Anchor bolts on request (models 10 and 11) p.302

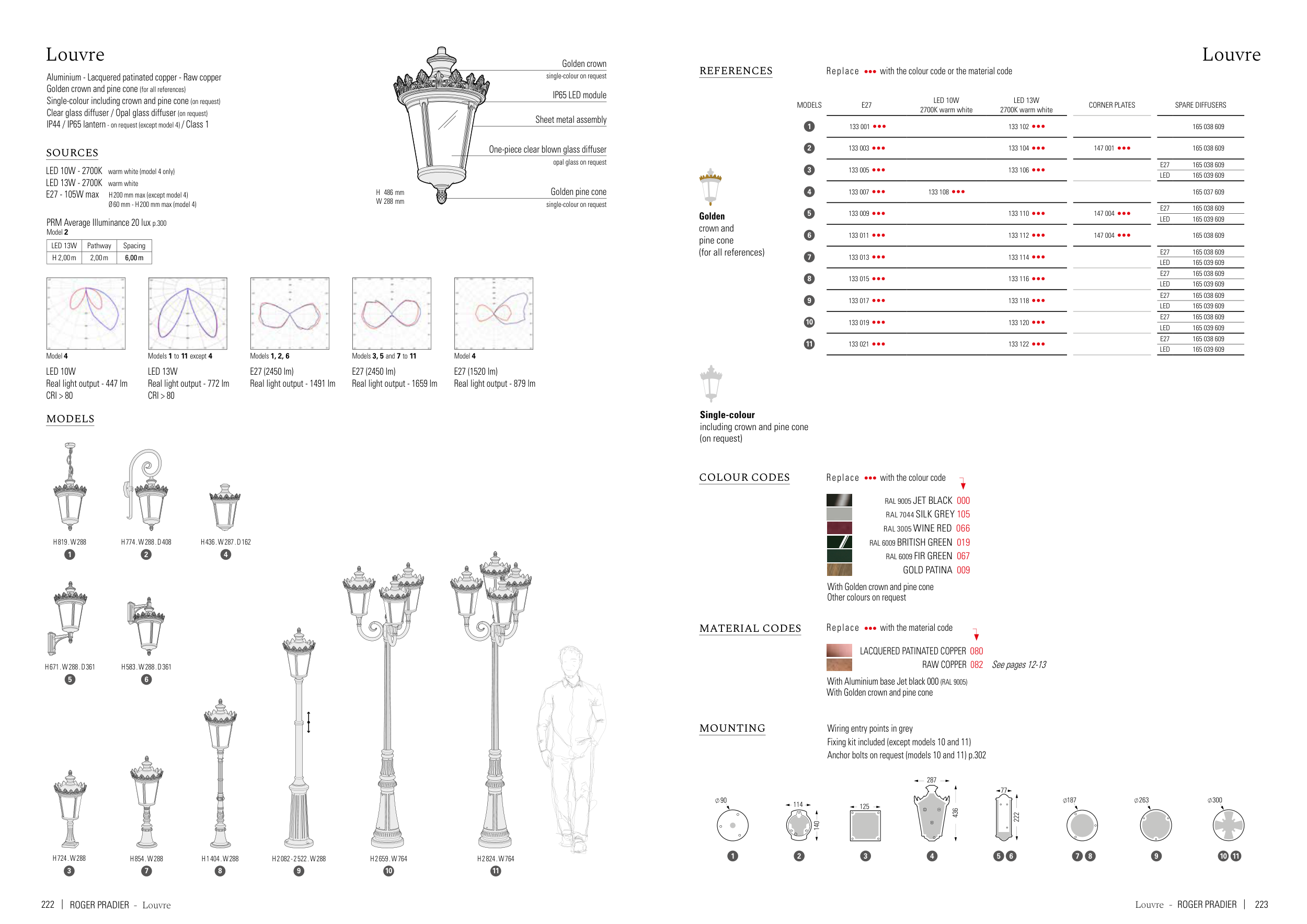

Louvre - ROGER PRADIER |
MODELS
E27
LED 10W
2700K warm white
LED 13W
2700K warm white
CORNER PLATES
SPARE DIFFUSERS
1
133 001
133 102
165 038 609
2
133 003
133 104
147 001
165 038 609
3
133 005
133 106
E27
165 038 609
LED
165 039 609
4
133 007
133 108
165 037 609
5
133 009
133 110
147 004
E27
165 038 609
LED
165 039 609
6
133 011
133 112
147 004
165 038 609
7
133 013
133 114
E27
165 038 609
LED
165 039 609
8
133 015
133 116
E27
165 038 609
LED
165 039 609
9
133 017
133 118
E27
165 038 609
LED
165 039 609
10
133 019
133 120
E27
165 038 609
LED
165 039 609
11
133 021
133 122
E27
165 038 609
LED
165 039 609
COLOUR CODES
R e p l a c e with the colour code
MATERIAL CODES
4
3
2
1
11
10
9
5
6
7
8
MODELS
LED 13W
Real light output - 772 lm
CRI > 80
Models 1 to 11 except 4
LED 13W
Pathway
Spacing
H 2,00 m
2,00 m
6,00 m
SOURCES
LED 10W - 2700K warm white (model 4 only)
LED 13W - 2700K warm white
E27 - 105W max H 200 mm max (except model 4)
Ø 60 mm - H 200 mm max (model 4)
| ROGER PRADIER - Louvre
LED 10W
Real light output - 447 lm
CRI > 80
Model 4
E27 (2450 lm)
Real light output - 1491 lm
Models 1, 2, 6
E27 (2450 lm)
Real light output - 1659 lm
Models 3, 5 and 7 to 11
E27 (1520 lm)
Real light output - 879 lm
Model 4
H 583 . W 288 . D 361
6
H 2 082 - 2 522 . W 288
9
H 2 659 . W 764
10
H 2 824 . W 764
11
H 1 404 . W 288
8
H 854 . W 288
7
H 724 . W 288
3
H 819 . W 288
1
H 774 . W 288 . D 408
2
H 436 . W 287 . D 162
4
H 671 . W 288 . D 361
5
H 486 mm
W 288 mm
One-piece clear blown glass diffuser
opal glass on request
Sheet metal assembly
IP65 LED module
With Golden crown and pine cone
With Golden crown and pine cone
Louvre
Aluminium - Lacquered patinated copper - Raw copper
Golden crown and pine cone (for all references)
Single-colour including crown and pine cone (on request)
Clear glass diffuser / Opal glass diffuser (on request)
IP44 / IP65 lantern - on request (except model 4) / Class 1
Louvre
R e p l a c e with the material code
Golden
crown and
pine cone
(for all references)
Single-colour
including crown and pine cone
(on request)
Golden crown
single-colour on request
single-colour on request
Golden pine cone
PRM Average Illuminance 20 lux p.300
Model 2
See pages 12-13
