212
213
Other colours on request
SOURCES
Louis Philippe 7 - ROGER PRADIER |
REFERENCES
MODEL
E27 - 23W max Ø 40 mm - H 160 mm max
G9 LED - 9W max
| ROGER PRADIER - Louis Philippe 7
1
MOUNTING
Wiring entry point in grey
Fixing kit included
COLOUR CODES
R e p l a c e with the colour code
RAL 9005 JET BLACK 000
SLATE GREY 059
WHITE 001
SANDSTONE 054
OLD RUSTIC 046
GREEN PATINA 008
GOLD PATINA 009
H 373 . W 197 . D 125
1
R e p l a c e with the colour code
H 373 mm
W 197 mm
D 125 mm
Injected Aluminium Casting
Frosted blown glass bulb cover
only with clear glass diffuser
Clear glass
or opal polycarbornate diffuser
SPARE DIFFUSERS
SPARE SET OF CLEAR GLASS
165 042 609
OPAL POLYCARBONATE
165 042 602
SPARE FROSTED GLASS BULB COVER
165 076 610

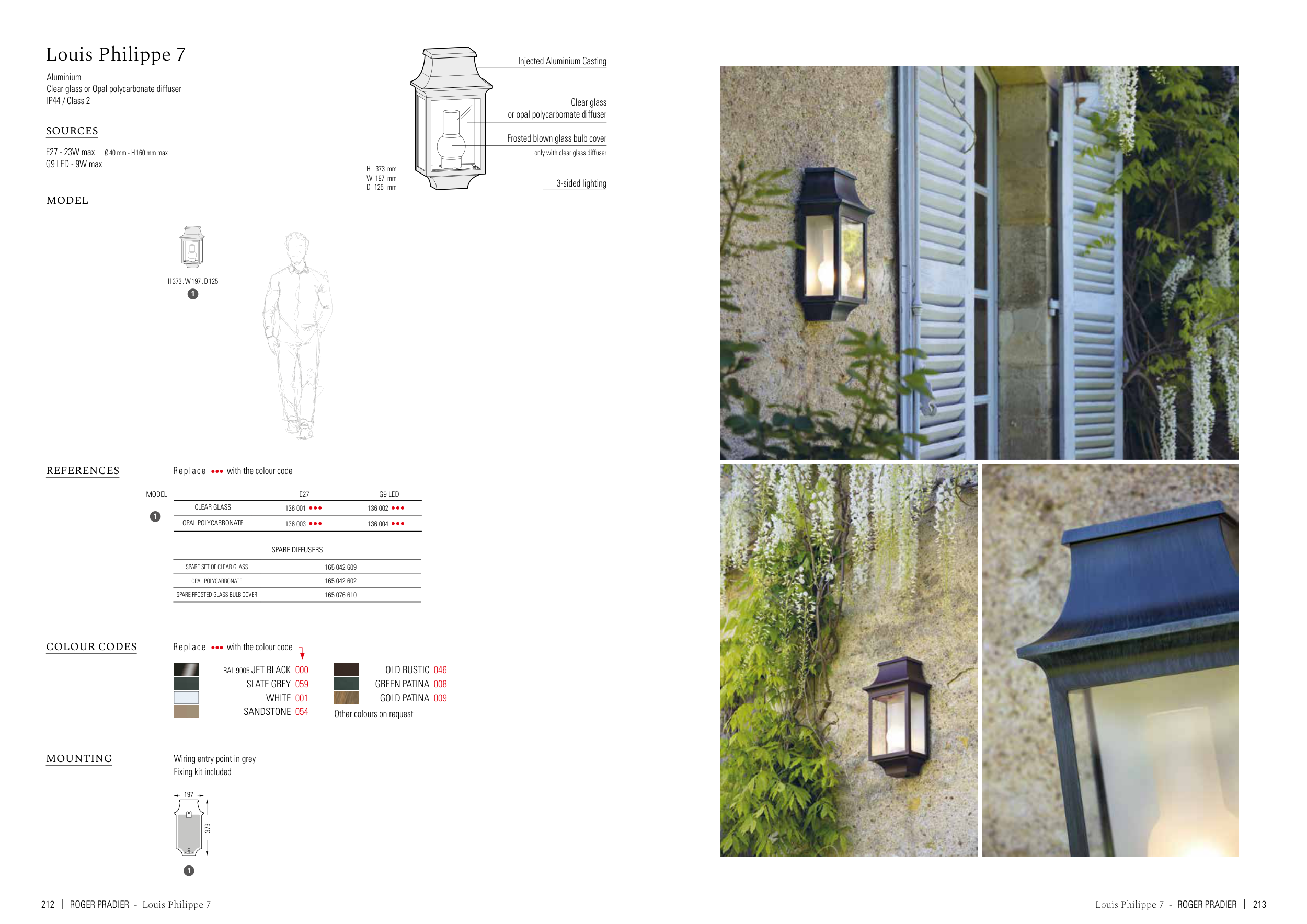

Louis Philippe 7
Aluminium
Clear glass or Opal polycarbonate diffuser
IP44 / Class 2
3-sided lighting
MODEL
E27
G9 LED
CLEAR GLASS
136 001
136 002
OPAL POLYCARBONATE
136 003
136 004
1
