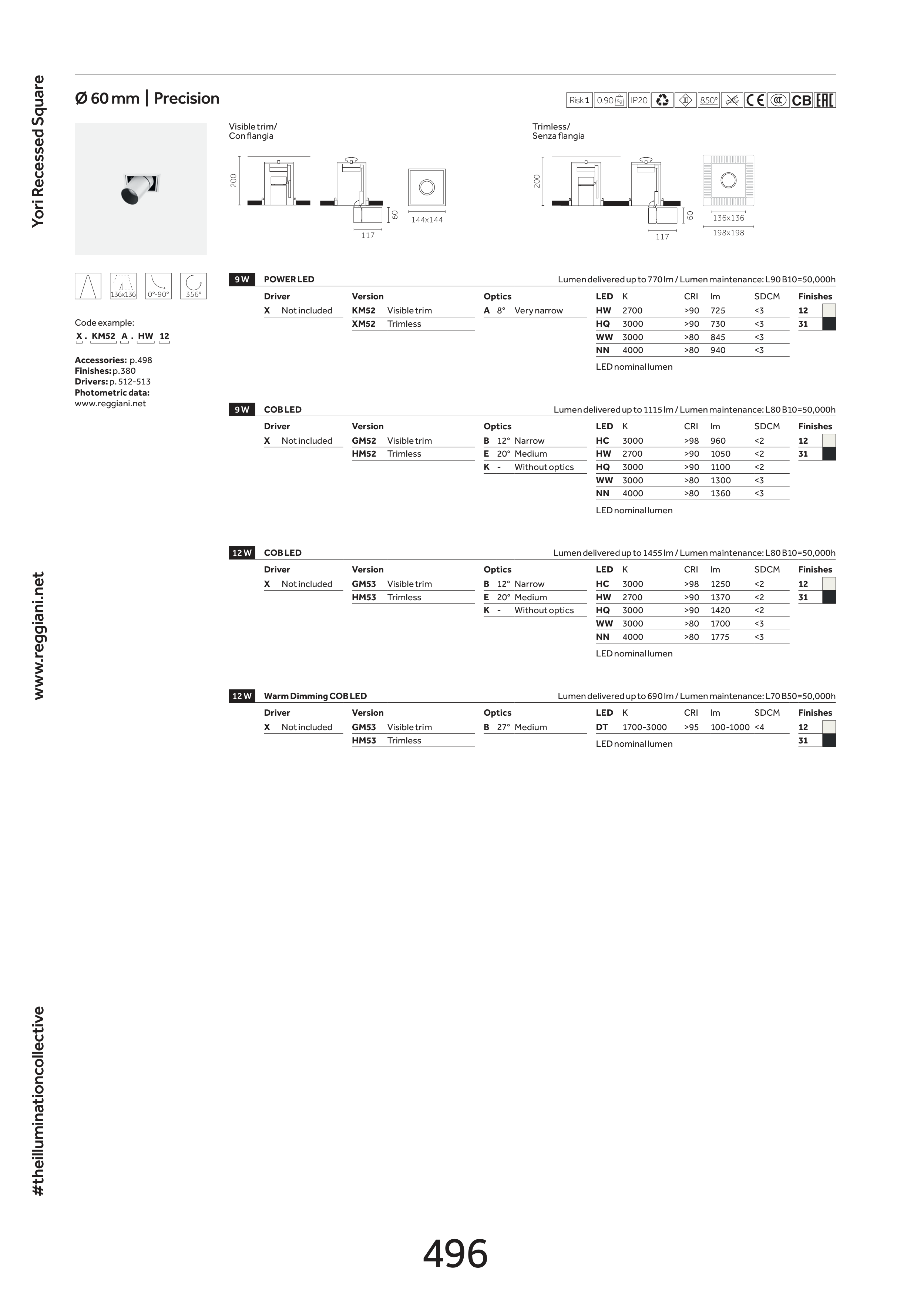

Yori Recessed Square
496
Ø 60 mm | Precision
Risk 1 0.90 Kg IP20
850°
CB
Visible trim/
Con flangia
Trimless/
Senza flangia
117
60
144x144
200
136x136
198x198
117
60
200
136x136
0°-90°
356°
Code example:
X . KM52 A . HW 12
Accessories: p.498
Finishes: p.380
Drivers: p. 512-513
Photometric data:
www.reggiani.net
9 W
POWER LED
Lumen delivered up to 770 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
KM52
Visible trim
A 8°
Very narrow
HW
2700
>90
725
<3
12
XM52
Trimless
HQ
3000
>90
730
<3
31
WW
3000
>80
845
<3
NN
4000
>80
940
<3
LED nominal lumen
9 W
COB LED
Lumen delivered up to 1115 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
GM52
Visible trim
B
12° Narrow
HC
3000
>98
960
<2
12
HM52
Trimless
E
20° Medium
HW
2700
>90
1050
<2
31
K -
Without optics
HQ
3000
>90
1100
<2
WW
3000
>80
1300
<3
NN
4000
>80
1360
<3
LED nominal lumen
12 W
COB LED
Lumen delivered up to 1455 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
GM53
Visible trim
B
12° Narrow
HC
3000
>98
1250
<2
12
HM53
Trimless
E
20° Medium
HW
2700
>90
1370
<2
31
K -
Without optics
HQ
3000
>90
1420
<2
WW
3000
>80
1700
<3
NN
4000
>80
1775
<3
LED nominal lumen
12 W
Warm Dimming COB LED
Lumen delivered up to 690 lm / Lumen maintenance: L70 B50=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
GM53
Visible trim
B
27° Medium
DT
1700-3000
>95
100-1000 <4
12
HM53
Trimless
LED nominal lumen
31
