#theilluminationcollective
www.reggiani.net

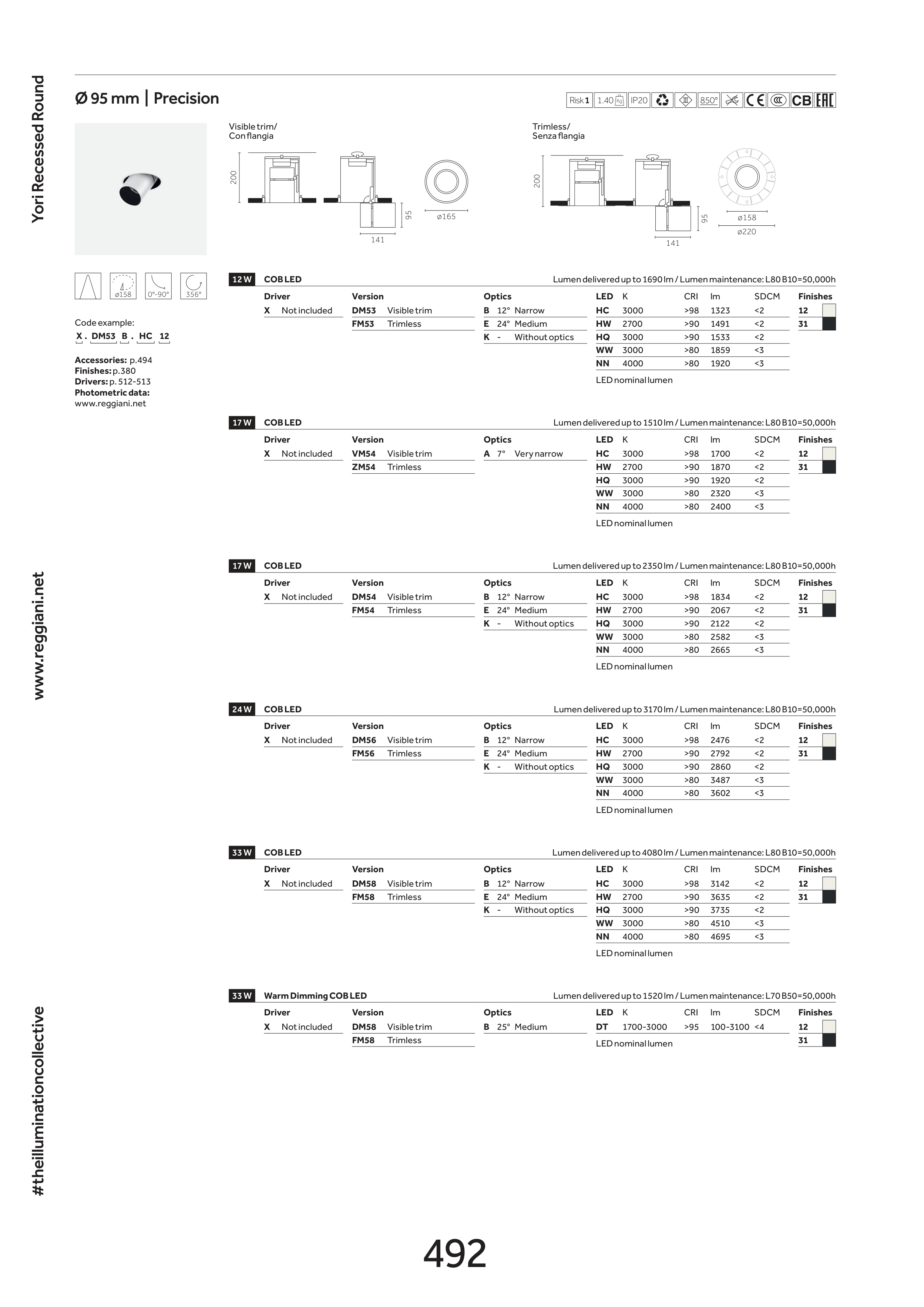

Yori Recessed Round
492
Ø 95 mm | Precision
Risk 1 1.40 Kg IP20
850°
CB
Visible trim/
Con flangia
Trimless/
Senza flangia
141
95
200
ø165
141
95
200
ø220
ø158
ø158
0°-90°
356°
Code example:
X . DM53 B . HC 12
Accessories: p.494
Finishes: p.380
Drivers: p. 512-513
Photometric data:
www.reggiani.net
12 W
COB LED
Lumen delivered up to 1690 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
DM53
Visible trim
B
12° Narrow
HC
3000
>98
1323
<2
12
FM53
Trimless
E
24° Medium
HW
2700
>90
1491
<2
31
K -
Without optics
HQ
3000
>90
1533
<2
WW
3000
>80
1859
<3
NN
4000
>80
1920
<3
LED nominal lumen
17 W
COB LED
Lumen delivered up to 1510 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
VM54
Visible trim
A 7°
Very narrow
HC
3000
>98
1700
<2
12
ZM54
Trimless
HW
2700
>90
1870
<2
31
HQ
3000
>90
1920
<2
WW
3000
>80
2320
<3
NN
4000
>80
2400
<3
LED nominal lumen
17 W
COB LED
Lumen delivered up to 2350 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
DM54
Visible trim
B
12° Narrow
HC
3000
>98
1834
<2
12
FM54
Trimless
E
24° Medium
HW
2700
>90
2067
<2
31
K -
Without optics
HQ
3000
>90
2122
<2
WW
3000
>80
2582
<3
NN
4000
>80
2665
<3
LED nominal lumen
24 W
COB LED
Lumen delivered up to 3170 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
DM56
Visible trim
B
12° Narrow
HC
3000
>98
2476
<2
12
FM56
Trimless
E
24° Medium
HW
2700
>90
2792
<2
31
K -
Without optics
HQ
3000
>90
2860
<2
WW
3000
>80
3487
<3
NN
4000
>80
3602
<3
LED nominal lumen
33 W
COB LED
Lumen delivered up to 4080 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
DM58
Visible trim
B
12° Narrow
HC
3000
>98
3142
<2
12
FM58
Trimless
E
24° Medium
HW
2700
>90
3635
<2
31
K -
Without optics
HQ
3000
>90
3735
<2
WW
3000
>80
4510
<3
NN
4000
>80
4695
<3
LED nominal lumen
33 W
Warm Dimming COB LED
Lumen delivered up to 1520 lm / Lumen maintenance: L70 B50=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
DM58
Visible trim
B
25° Medium
DT
1700-3000
>95
100-3100 <4
12
FM58
Trimless
LED nominal lumen
31
