Yori IP66 Wall
With central driver/
Con driver centrale/
Cable section
Total product consumption (Watt)
2,7 W
4,5 W
5,5 W
8 W
13 W
5,5 W + 5,5 W
8 W + 8 W
0,5 mmq
Max 60 m
Max 40 m
Max 30 m
Max 25 m
Max 15 m
Max 15 m
Max 10 m
1,5 mmq
Max 160 m
Max 110 m
Max 100 m
Max 70 m
Max 50 m
Max 50 m
Max 35 m
2,5 mmq
Max 500 m
Max 325 m
Max 300 m
Max 200 m
Max 125 m
Max 150 m
Max 100 m
4 mmq
Max 750 m
Max 550 m
Max 450 m
Max 325 m
Max 200 m
Max 225 m
Max 175 m
Loop in loop out/
Loop in loop out/
Code Driver
Watt
Cable section
Cable length max
0.30524.0000
12 W
0,5 mmq
15 m
1,5 mmq
35 m
2,5 mmq
50 m
4 mmq
100 m
0.30525.0000
70 W
0,5 mmq
5 m
1,5 mmq
10 m
2,5 mmq
20 m
4 mmq
40 m
0.30526.0000
150 W
0,5 mmq
—
1,5 mmq
5 m
2,5 mmq
7,5 m
4 mmq
17,5 m
Notes:
Recommended cable section in relation to the voltage drop/
Sezione del cavo consigliata in rapporto alla caduta di tensione

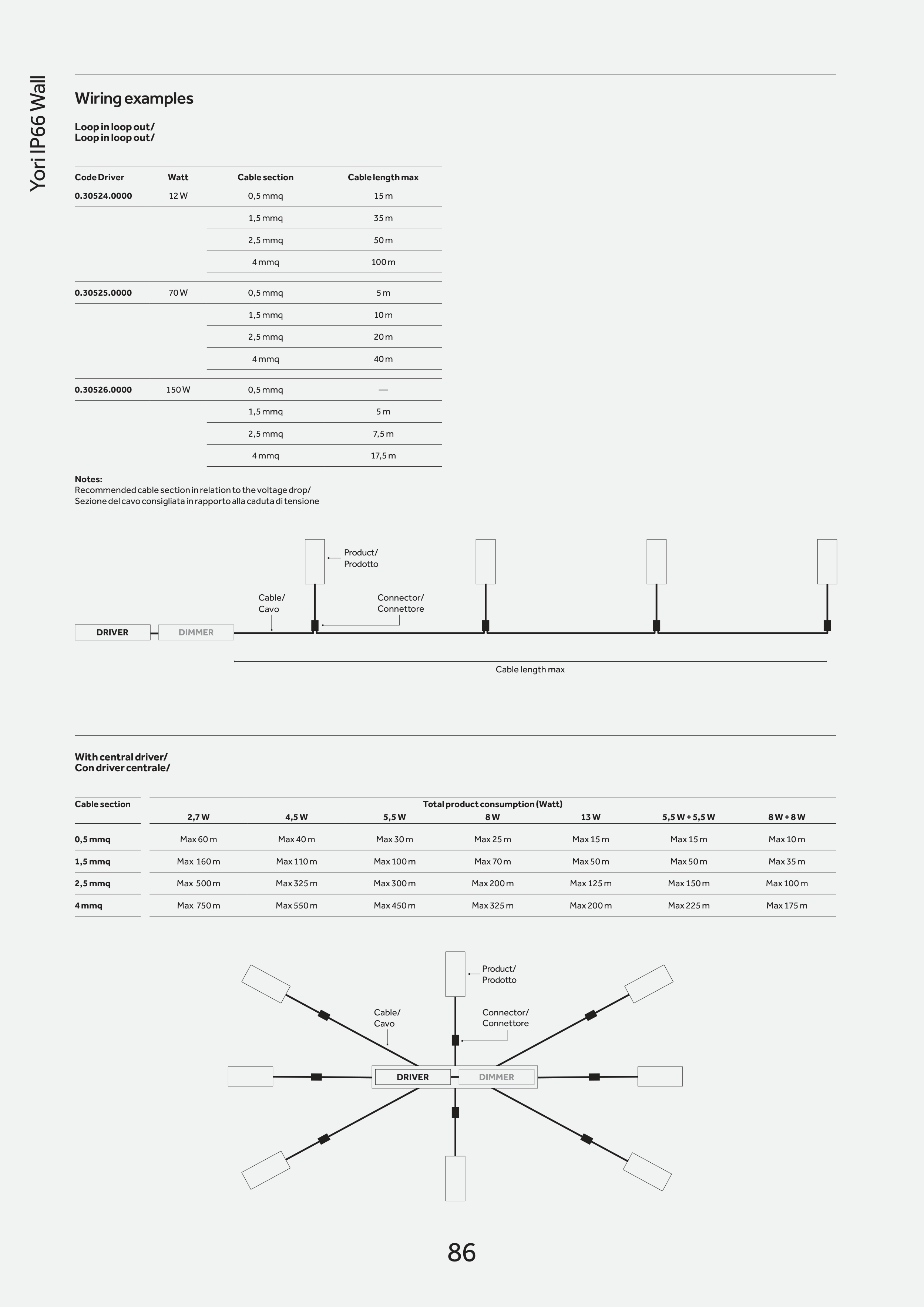

Wiring examples
Cable/
Cavo
Connector/
Connettore
Product/
Prodotto
DRIVER
DIMMER
Cable length max
Connector/
Connettore
Cable/
Cavo
Product/
Prodotto
DRIVER
DIMMER
