84
Driver/
Alimentazioni
POWER LED (5,5 W + 5,5 W total product consumption)
Type
Code
Watt
Size (mm)
IP
Tech. specification / Input
Output
Connectable fixtures
Cable length max
Cable section
On/Off
0.30524.0000
12 W
52
49
28
20
220-240 Vac / 50/60 Hz
24 Vdc
Max: 1
See table: p. 86
See table: p. 86
On/Off
0.30525.0000
70 W
225
66
51
67
220-240 Vac / 50/60 Hz
24 Vdc
Max: 5
See table: p. 86
See table: p. 86
On/Off
0.30526.0000
150 W
155
35
51
67
220-240 Vac / 50/60 Hz
24 Vdc
Max: 12
See table: p. 86
See table: p. 86
POWER LED (8 W + 8 W total product consumption)
Type
Code
Watt
Size (mm)
IP
Tech. specification / Input
Output
Connectable fixtures
Cable length max
Cable section
On/Off
0.30525.0000
70 W
225
66
51
67
220-240 Vac / 50/60 Hz
24 Vdc
Max: 4
See table: p. 86
See table: p. 86
On/Off
0.30526.0000
150 W
155
35
51
67
220-240 Vac / 50/60 Hz
24 Vdc
Max: 8
See table: p. 86
See table: p. 86
Dimmer/
Dimmer
POWER LED (5,5 W + 5,5 W total product consumption)
Type
Code
Watt
Size (mm)
IP
Tech. specification / Input
Output
Connectable fixtures
Cable length max
Cable section
DALI
Dimm 1-10V
Push
Y.30826.0000
150 W
155
35
15
20
24 Vdc
24 Vdc
Max: 12
See table: p. 86
See table: p. 86
DALI
D.30850.0000
150 W
58
45
25
67
24 Vdc
24 Vdc
Max: 12
See table: p. 86
See table: p. 86
DMX
DX.30851.0000
150 W
122
45
20
20
24 Vdc
24 Vdc
Max: 12
See table: p. 86
See table: p. 86
POWER LED (8 W + 8 W total product consumption)
Type
Code
Watt
Size (mm)
IP
Tech. specification / Input
Output
Connectable fixtures
Cable length max
Cable section
DALI
Dimm 1-10V
Push
Y.30826.0000
150 W
155
35
15
20
24 Vdc
24 Vdc
Max: 6
See table: p. 86
See table: p. 86
DALI
D.30850.0000
150 W
58
45
25
67
24 Vdc
24 Vdc
Max: 6
See table: p. 86
See table: p. 86
DMX
DX.30851.0000
150 W
122
45
20
20
24 Vdc
24 Vdc
Max: 6
See table: p. 86
See table: p. 86
Warm Dimming COB LED
Type
Code
Watt
Size (mm)
IP
Tech. specification / Input
mA
Connectable fixtures
Cable length max
Cable section
DALI
D.30527.0000
15 W
122
54
26
68
110-240V / 50/60 Hz
350 V
Max: 1
See table: p. 86
See table: p. 86
Ø60 mm | Electrical devices
7+7 W
7+7 W
4,5+4,5 W
4,5+4,5 W
6+6 W

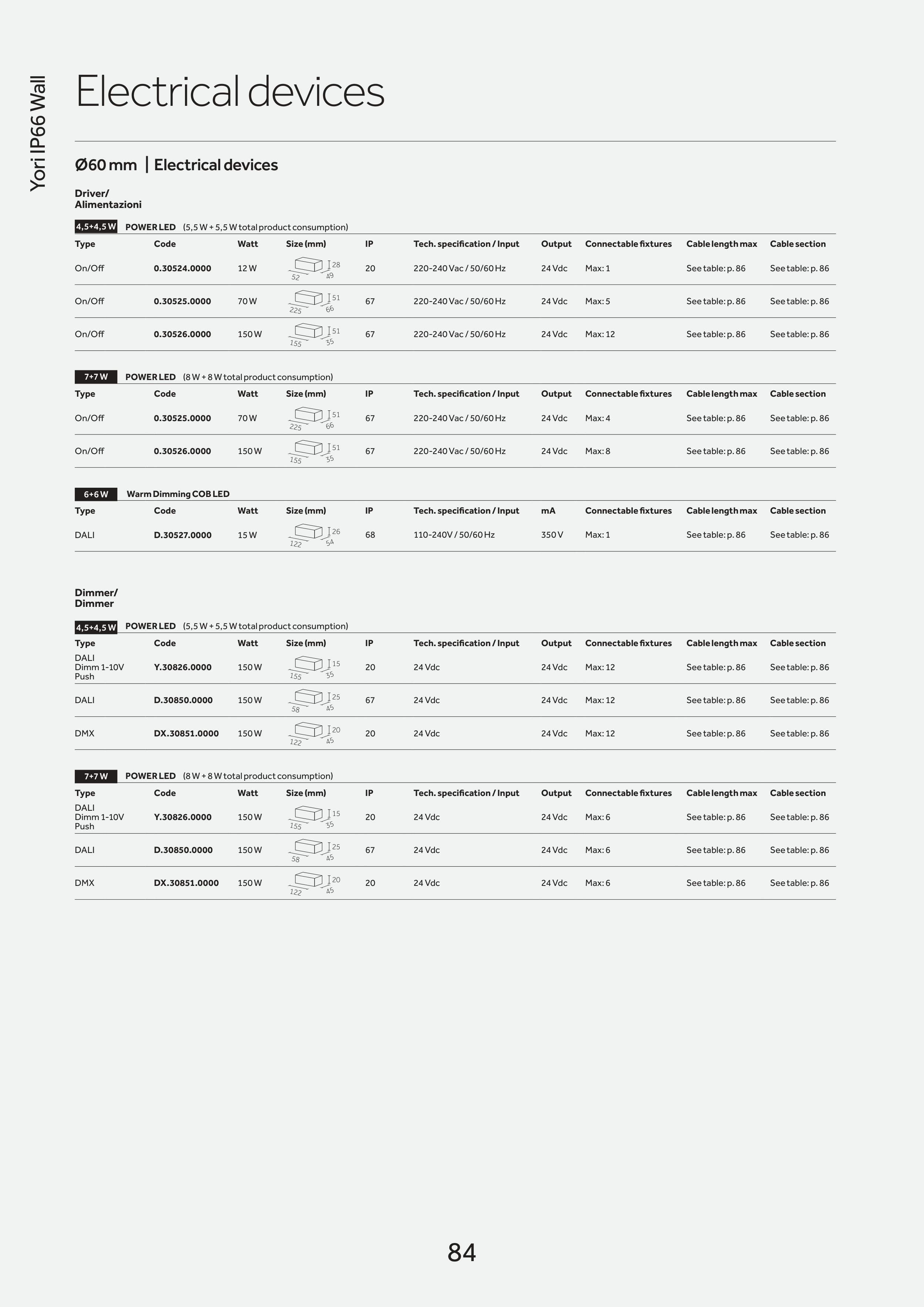

Electrical devices
Yori IP66 Wall
