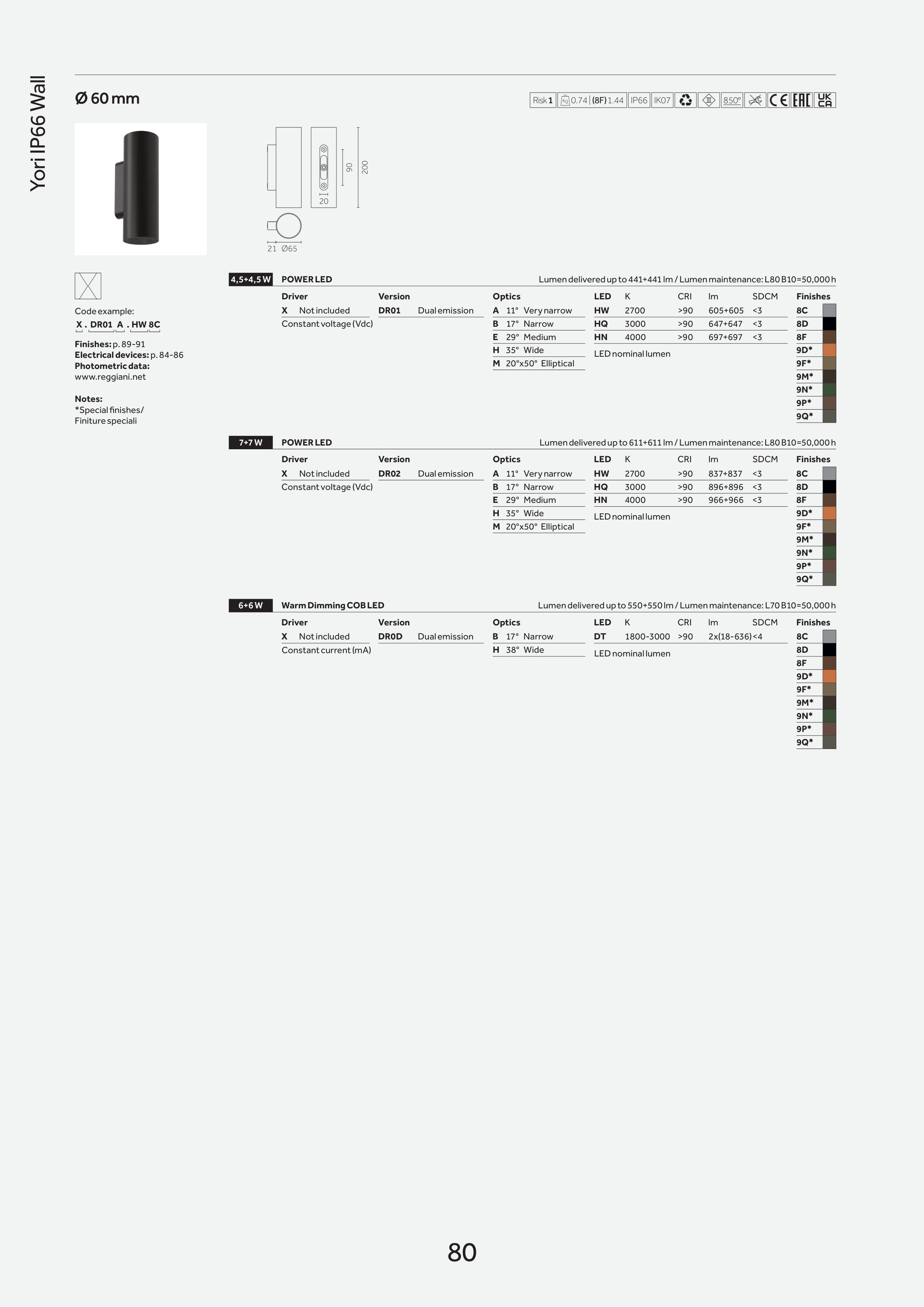

Yori IP66 Wall
80
Ø 60 mm
Risk 1
Kg 0.74 | (8F) 1.44 IP66 IK07
850°
200
90
20
Ø65
21
Code example:
X . DR01 A . HW 8C
Finishes: p. 89-91
Electrical devices: p. 84-86
Photometric data:
www.reggiani.net
Notes:
*Special finishes/
Finiture speciali
4,5+4,5 W
POWER LED
Lumen delivered up to 441+441 lm / Lumen maintenance: L80 B10=50,000 h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
DR01
Dual emission
A 11° Very narrow
HW
2700
>90
605+605
<3
8C
Constant voltage (Vdc)
B
17° Narrow
HQ
3000
>90
647+647
<3
8D
E
29° Medium
HN
4000
>90
697+697
<3
8F
H 35° Wide
LED nominal lumen
9D*
M 20°x50° Elliptical
9F*
9M*
9N*
9P*
9Q*
7+7 W
POWER LED
Lumen delivered up to 611+611 lm / Lumen maintenance: L80 B10=50,000 h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
DR02
Dual emission
A 11° Very narrow
HW
2700
>90
837+837
<3
8C
Constant voltage (Vdc)
B
17° Narrow
HQ
3000
>90
896+896
<3
8D
E
29° Medium
HN
4000
>90
966+966
<3
8F
H 35° Wide
LED nominal lumen
9D*
M 20°x50° Elliptical
9F*
9M*
9N*
9P*
9Q*
6+6 W
Warm Dimming COB LED
Lumen delivered up to 550+550 lm / Lumen maintenance: L70 B10=50,000 h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
DR0D
Dual emission
B
17° Narrow
DT
1800-3000
>90
2x(18-636)<4
8C
Constant current (mA)
H 38° Wide
LED nominal lumen
8D
8F
9D*
9F*
9M*
9N*
9P*
9Q*
