Trybeca Recessed
#theilluminationcollective
www.reggiani.net
269

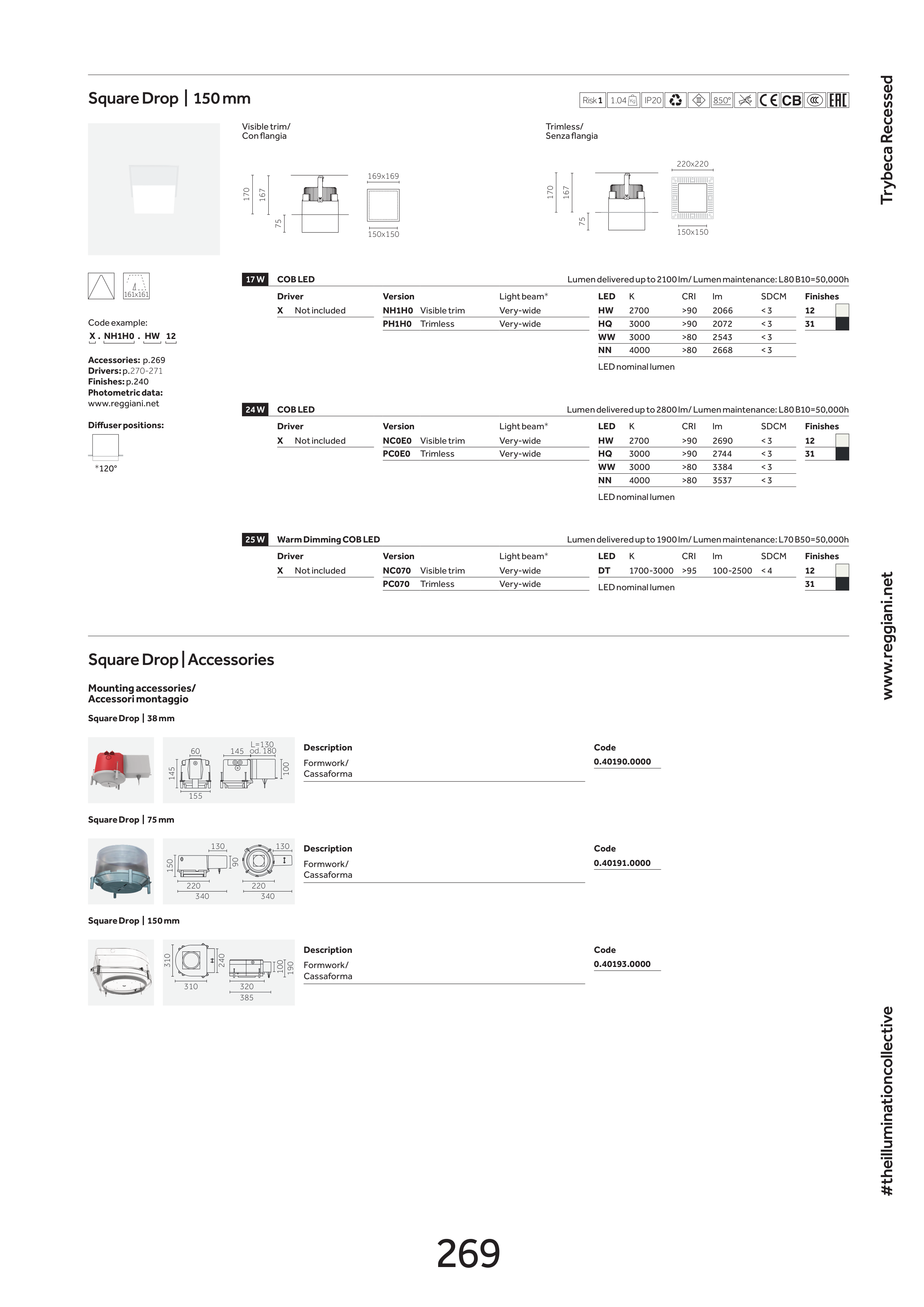

Square Drop | 150 mm
Risk 1 1.04 Kg IP20
850°
CB
Visible trim/
Con flangia
Trimless/
Senza flangia
169x169
150x150
167
170
75
220x220
150x150
167
170
75
17 W
COB LED
Lumen delivered up to 2100 lm/ Lumen maintenance: L80 B10=50,000h
Driver
Version
Light beam*
LED
K
CRI
lm
SDCM
Finishes
X
Not included
NH1H0 Visible trim
Very-wide
HW
2700
>90
2066
< 3
12
PH1H0
Trimless
Very-wide
HQ
3000
>90
2072
< 3
31
WW
3000
>80
2543
< 3
NN
4000
>80
2668
< 3
LED nominal lumen
24 W
COB LED
Lumen delivered up to 2800 lm/ Lumen maintenance: L80 B10=50,000h
Driver
Version
Light beam*
LED
K
CRI
lm
SDCM
Finishes
X
Not included
NC0E0
Visible trim
Very-wide
HW
2700
>90
2690
< 3
12
PC0E0
Trimless
Very-wide
HQ
3000
>90
2744
< 3
31
WW
3000
>80
3384
< 3
NN
4000
>80
3537
< 3
LED nominal lumen
25 W
Warm Dimming COB LED
Lumen delivered up to 1900 lm/ Lumen maintenance: L70 B50=50,000h
Driver
Version
Light beam*
LED
K
CRI
lm
SDCM
Finishes
X
Not included
NC070
Visible trim
Very-wide
DT
1700-3000
>95
100-2500
< 4
12
PC070
Trimless
Very-wide
LED nominal lumen
31
161x161
Code example:
X . NH1H0 . HW 12
Accessories: p.269
Drivers: p.270-271
Finishes: p.240
Photometric data:
www.reggiani.net
Diffuser positions:
*120°
Square Drop | Accessories
Mounting accessories/
Accessori montaggio
Square Drop | 38 mm
145
100
60
145 L=130
od. 180
155
Description
Code
Formwork/
Cassaforma
0.40190.0000
Square Drop | 75 mm
150
90
130
130
220
340
340
220
Description
Code
Formwork/
Cassaforma
0.40191.0000
Square Drop | 150 mm
310
310
320
385
190
240
100
Description
Code
Formwork/
Cassaforma
0.40193.0000
