19
Traceline
Product:
Traceline Pendant Direct/Indirect
Product Lenght:
2 x 1000 mm
Diffuser:
Dark Performance
LED:
3000 K
Power (Indirect light):
2 x 28 W
Power (Direct light):
2 x 21 W
Surface area
1,6 m x 1,6 m
Average illuminance
>500 lx
Uniformity
0.58
Glare
65°, <240 cd/m2
UGR Trasversal
<17
UGR Axial
<17
Product:
Traceline Pendant Direct/Indirect
Product Lenght:
2 x 1500 mm
Diffuser:
Dark Grid
LED:
3000 K
Power (Indirect light):
2 x 42 W
Power (Direct light):
2 x 42 W
Surface area
1,6 m x 3,2 m
Average illuminance
>500 lx
Uniformity
0.5
Glare
65°, 35 cd/m2
UGR Trasversal
<10
UGR Axial
<10

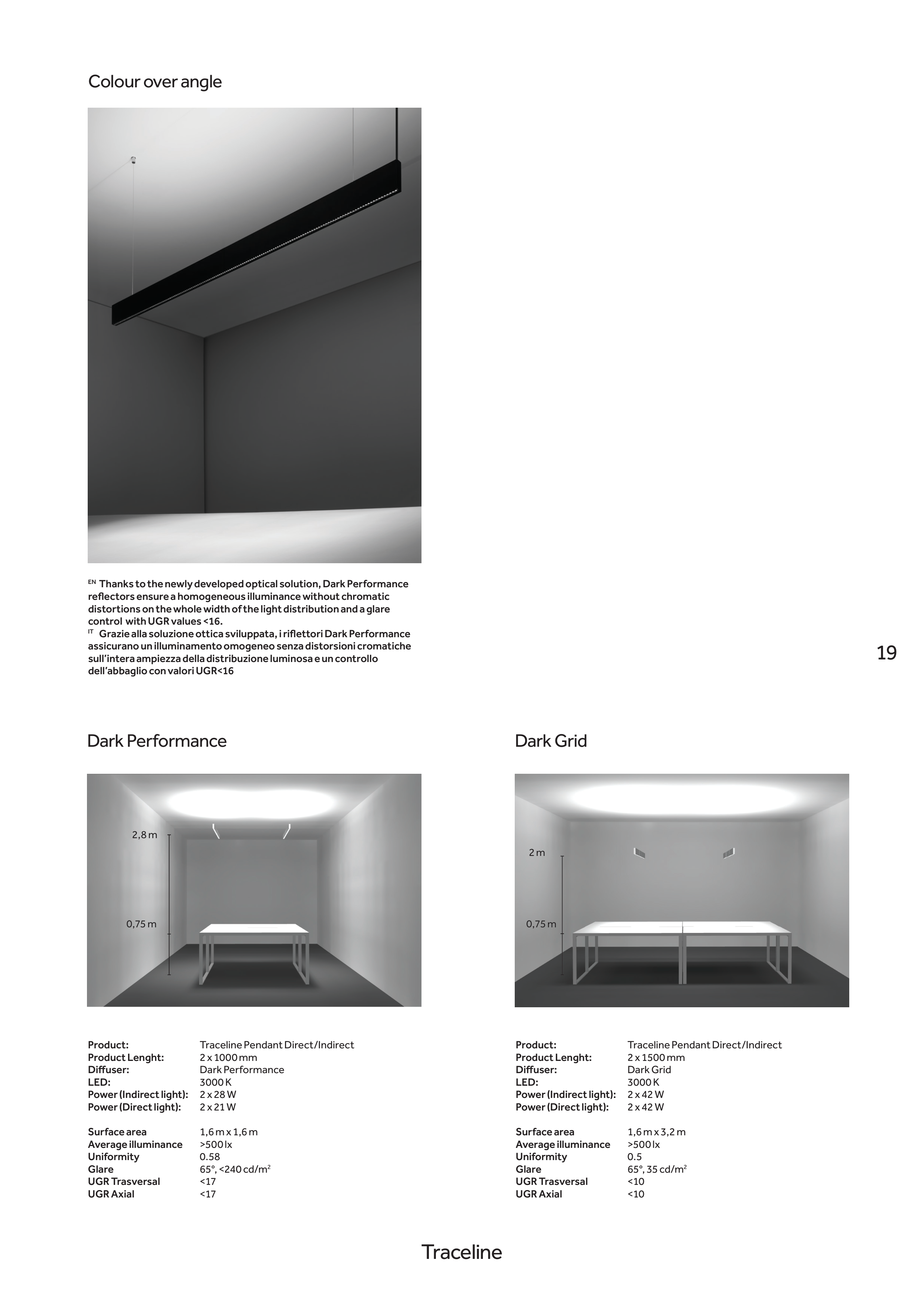

Colour over angle
Dark Performance
Dark Grid
EN Thanks to the newly developed optical solution, Dark Performance
reflectors ensure a homogeneous illuminance without chromatic
distortions on the whole width of the light distribution and a glare
control with UGR values <16.
IT Grazie alla soluzione ottica sviluppata, i riflettori Dark Performance
assicurano un illuminamento omogeneo senza distorsioni cromatiche
sull’intera ampiezza della distribuzione luminosa e un controllo
dell’abbaglio con valori UGR<16
2,8 m
0,75 m
0,75 m
2 m
