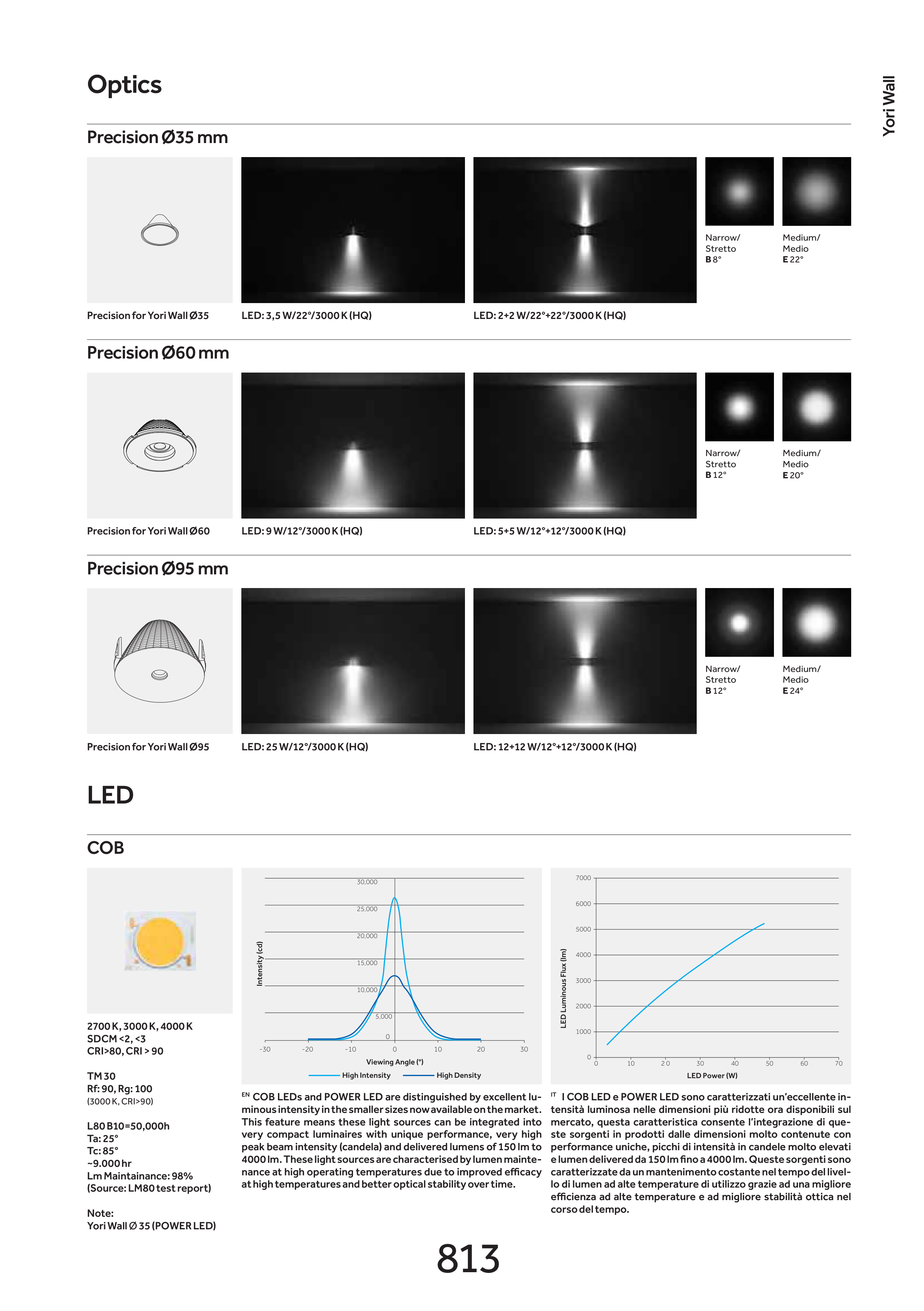

Yori Wall
813
Optics
Optics
Precision Ø35 mm
�������
�������
B 8°
�������
Medio
E 22°
Precision for Yori Wall Ø35
LED: 3,5 W/22°/3000 K (HQ)
LED: 2+2 W/22°+22°/3000 K (HQ)
Precision Ø60 mm
�������
�������
B 12°
�������
Medio
E 20°
Precision for Yori Wall Ø60
LED: 9 W/12°/3000 K (HQ)
LED: 5+5 W/12°+12°/3000 K (HQ)
Precision Ø95 mm
�������
�������
B 12°
�������
Medio
E 24°
Precision for Yori Wall Ø95
LED: 25 W/12°/3000 K (HQ)
LED: 12+12 W/12°+12°/3000 K (HQ)
LED
COB
-30
-20
-10
0
10
20
30
Viewing Angle (°)
Intensity (cd)
High Intensity
High Density
5,000
10,000
15,000
20,000
25,000
30,000
0
7000
6000
5000
4000
3000
2000
1000
0
0
10
2 0
30
40
50
60
70
LED Power (W)
LED Luminous Flux (lm)
2700 K, 3000 K, 4000 K
SDCM <2, <3
CRI>80, CRI > 90
TM 30
Rf: 90, Rg: 100
(3000 K, CRI>90)
L80 B10=50,000h
Ta: 25°
Tc: 85°
~9.000 hr
Lm Maintainance: 98%
(Source: LM80 test report)
Note:
Yori Wall Ø 35 (POWER LED)
EN COB LEDs and POWER LED are distinguished by excellent lu-
minous intensity in the smaller sizes now available on the market.
This feature means these light sources can be integrated into
very compact luminaires with unique performance, very high
peak beam intensity (candela) and delivered lumens of 150 lm to
4000 lm. These light sources are characterised by lumen mainte-
������������������������������������������������������������
at high temperatures and better optical stability over time.
IT I COB LED e POWER LED sono caratterizzati un’eccellente in-
tensità luminosa nelle dimensioni più ridotte ora disponibili sul
mercato, questa caratteristica consente l’integrazione di que-
ste sorgenti in prodotti dalle dimensioni molto contenute con
performance uniche, picchi di intensità in candele molto elevati
����������������������������������������������������������������
caratterizzate da un mantenimento costante nel tempo del livel-
lo di lumen ad alte temperature di utilizzo grazie ad una migliore
����������������������������������������������������������������
corso del tempo.
