#theilluminationcollective
www.reggiani.net
How it works
20

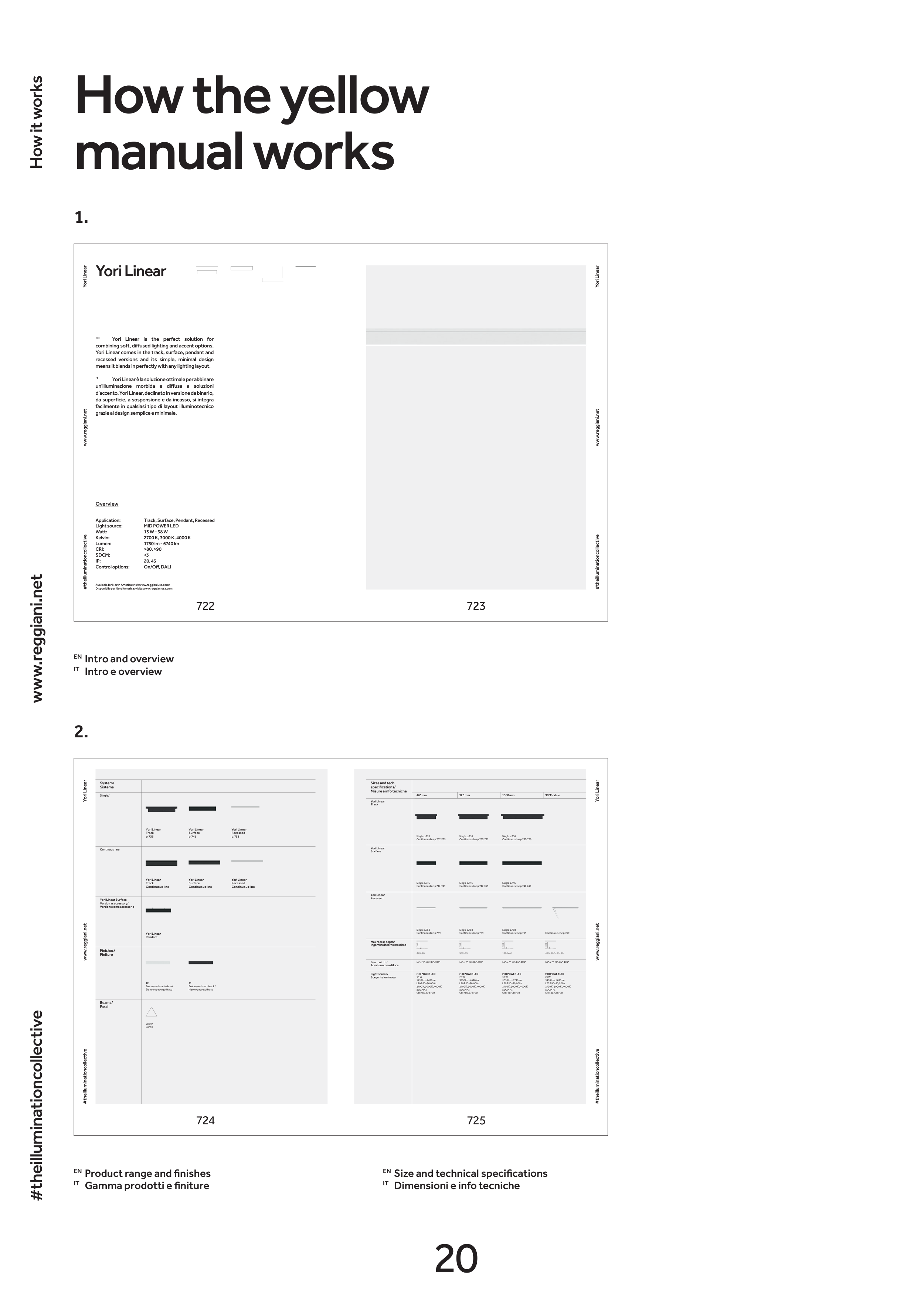

How the yellow
manual works
Yori Linear
#theilluminationcollective
www.reggiani.net
723
#theilluminationcollective
www.reggiani.net
Yori Linear
722
Yori Linear
EN
Yori Linear is the perfect solution for
combining soft, diffused lighting and accent options.
Yori Linear comes in the track, surface, pendant and
recessed versions and its simple, minimal design
means it blends in perfectly with any lighting layout.
IT
Yori Linear è la soluzione ottimale per abbinare
un’illuminazione morbida e diffusa a soluzioni
d’accento. Yori Linear, declinato in versione da binario,
da superficie, a sospensione e da incasso, si integra
facilmente in qualsiasi tipo di layout illuminotecnico
grazie al design semplice e minimale.
Overview
Application:
Track, Surface, Pendant, Recessed
Light source:
MID POWER LED
Watt:
13 W - 38 W
Kelvin:
2700 K, 3000 K, 4000 K
Lumen:
1750 lm - 6740 lm
CRI:
>80, >90
SDCM:
<3
IP:
20, 43
Control options:
�����������
Available for North America: visit www.reggianiusa.com/
Disponibile per Nord America: visita www.reggianiusa.com
EN Intro and overview
IT Intro e overview
EN��������������������������
IT ������������������������
EN���������������������������������
IT Dimensioni e info tecniche
1.
2.
Yori Linear
#theilluminationcollective
www.reggiani.net
725
#theilluminationcollective
www.reggiani.net
Yori Linear
724
System/
Sistema
Single/
Yori Linear
Track
p.733
Yori Linear
Surface
p.741
Yori Linear
Recessed
p.753
Continuos line
Yori Linear
Track
Continuous line
Yori Linear
Surface
Continuous line
Yori Linear
Recessed
Continuous line
Yori Linear Surface
Version as accessory/
Versione come accessorio
Yori Linear
Pendant
Finishes/
Finiture
12
Embossed matt white/
��������������������
31
Embossed matt black/
������������������
Beams/
Fasci
Wide/
�����
Sizes and tech.
��������������
Misure e info tecniche
460 mm
920 mm
1380 mm
90° Module
Yori Linear
Track
Single p.736
Continuous line p.737-739
Single p.736
Continuous line p.737-739
Single p.736
Continuous line p.737-739
Yori Linear
Surface
Single p.746
Continuous line p.747-749
Single p.746
Continuous line p.747-749
Single p.746
Continuous line p.747-749
Yori Linear
Recessed
Single p.758
Continuous line p.759
Single p.758
Continuous line p.759
Single p.758
Continuous line p.759
Continuous line p.760
Max recess depth/
Ingombro interno massimo
100
100
100
100
470x40
930x40
1390x40
480x40 / 480x40
Beam width/
Apertura cono di luce
60°, 77°, 78°, 85°, 103°
60°, 77°, 78°, 85°, 103°
60°, 77°, 78°, 85°, 103°
60°, 77°, 78°, 85°, 103°
Light source/
Sorgente luminosa
MID POWER LED
13 W
1750 lm - 2430 lm
L70 B50=50,000h
2700 K, 3000 K, 4000 K
SDCM <3
CRI >80, CRI >90
MID POWER LED
26 W
3350 lm - 4630 lm
L70 B50=50,000h
2700 K, 3000 K, 4000 K
SDCM <3
CRI >80, CRI >90
MID POWER LED
38 W
5030 lm - 6740 lm
L70 B50=50,000h
2700 K, 3000 K , 4000 K
SDCM <3
CRI>80, CRI>90
MID POWER LED
26 W
3350 lm - 4630 lm
L70 B50=50,000h
2700 K, 3000 K , 4000 K
SDCM <3
CRI>80, CRI>90
