Re Low Led Fixed
#theilluminationcollective
www.reggiani.net
331

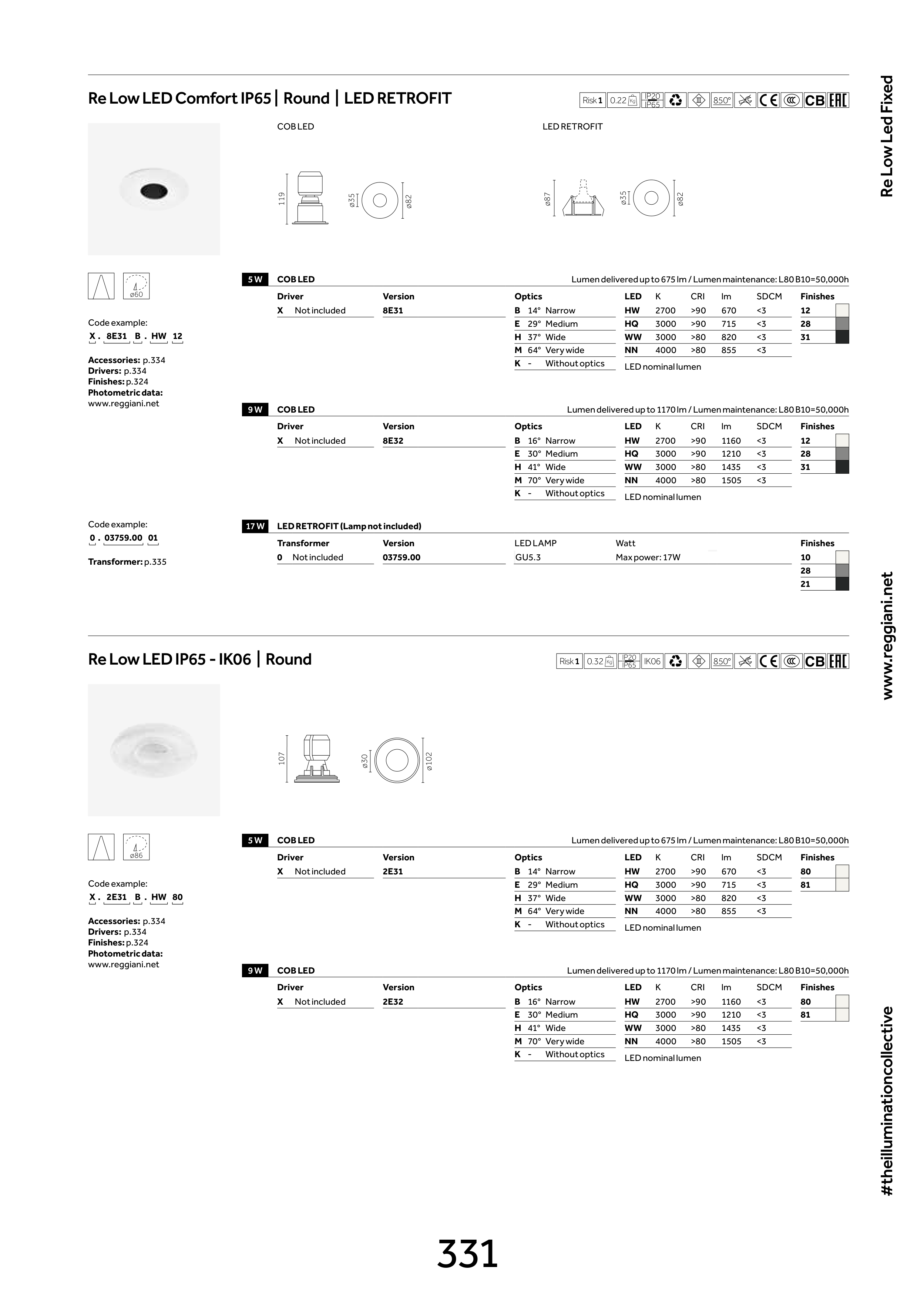

Re Low LED Comfort IP65 | Round | LED RETROFIT
Risk 1 0.22 Kg
IP20
IP65
850°
CB
COB LED
LED RETROFIT
119
ø82
ø35
ø82
ø35
ø87
ø60
Code example:
X . 8E31
B . HW 12
Accessories: p.334
Drivers: p.334
Finishes: p.324
Photometric data:
www.reggiani.net
Re Low LED IP65 - IK06 | Round
Risk 1 0.32 Kg
IP20
IP65 IK06
850°
CB
107
ø102
ø30
ø86
Code example:
X . 2E31
B . HW 80
Accessories: p.334
Drivers: p.334
Finishes: p.324
Photometric data:
www.reggiani.net
5 W
COB LED
Lumen delivered up to 675 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
8E31
B
14° Narrow
HW
2700
>90
670
<3
12
E
29° Medium
HQ
3000
>90
715
<3
28
H 37° Wide
WW
3000
>80
820
<3
31
M 64° Very wide
NN
4000
>80
855
<3
K -
Without optics
LED nominal lumen
9 W
COB LED
Lumen delivered up to 1170 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
8E32
B
16° Narrow
HW
2700
>90
1160
<3
12
E
30° Medium
HQ
3000
>90
1210
<3
28
H 41° Wide
WW
3000
>80
1435
<3
31
M 70° Very wide
NN
4000
>80
1505
<3
K -
Without optics
LED nominal lumen
5 W
COB LED
Lumen delivered up to 675 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
2E31
B
14° Narrow
HW
2700
>90
670
<3
80
E
29° Medium
HQ
3000
>90
715
<3
81
H 37° Wide
WW
3000
>80
820
<3
M 64° Very wide
NN
4000
>80
855
<3
K -
Without optics
LED nominal lumen
9 W
COB LED
Lumen delivered up to 1170 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
X
Not included
2E32
B
16° Narrow
HW
2700
>90
1160
<3
80
E
30° Medium
HQ
3000
>90
1210
<3
81
H 41° Wide
WW
3000
>80
1435
<3
M 70° Very wide
NN
4000
>80
1505
<3
K -
Without optics
LED nominal lumen
17 W
LED RETROFIT (Lamp not included)
Transformer
Version
LED LAMP
Watt
Finishes
0
Not included
03759.00
GU5.3
Max power: 17W
10
28
21
Code example:
0 . 03759.00 01
Transformer: p.335
