Unit
232

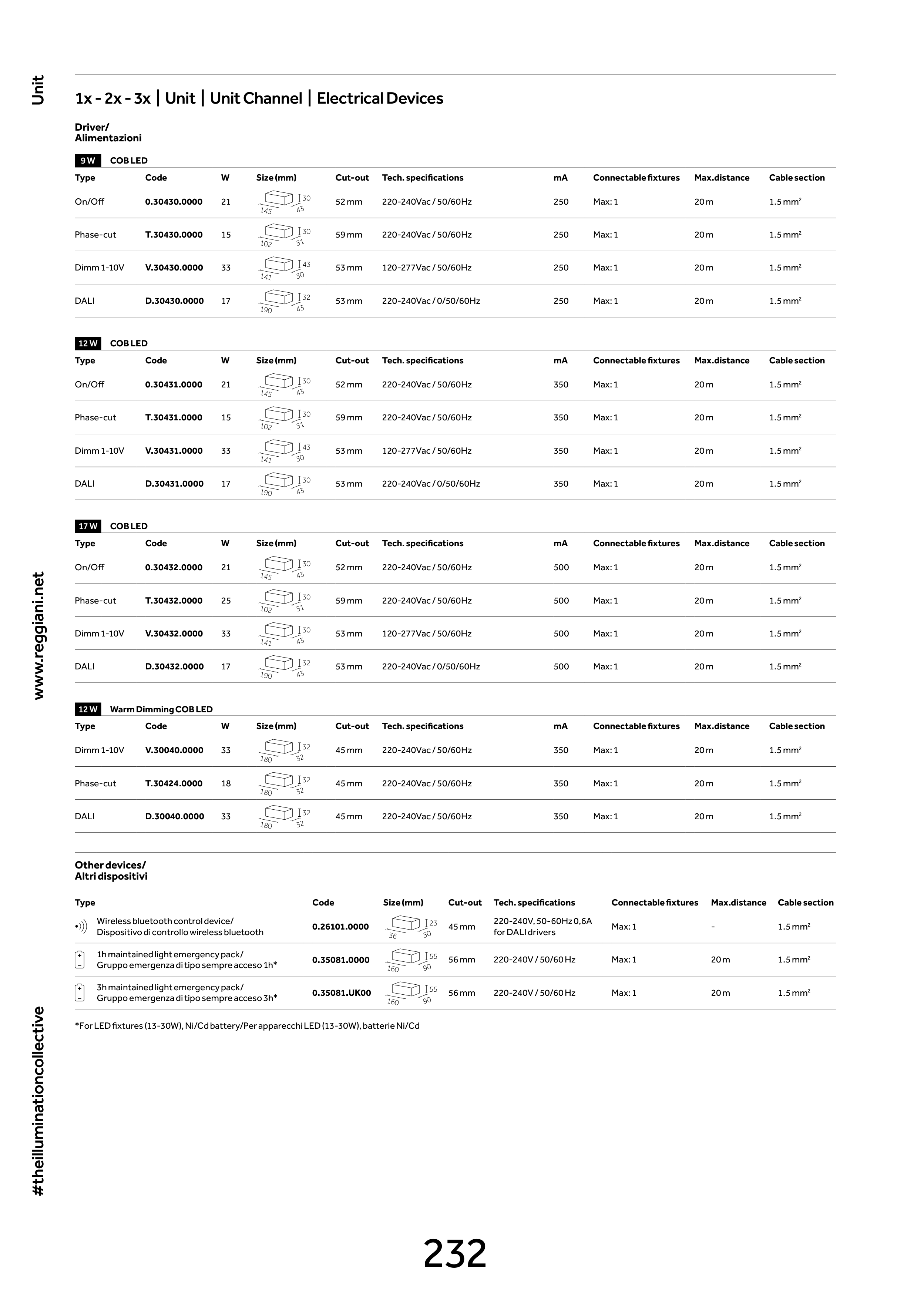

1x - 2x - 3x | Unit | Unit Channel | Electrical Devices
Driver/
Alimentazioni
9 W COB LED
Type
Code
W
Size (mm)
Cut-out
Tech. specifications
mA
Connectable fixtures
Max.distance
Cable section
On/Off
0.30430.0000
21
145
43
30
52 mm
220-240Vac / 50/60Hz
250
Max: 1
20 m
1.5 mm2
Phase-cut
T.30430.0000
15
102
51
30
59 mm
220-240Vac / 50/60Hz
250
Max: 1
20 m
1.5 mm2
Dimm 1-10V
V.30430.0000
33
141
30
43
53 mm
120-277Vac / 50/60Hz
250
Max: 1
20 m
1.5 mm2
DALI
D.30430.0000
17
190
43
32
53 mm
220-240Vac / 0/50/60Hz
250
Max: 1
20 m
1.5 mm2
12 W COB LED
Type
Code
W
Size (mm)
Cut-out
Tech. specifications
mA
Connectable fixtures
Max.distance
Cable section
On/Off
0.30431.0000
21
145
43
30
52 mm
220-240Vac / 50/60Hz
350
Max: 1
20 m
1.5 mm2
Phase-cut
T.30431.0000
15
102
51
30
59 mm
220-240Vac / 50/60Hz
350
Max: 1
20 m
1.5 mm2
Dimm 1-10V
V.30431.0000
33
141
30
43
53 mm
120-277Vac / 50/60Hz
350
Max: 1
20 m
1.5 mm2
DALI
D.30431.0000
17
190
43
30
53 mm
220-240Vac / 0/50/60Hz
350
Max: 1
20 m
1.5 mm2
17 W COB LED
Type
Code
W
Size (mm)
Cut-out
Tech. specifications
mA
Connectable fixtures
Max.distance
Cable section
On/Off
0.30432.0000
21
145
43
30
52 mm
220-240Vac / 50/60Hz
500
Max: 1
20 m
1.5 mm2
Phase-cut
T.30432.0000
25
102
51
30
59 mm
220-240Vac / 50/60Hz
500
Max: 1
20 m
1.5 mm2
Dimm 1-10V
V.30432.0000
33
141
43
30
53 mm
120-277Vac / 50/60Hz
500
Max: 1
20 m
1.5 mm2
DALI
D.30432.0000
17
190
43
32
53 mm
220-240Vac / 0/50/60Hz
500
Max: 1
20 m
1.5 mm2
Other devices/
Altri dispositivi
Type
Code
Size (mm)
Cut-out
Tech. specifications
Connectable fixtures
Max.distance
Cable section
Wireless bluetooth control device/
Dispositivo di controllo wireless bluetooth
0.26101.0000
36
50
23
45 mm
220-240V, 50-60Hz 0,6A
for DALI drivers
Max: 1
-
1.5 mm2
1h maintained light emergency pack/
Gruppo emergenza di tipo sempre acceso 1h*
0.35081.0000
160
90
55
56 mm
220-240V / 50/60 Hz
Max: 1
20 m
1.5 mm2
3h maintained light emergency pack/
Gruppo emergenza di tipo sempre acceso 3h*
0.35081.UK00
160
90
55
56 mm
220-240V / 50/60 Hz
Max: 1
20 m
1.5 mm2
*For LED fixtures (13-30W), Ni/Cd battery/Per apparecchi LED (13-30W), batterie Ni/Cd
12 W Warm Dimming COB LED
Type
Code
W
Size (mm)
Cut-out
Tech. specifications
mA
Connectable fixtures
Max.distance
Cable section
Dimm 1-10V
V.30040.0000
33
180
32
32
45 mm
220-240Vac / 50/60Hz
350
Max: 1
20 m
1.5 mm2
Phase-cut
T.30424.0000
18
180
32
32
45 mm
220-240Vac / 50/60Hz
350
Max: 1
20 m
1.5 mm2
DALI
D.30040.0000
33
180
32
32
45 mm
220-240Vac / 50/60Hz
350
Max: 1
20 m
1.5 mm2
