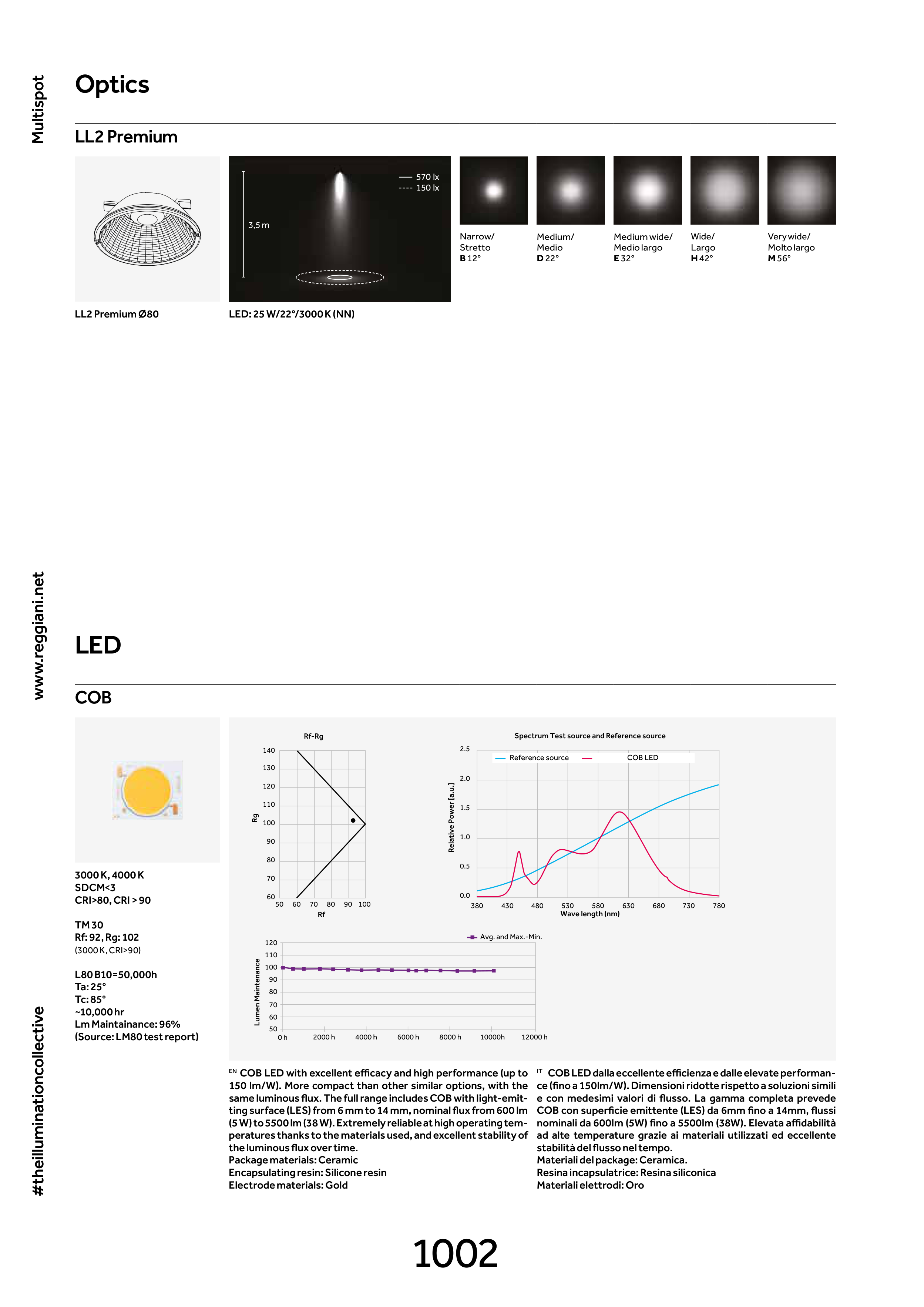

Multispot
1002
Optics
LL2 Premium
3,5 m
570 lx
150 lx
Narrow/
Stretto
B 12°
Medium/
Medio
D 22°
Medium wide/
Medio largo
E 32°
Wide/
Largo
H 42°
Very wide/
Molto largo
M 56°
LL2 Premium Ø80
LED: 25 W/22°/3000 K (NN)
LED
COB
2.5
2.0
1.5
1.0
0.5
0.0
Relative Power [a.u.]
380
430
480
530
580
630
680
730
780
Spectrum Test source and Reference source
Wave length (nm)
Reference source
COB LED
140
130
120
110
100
90
80
70
60
Rg
50
60
70
80
90
100
Rf-Rg
Rf
2.5
2.0
1.5
1.0
0.5
0.0
Relative Power [a.u.]
380
430
480
530
580
630
680
730
780
Spectrum Test source and Reference source
Wave length (nm)
Reference source
COB LED
140
130
120
110
100
90
80
70
60
Rg
50
60
70
80
90
100
Rf-Rg
Rf
3000 K, 4000 K
SDCM<3
CRI>80, CRI > 90
TM 30
Rf: 92, Rg: 102
(3000 K, CRI>90)
L80 B10=50,000h
Ta: 25°
Tc: 85°
~10,000 hr
Lm Maintainance: 96%
(Source: LM80 test report)
120
2000 h
Lumen Maintenance
4000 h
6000 h
12000 h
8000 h
10000h
110
100
90
80
70
60
50
0 h
Avg. and Max.-Min.
EN COB LED with excellent efficacy and high performance (up to
150 lm/W). More compact than other similar options, with the
same luminous flux. The full range includes COB with light-emit-
ting surface (LES) from 6 mm to 14 mm, nominal flux from 600 lm
(5 W) to 5500 lm (38 W). Extremely reliable at high operating tem-
peratures thanks to the materials used, and excellent stability of
the luminous flux over time.
Package materials: Ceramic
Encapsulating resin: Silicone resin
Electrode materials: Gold
IT COB LED dalla eccellente efficienza e dalle elevate performan-
ce (fino a 150lm/W). Dimensioni ridotte rispetto a soluzioni simili
e con medesimi valori di flusso. La gamma completa prevede
COB con superficie emittente (LES) da 6mm fino a 14mm, flussi
nominali da 600lm (5W) fino a 5500lm (38W). Elevata affidabilità
ad alte temperature grazie ai materiali utilizzati ed eccellente
stabilità del flusso nel tempo.
Materiali del package: Ceramica.
Resina incapsulatrice: Resina siliconica
Materiali elettrodi: Oro
