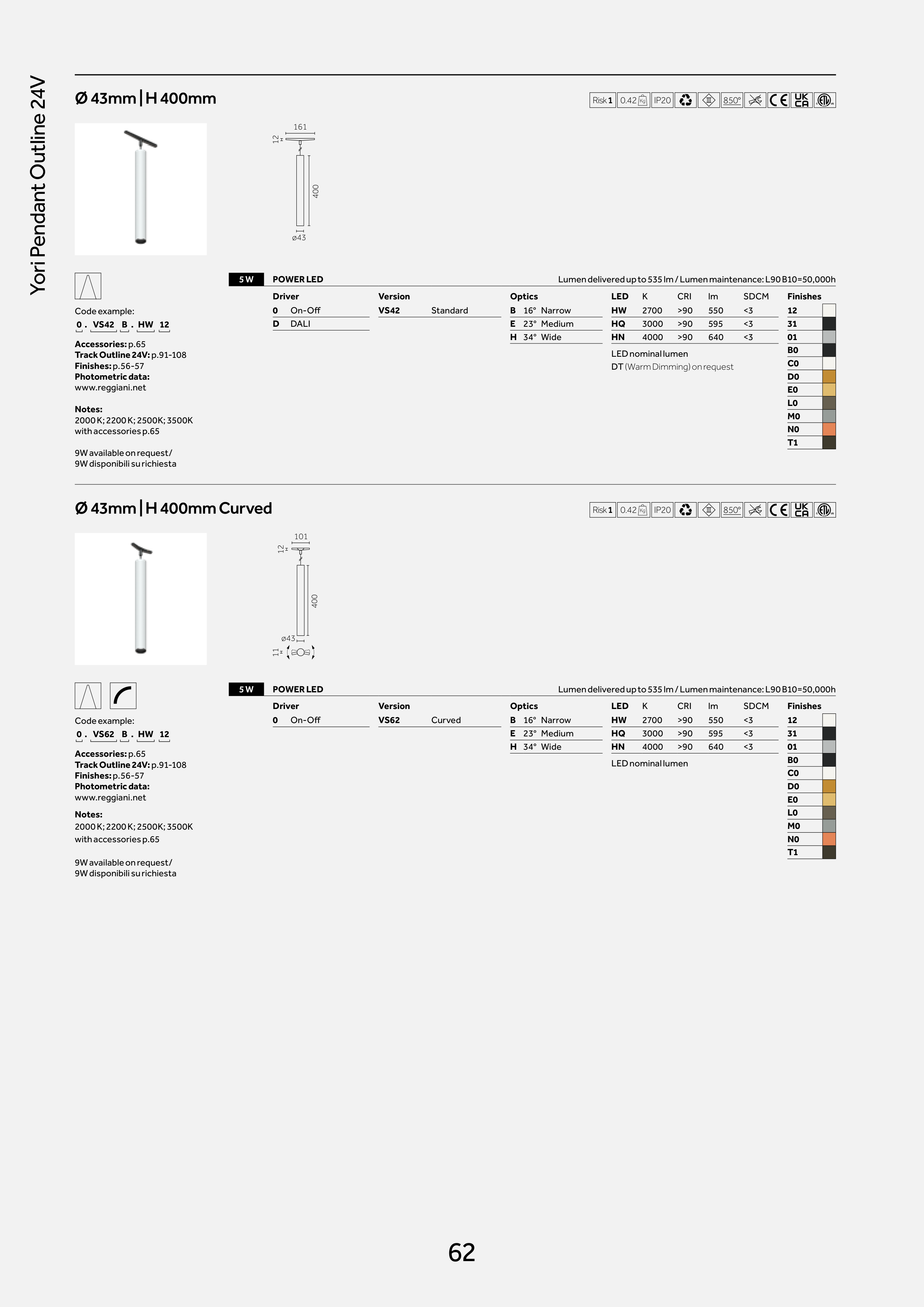

Yori Pendant Outline 24V
Ø 43mm | H 400mm
Risk 1 0.42 Kg IP20
850°
ø43
400
161
12
5 W
POWER LED
Lumen delivered up to 535 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
VS42
Standard
B
16° Narrow
HW
2700
>90
550
<3
12
D
DALI
E
23° Medium
HQ
3000
>90
595
<3
31
H 34° Wide
HN
4000
>90
640
<3
01
LED nominal lumen
B0
DT (Warm Dimming) on request
C0
D0
E0
L0
M0
N0
T1
Code example:
0 . VS42 B . HW 12
Accessories: p.65
Track Outline 24V: p.91-108
Finishes: p.56-57
Photometric data:
www.reggiani.net
Notes:
2000 K; 2200 K; 2500K; 3500K
with accessories p.65
9W available on request/
9W disponibili su richiesta
Ø 43mm | H 400mm Curved
Risk 1 0.42 Kg IP20
850°
ø43
12
101
11
400
5 W
POWER LED
Lumen delivered up to 535 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
VS62
Curved
B
16° Narrow
HW
2700
>90
550
<3
12
E
23° Medium
HQ
3000
>90
595
<3
31
H 34° Wide
HN
4000
>90
640
<3
01
LED nominal lumen
B0
C0
D0
E0
L0
M0
N0
T1
Code example:
0 . VS62 B . HW 12
Accessories: p.65
Track Outline 24V: p.91-108
Finishes: p.56-57
Photometric data:
www.reggiani.net
Notes:
2000 K; 2200 K; 2500K; 3500K
with accessories p.65
9W available on request/
9W disponibili su richiesta
