43

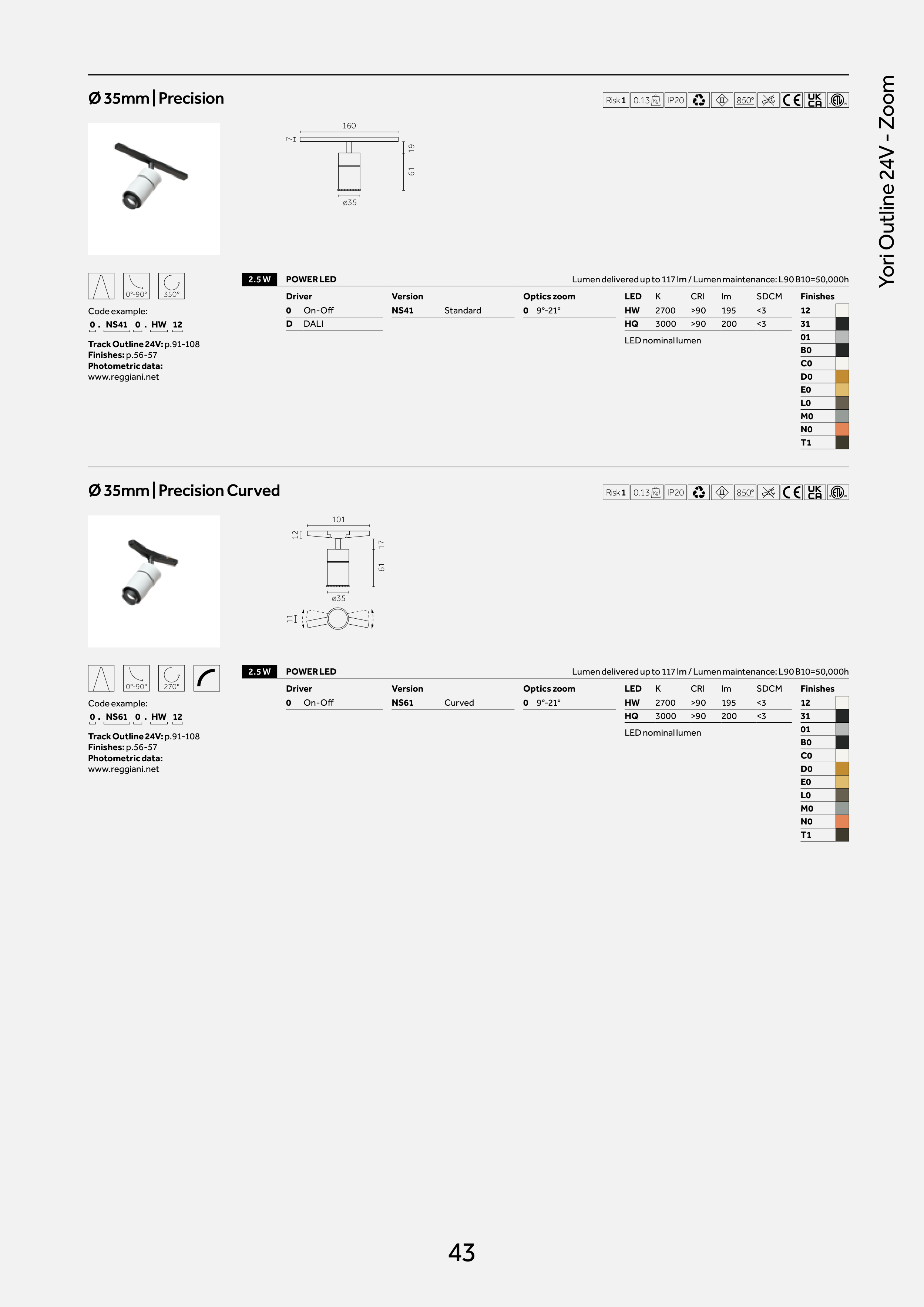

Yori Outline 24V - Zoom
Ø 35mm | Precision
Risk 1 0.13 Kg IP20
850°
19
61
ø35
160
7
2.5 W
POWER LED
Lumen delivered up to 117 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics zoom
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
NS41
Standard
0
9°-21°
HW
2700
>90
195
<3
12
D
DALI
HQ
3000
>90
200
<3
31
LED nominal lumen
01
B0
C0
D0
E0
L0
M0
N0
T1
0°-90°
350°
Code example:
0 . NS41 0 . HW 12
Track Outline 24V: p.91-108
Finishes: p.56-57
Photometric data:
www.reggiani.net
Ø 35mm | Precision Curved
Risk 1 0.13 Kg IP20
850°
17
61
ø35
12
101
11
2.5 W
POWER LED
Lumen delivered up to 117 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics zoom
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
NS61
Curved
0
9°-21°
HW
2700
>90
195
<3
12
HQ
3000
>90
200
<3
31
LED nominal lumen
01
B0
C0
D0
E0
L0
M0
N0
T1
0°-90°
270°
Code example:
0 . NS61 0 . HW 12
Track Outline 24V: p.91-108
Finishes: p.56-57
Photometric data:
www.reggiani.net
