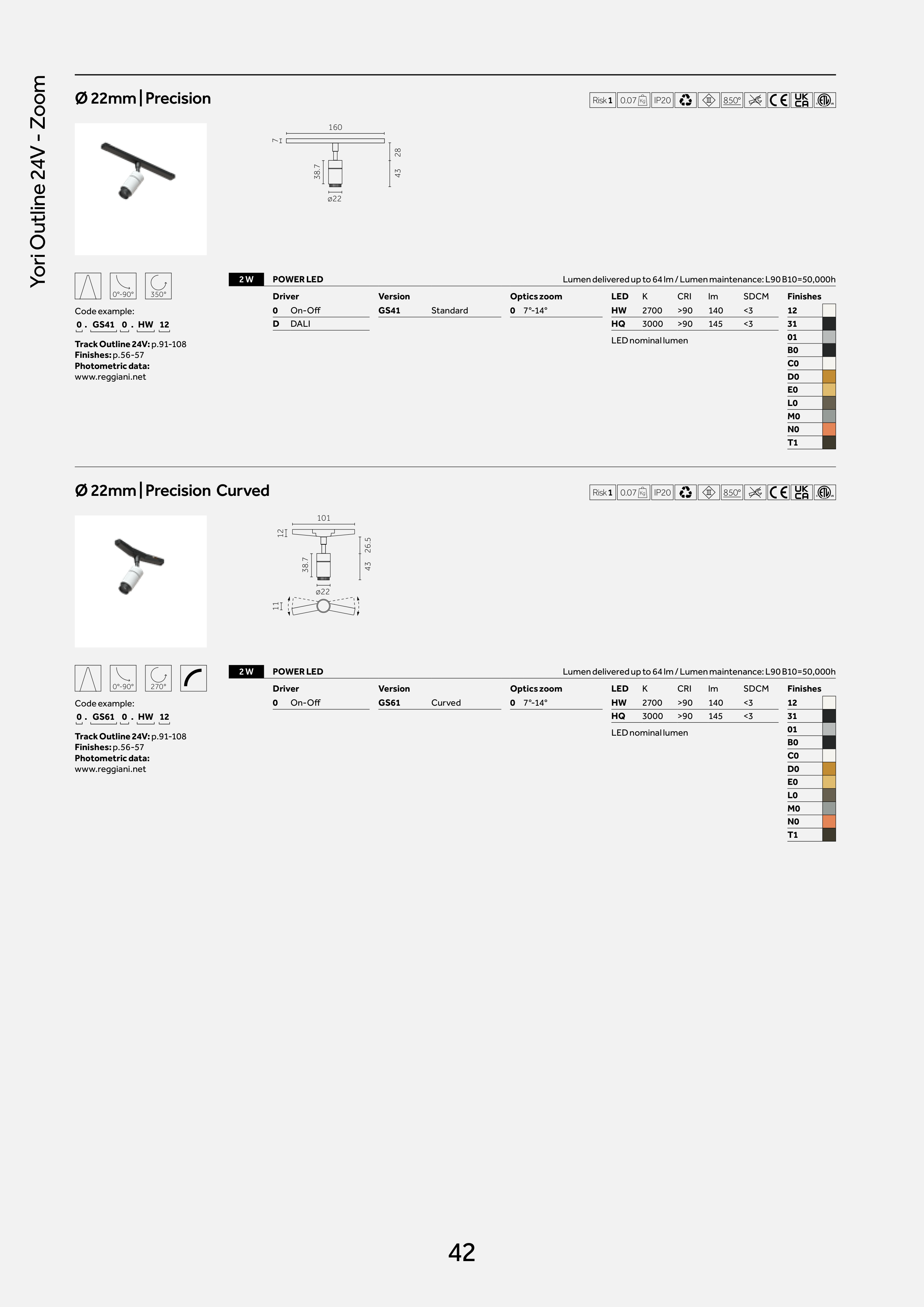

42
Yori Outline 24V - Zoom
Ø 22mm | Precision
Risk 1 0.07 Kg IP20
850°
43
ø22
38.7
28
160
7
2 W
POWER LED
Lumen delivered up to 64 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics zoom
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
GS41
Standard
0
7°-14°
HW
2700
>90
140
<3
12
D
DALI
HQ
3000
>90
145
<3
31
LED nominal lumen
01
B0
C0
D0
E0
L0
M0
N0
T1
0°-90°
350°
Code example:
0 . GS41 0 . HW 12
Track Outline 24V: p.91-108
Finishes: p.56-57
Photometric data:
www.reggiani.net
Ø 22mm | Precision Curved
Risk 1 0.07 Kg IP20
850°
12
11
43
ø22
38.7
101
26.5
2 W
POWER LED
Lumen delivered up to 64 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics zoom
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
GS61
Curved
0
7°-14°
HW
2700
>90
140
<3
12
HQ
3000
>90
145
<3
31
LED nominal lumen
01
B0
C0
D0
E0
L0
M0
N0
T1
0°-90°
270°
Code example:
0 . GS61 0 . HW 12
Track Outline 24V: p.91-108
Finishes: p.56-57
Photometric data:
www.reggiani.net
