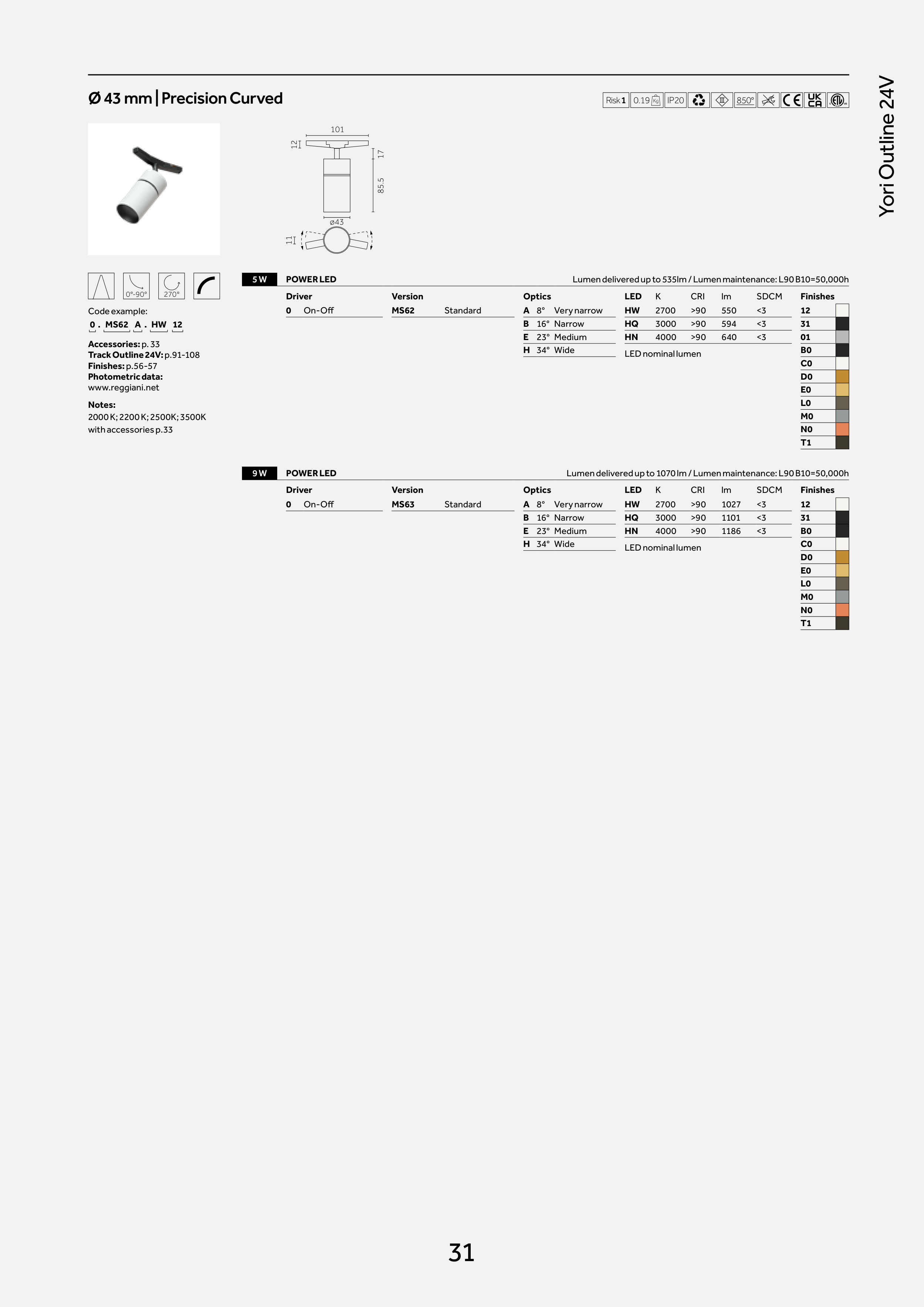

Yori Outline 24V
Ø 43 mm | Precision Curved
Risk 1 0.19 Kg IP20
850°
17
85.5
ø43
12
101
11
5 W
POWER LED
Lumen delivered up to 535lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
MS62
Standard
A 8°
Very narrow
HW
2700
>90
550
<3
12
B
16° Narrow
HQ
3000
>90
594
<3
31
E
23° Medium
HN
4000
>90
640
<3
01
H 34° Wide
LED nominal lumen
B0
C0
D0
E0
L0
M0
N0
T1
0°-90°
270°
Code example:
0 . MS62 A . HW 12
Accessories: p. 33
Track Outline 24V: p.91-108
Finishes: p.56-57
Photometric data:
www.reggiani.net
Notes:
2000 K; 2200 K; 2500K; 3500K
with accessories p.33
9 W
POWER LED
Lumen delivered up to 1070 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
MS63
Standard
A 8°
Very narrow
HW
2700
>90
1027
<3
12
B
16° Narrow
HQ
3000
>90
1101
<3
31
E
23° Medium
HN
4000
>90
1186
<3
B0
H 34° Wide
LED nominal lumen
C0
D0
E0
L0
M0
N0
T1
