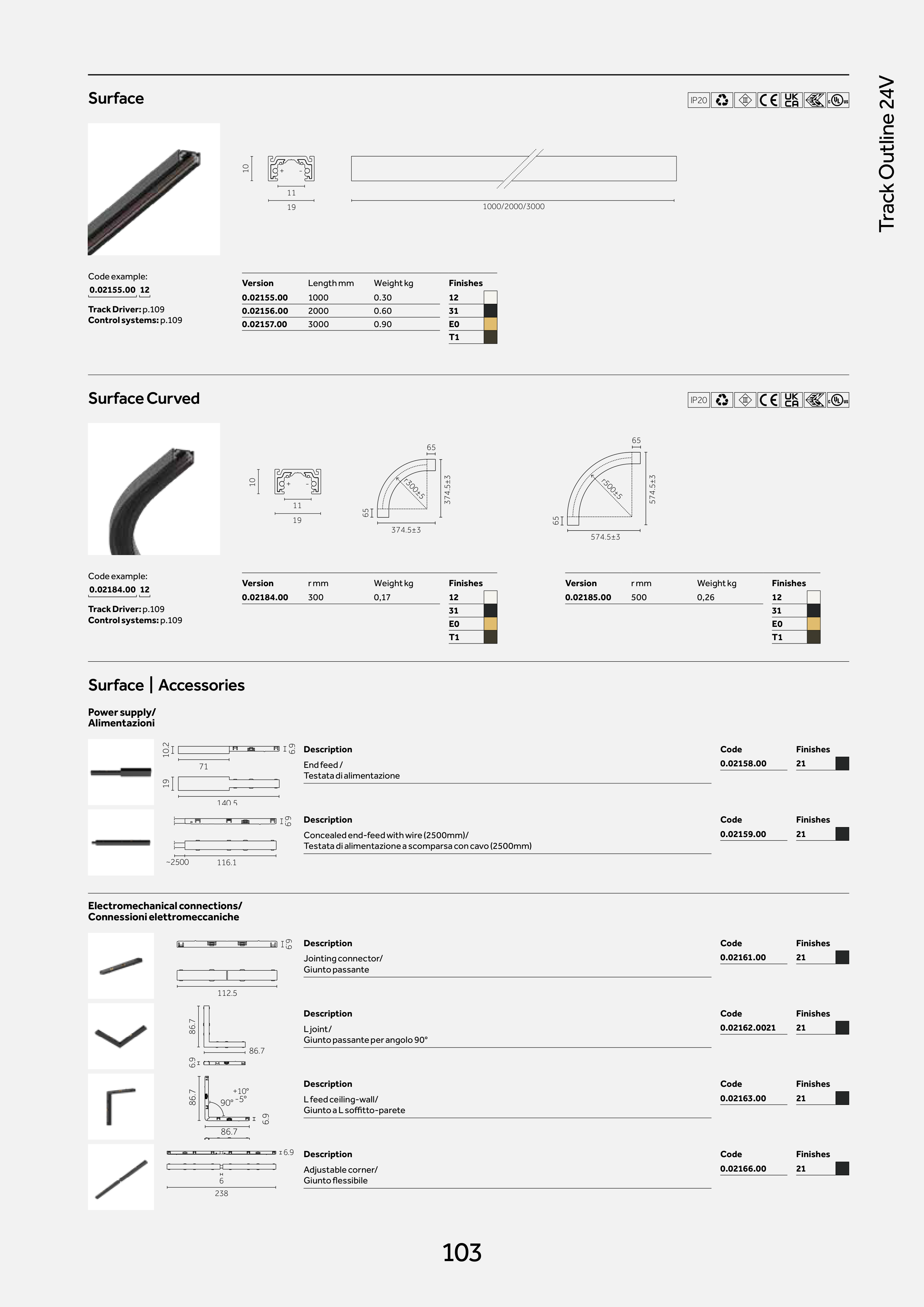

103
Track Outline 24V
Surface
IP20
-
+
10
11
19
1000/2000/3000
Version
Length mm
Weight kg
Finishes
0.02155.00
1000
0.30
12
0.02156.00
2000
0.60
31
0.02157.00
3000
0.90
E0
T1
Code example:
0.02155.00 12
Track Driver: p.109
Control systems: p.109
Surface Curved
IP20
374.5±3
65
65
374.5±3
r300±5
-
+
10
11
19
574.5±3
r500±5
574.5±3
65
65
Version
r mm
Weight kg
Finishes
0.02184.00
300
0,17
12
31
E0
T1
Code example:
0.02184.00 12
Track Driver: p.109
Control systems: p.109
Surface | Accessories
Power supply/
Alimentazioni
140.5
6.9
10.2
19
71
Description
Code
Finishes
End feed /
Testata di alimentazione
0.02158.00
21
~2500
116.1
6.9
Description
Code
Finishes
Concealed end-feed with wire (2500mm)/
Testata di alimentazione a scomparsa con cavo (2500mm)
0.02159.00
21
Electromechanical connections/
Connessioni elettromeccaniche
6.9
112.5
Description
Code
Finishes
Jointing connector/
Giunto passante
0.02161.00
21
86.7
86.7
6.9
Description
Code
Finishes
L joint/
Giunto passante per angolo 90°
0.02162.0021
21
6.9
86.7
86.7
90°
+10°
-5°
Description
Code
Finishes
L feed ceiling-wall/
Giunto a L soffitto-parete
0.02163.00
21
238
6
6.9
Description
Code
Finishes
Adjustable corner/
Giunto flessibile
0.02166.00
21
Version
r mm
Weight kg
Finishes
0.02185.00
500
0,26
12
31
E0
T1
