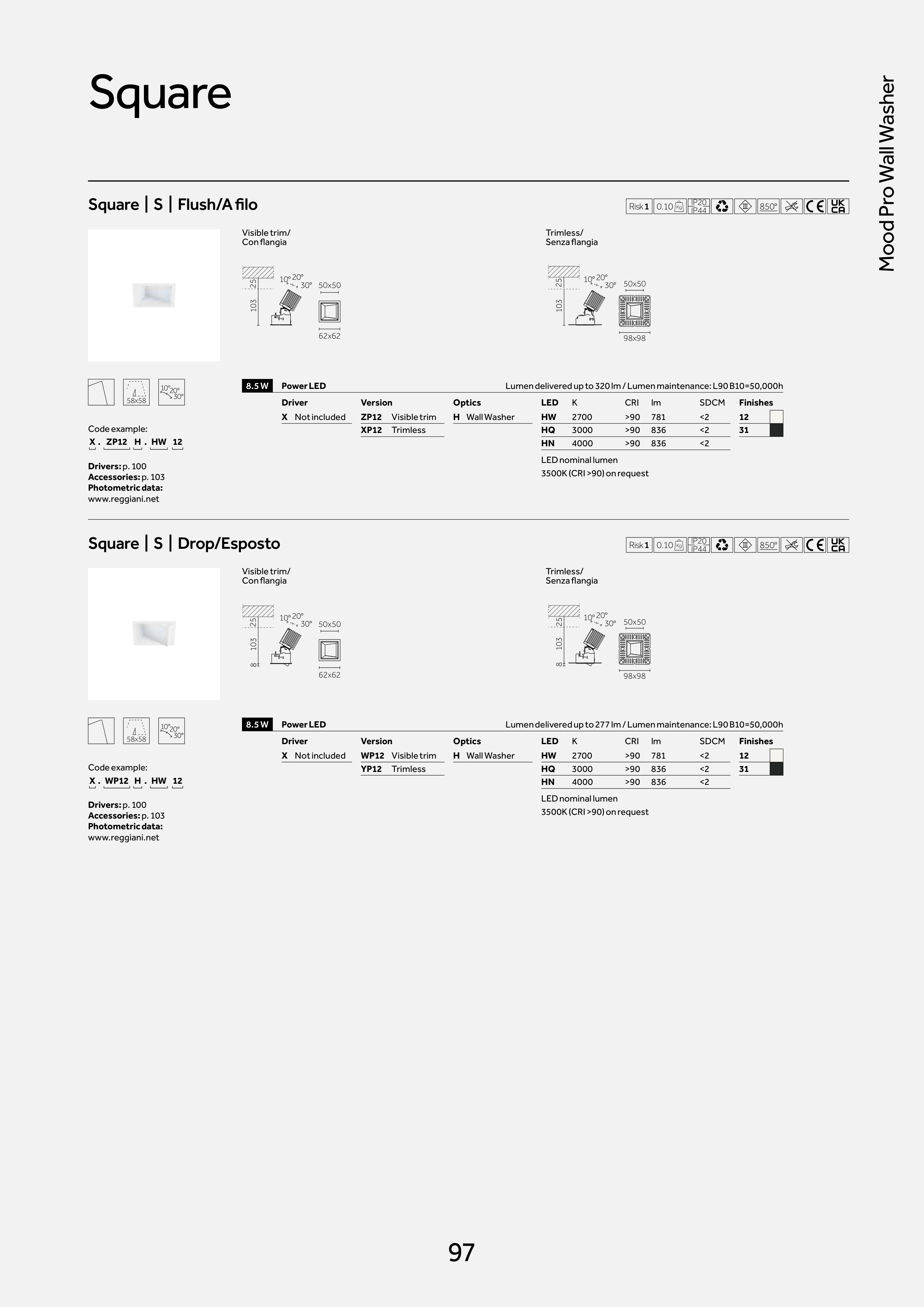

Mood Pro Wall Washer
97
Square | S | Flush/A filo
Risk 1 0.10 Kg
IP20
IP44
850°
Visible trim/
Con flangia
Trimless/
Senza flangia
103
62x62
50x50
10°20°
30°
25
103
98x98
50x50
10°20°
30°
25
58x58
10°20°
30°
Code example:
X . ZP12 H . HW 12
Drivers: p. 100
Accessories: p. 103
Photometric data:
www.reggiani.net
Square | S | Drop/Esposto
Risk 1 0.10 Kg
IP20
IP44
850°
Visible trim/
Con flangia
Trimless/
Senza flangia
103
8
62x62
50x50
10°20°
30°
25
103
8
98x98
50x50
10°20°
30°
25
58x58
10°20°
30°
Code example:
X . WP12 H . HW 12
Drivers: p. 100
Accessories: p. 103
Photometric data:
www.reggiani.net
Square
8.5 W
Power LED
Lumen delivered up to 320 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
Euro
X Not included
ZP12
Visible trim
H Wall Washer
HW
2700
>90
781
<2
12
12
119,00
XP12
Trimless
HQ
3000
>90
836
<2
31
31
119,00
HN
4000
>90
836
<2
LED nominal lumen
3500K (CRI >90) on request
8.5 W
Power LED
Lumen delivered up to 277 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
Euro
X Not included
WP12 Visible trim
H Wall Washer
HW
2700
>90
781
<2
12
12
119,00
YP12
Trimless
HQ
3000
>90
836
<2
31
31
119,00
HN
4000
>90
836
<2
LED nominal lumen
3500K (CRI >90) on request
