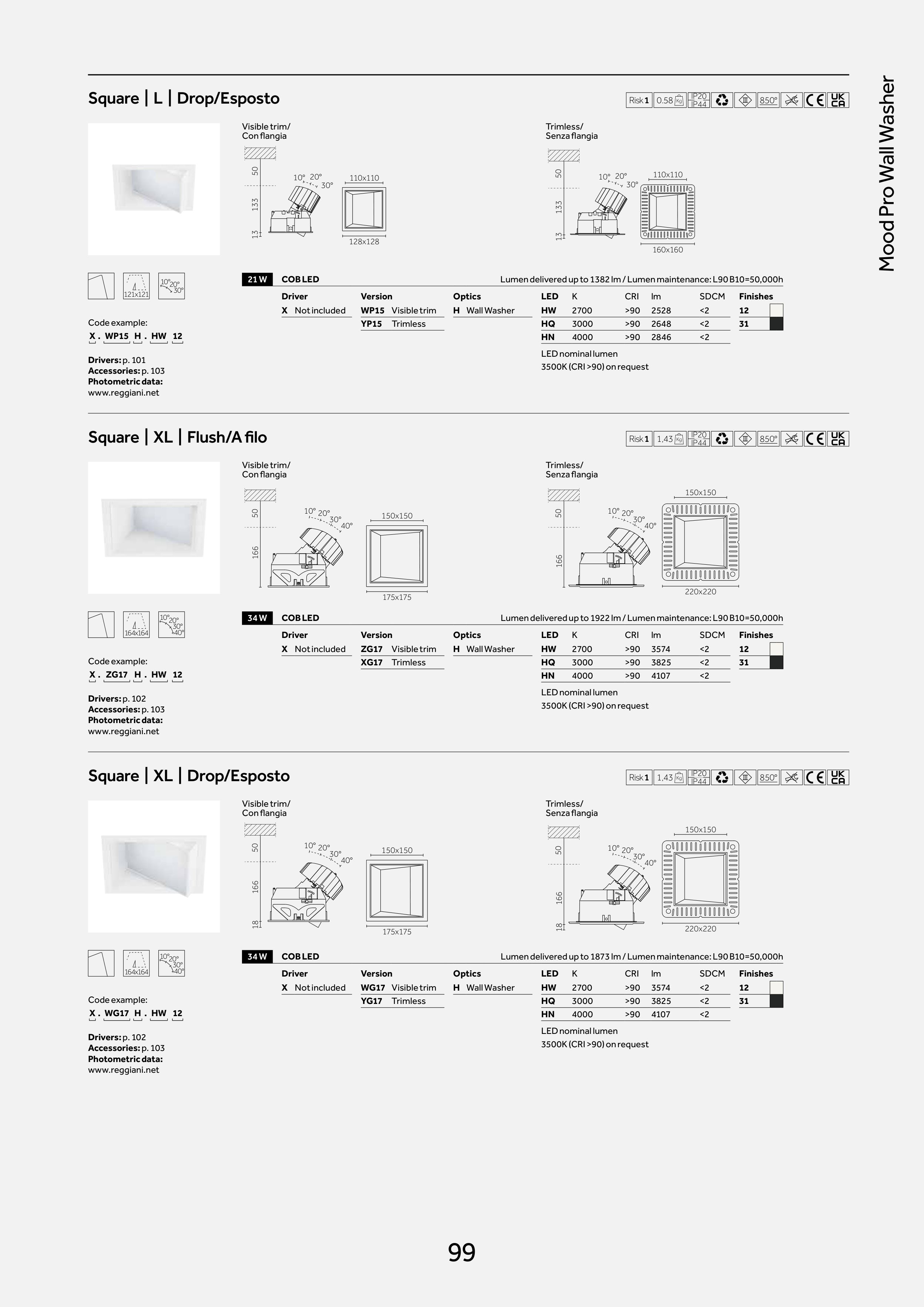

Mood Pro Wall Washer
99
Square | L | Drop/Esposto
Risk 1 0.58 Kg
IP20
IP44
850°
Visible trim/
Con flangia
Trimless/
Senza flangia
128x128
110x110
133
13
10° 20°
30°
50
160x160
110x110
133
13
10° 20°
30°
50
121x121
10°20°
30°
Code example:
X . WP15 H . HW 12
Drivers: p. 101
Accessories: p. 103
Photometric data:
www.reggiani.net
Square | XL | Flush/A filo
Risk 1 1,43 Kg
IP20
IP44
850°
Visible trim/
Con flangia
Trimless/
Senza flangia
166
175x175
150x150
10° 20°30°40°
50
166
220x220
150x150
10° 20°30°40°
50
164x164
10°20°
30°
40°
Code example:
X . ZG17 H . HW 12
Drivers: p. 102
Accessories: p. 103
Photometric data:
www.reggiani.net
164x164
10°20°
30°
40°
Code example:
X . WG17 H . HW 12
Drivers: p. 102
Accessories: p. 103
Photometric data:
www.reggiani.net
Square | XL | Drop/Esposto
Risk 1 1,43 Kg
IP20
IP44
850°
Visible trim/
Con flangia
Trimless/
Senza flangia
166
18
175x175
150x150
10° 20°30°40°
50
166
18
220x220
150x150
10° 20°30°40°
50
21 W
COB LED
Lumen delivered up to 1382 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
Euro
X Not included
WP15 Visible trim
H Wall Washer
HW
2700
>90
2528
<2
12
12
228,00
YP15
Trimless
HQ
3000
>90
2648
<2
31
31
228,00
HN
4000
>90
2846
<2
LED nominal lumen
3500K (CRI >90) on request
34 W
COB LED
Lumen delivered up to 1922 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
Euro
X Not included
ZG17
Visible trim
H Wall Washer
HW
2700
>90
3574
<2
12
12
303,00
XG17
Trimless
HQ
3000
>90
3825
<2
31
31
303,00
HN
4000
>90
4107
<2
LED nominal lumen
3500K (CRI >90) on request
34 W
COB LED
Lumen delivered up to 1873 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
Euro
X Not included
WG17 Visible trim
H Wall Washer
HW
2700
>90
3574
<2
12
12
303,00
YG17
Trimless
HQ
3000
>90
3825
<2
31
31
303,00
HN
4000
>90
4107
<2
LED nominal lumen
3500K (CRI >90) on request
