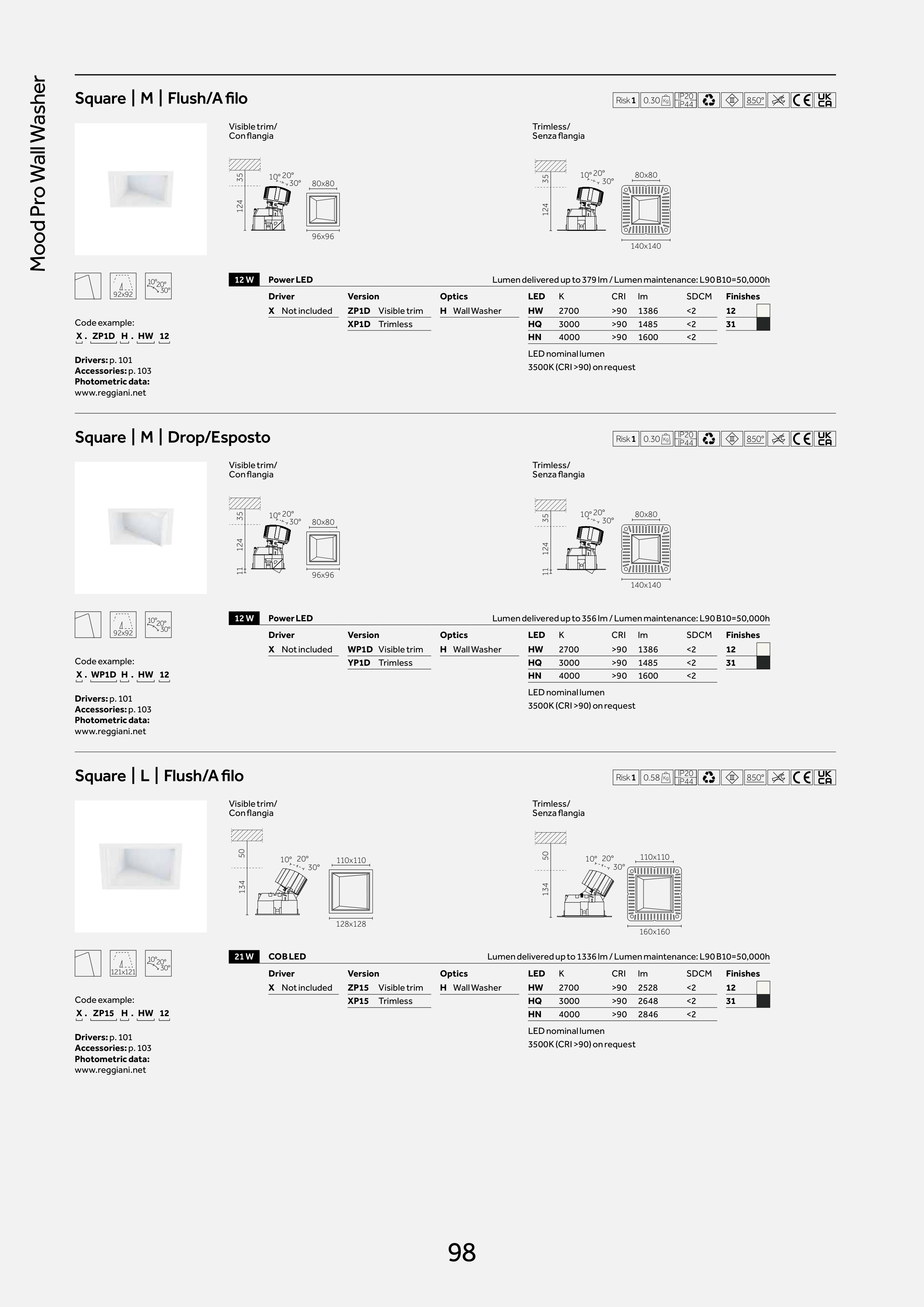

Mood Pro Wall Washer
98
Square | M | Flush/A filo
Risk 1 0.30 Kg
IP20
IP44
850°
Visible trim/
Con flangia
Trimless/
Senza flangia
124
96x96
80x80
10° 20°
30°
35
124
140x140
80x80
10°20°
30°
35
92x92
10°20°
30°
Code example:
X . ZP1D H . HW 12
Drivers: p. 101
Accessories: p. 103
Photometric data:
www.reggiani.net
92x92
10°20°
30°
Code example:
X . WP1D H . HW 12
Drivers: p. 101
Accessories: p. 103
Photometric data:
www.reggiani.net
Square | M | Drop/Esposto
Risk 1 0.30 Kg
IP20
IP44
850°
Visible trim/
Con flangia
Trimless/
Senza flangia
124
96x96
80x80
11
10° 20°
30°
35
124
140x140
80x80
11
10°20°
30°
35
Square | L | Flush/A filo
Risk 1 0.58 Kg
IP20
IP44
850°
Visible trim/
Con flangia
Trimless/
Senza flangia
128x128
110x110
134
10° 20°
30°
50
160x160
110x110
134
10° 20°
30°
50
121x121
10°20°
30°
Code example:
X . ZP15 H . HW 12
Drivers: p. 101
Accessories: p. 103
Photometric data:
www.reggiani.net
12 W
Power LED
Lumen delivered up to 379 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
Euro
X Not included
ZP1D
Visible trim
H Wall Washer
HW
2700
>90
1386
<2
12
12
167,00
XP1D
Trimless
HQ
3000
>90
1485
<2
31
31
167,00
HN
4000
>90
1600
<2
LED nominal lumen
3500K (CRI >90) on request
12 W
Power LED
Lumen delivered up to 356 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
Euro
X Not included
WP1D Visible trim
H Wall Washer
HW
2700
>90
1386
<2
12
12
167,00
YP1D
Trimless
HQ
3000
>90
1485
<2
31
31
167,00
HN
4000
>90
1600
<2
LED nominal lumen
3500K (CRI >90) on request
21 W
COB LED
Lumen delivered up to 1336 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
Euro
X Not included
ZP15
Visible trim
H Wall Washer
HW
2700
>90
2528
<2
12
12
228,00
XP15
Trimless
HQ
3000
>90
2648
<2
31
31
228,00
HN
4000
>90
2846
<2
LED nominal lumen
3500K (CRI >90) on request
